Concord CXA/H - Installation and Servicing
5
GENERAL
POSITION OF BOILER
Minimum clearances required
from walls or other fixed objects
to allow for the free access of
combustion air are shown in
Table 3 above.
However, for maintenance
purposes we suggest a
minimum rear clearance of
50mm.
Any combustible material
adjacent to the boiler and its
flue system must be so placed
or shielded as to ensure that
its temperature does not
exceed 65
o
C (150
o
F).
MULTIPLE BOILER INSTALLATIONS
The minimum installation clearances must conform to the
dimensions given below:
CXA 40/H, 50/H, 60/H, 70/H & 80/H
Clearance between boilers = 50mm
Clearance at both ends of the multiple installation = 50mm*

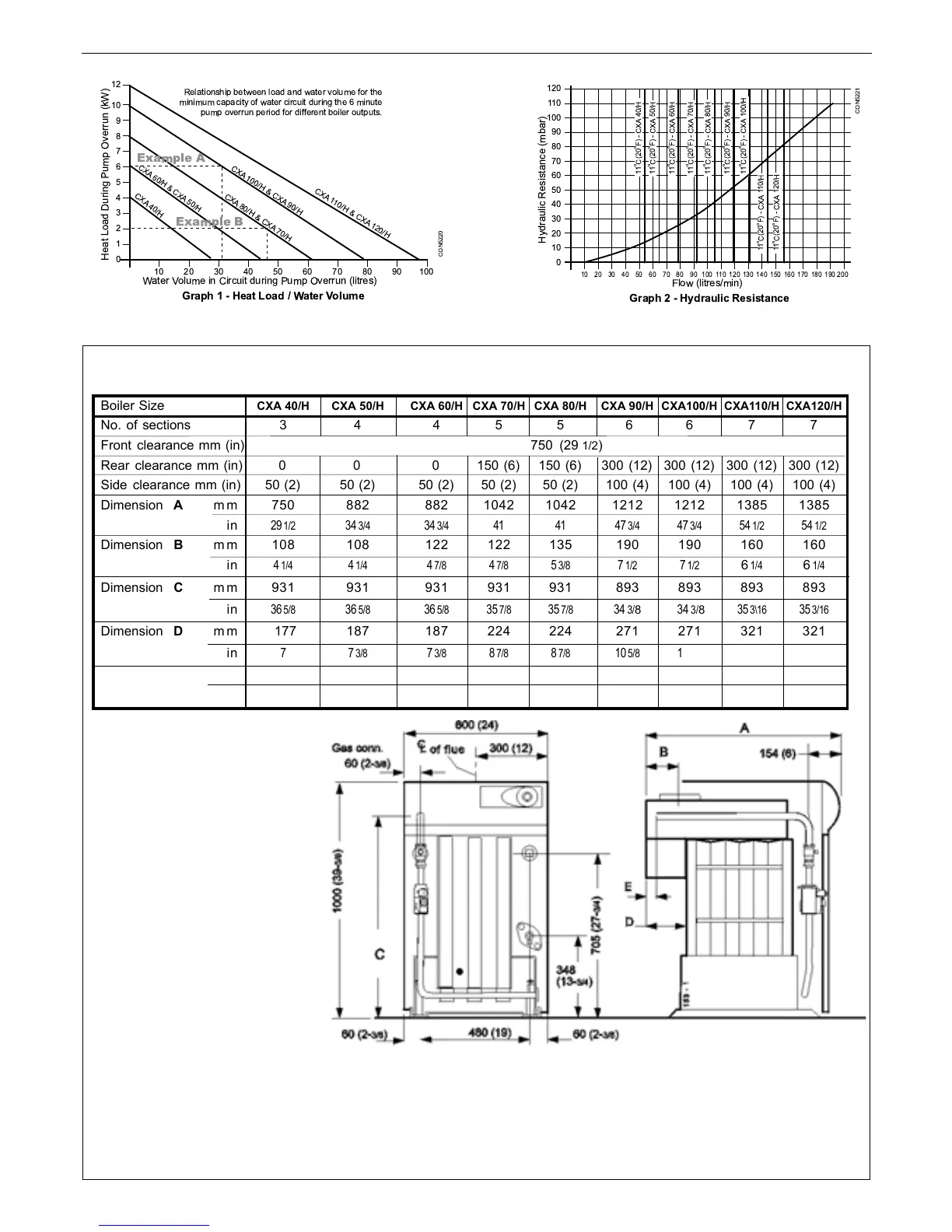

2 CLEARANCES & DIMENSIONS
Table 3
CXA 90/H, 100/H, 110/H & 120/H
Clearance between boilers = 100mm
Clearance at both ends of the multiple installation = 100mm*
Rear clearance: sufficient clearance should be given at the rear
of the boiler for connection of gas and water pipework.
*Additional clearance is required for access at either end of the
installation.
10
9
8
7
6
5
4
3
2
1
0
10 20 30 40 50 60 70 80 90 100
12
CON5220
Example A
Example B
CXA 100/H & CXA 90/H
CXA 80/H & CXA 70/H
CXA 40/H
CXA 60/H & CXA 50/H
Heat Load During Pump Overrun (kW)
Water Volume in Circuit during Pump Overrun (litres)
Relationship between load and water volume for the
minimum capacity of water circuit during the 6 minute
pump overrun period for different boiler outputs.
Graph 1 - Heat Load / Water Volume
CXA 110/H & CXA 120/H
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 190 200160 170 180
120
110
100
90
80
70
60
50
40
30
20
10
0
Graph 2 - Hydraulic Resistance
Hydraulic Resistance (mbar)
Flow (litres/min)
11
o
C(20
o
F) - CXA 40/H
11
o
C(20
o
F) - CXA 50/H
11
o
C(20
o
F) - CXA 60/H
11
o
C(20
o
F) - CXA 70/H
11
o
C(20
o
F) - CXA 80/H
11
o
C(20
o
F) - CXA 90/H
11
o
C(20
o
F) - CXA 100/H
11
o
C(20
o
F) - CXA 110/H
11
o
C(20
o
F) - CXA 120/H
CON5221
Boiler Size CXA 40/H CXA 50/H CXA 60/H CXA 70/H CXA 80/H CXA 90/H CXA100/H CXA110/H CXA120/H
No. of sections 3 4 4 5 5 6 6 7 7
Front clearance mm (in) 750 (29 1/2)
Rear clearance mm (in) 0 0 0 150 (6) 150 (6) 300 (12) 300 (12) 300 (12) 300 (12)
Side clearance mm (in) 50 (2) 50 (2) 50 (2) 50 (2) 50 (2) 100 (4) 100 (4) 100 (4) 100 (4)
Dimension A m m 750 882 882 1042 1042 1212 1212 1385 1385
in
29 1/2 34 3/4 34 3/4 41 41 47 3/4 47 3/4 54 1/2 54 1/2
Dimension B m m 108 108 122 122 135 190 190 160 160
in 4 1/4 4 1/4 4 7/8 4 7/8 5 3/8 7 1/2 7 1/2 6 1/4 6 1/4
Dimension C m m 931 931 931 931 931 893 893 893 893
in
36 5/8 36 5/8 36 5/8 35 7/8 35 7/8 34 3/ 8 34 3/ 8 35 3\16 35 3/16
Dimension D m m 177 187 187 224 224 271 271 321 321
in 77 3/8 7 3/8 8 7/8 8 7/8 10 5/8 10 5/8 12 5/8 12 5/8
Dimension E m m 69 79 79 116 116 163 163 213 213
in 2 3/4 3 1/8 3 1/8 4 5/8 4 5/8 6 1/2 6 1/2 8 3/8 8 3/8
