10
Concord CXi - Installation
5

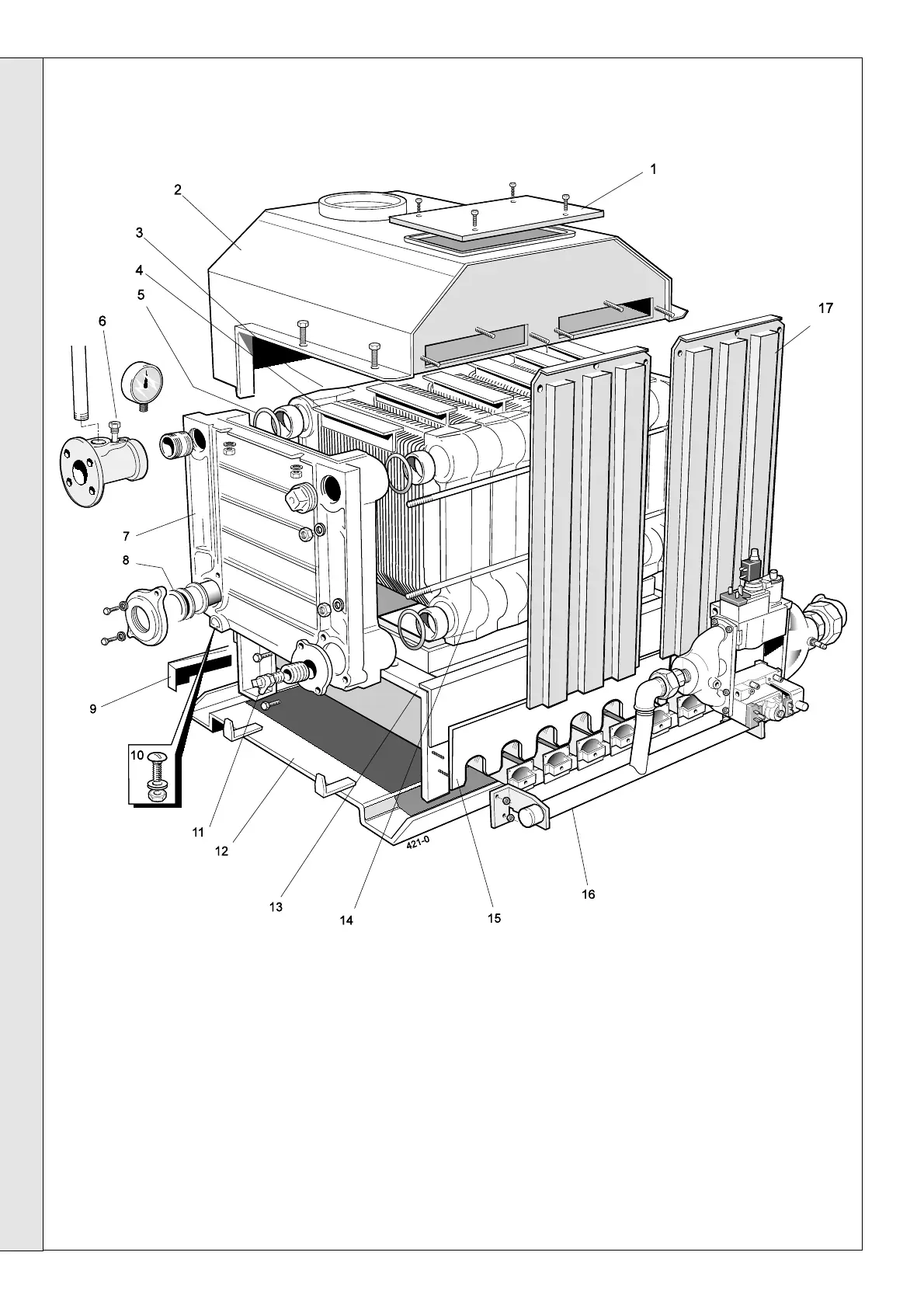

CONCORD CXi BOILER ASSEMBLY - Exploded view
Legend
1. Cleanout cover.
2. Collector hood.
3. Middle section.
4. Flueway baffles.
5. Section alignment rings & 'O' rings.
6. Thermostat pocket.
INSTALLATION
INSTALLATION
13. Combustion chamber.
14. Tie rods.
15. Lightback shield.
16. Burner manifold assy.
17. NOx duct.
18. Gas cock (not shown).
7. End section.
8. Distribution tube.
9. Downdraught deflector.
10. Section bolt.
11. Drain cock.
12. Base plate.
