Concord CXi - Installation
13
CONTROL BOX - continued

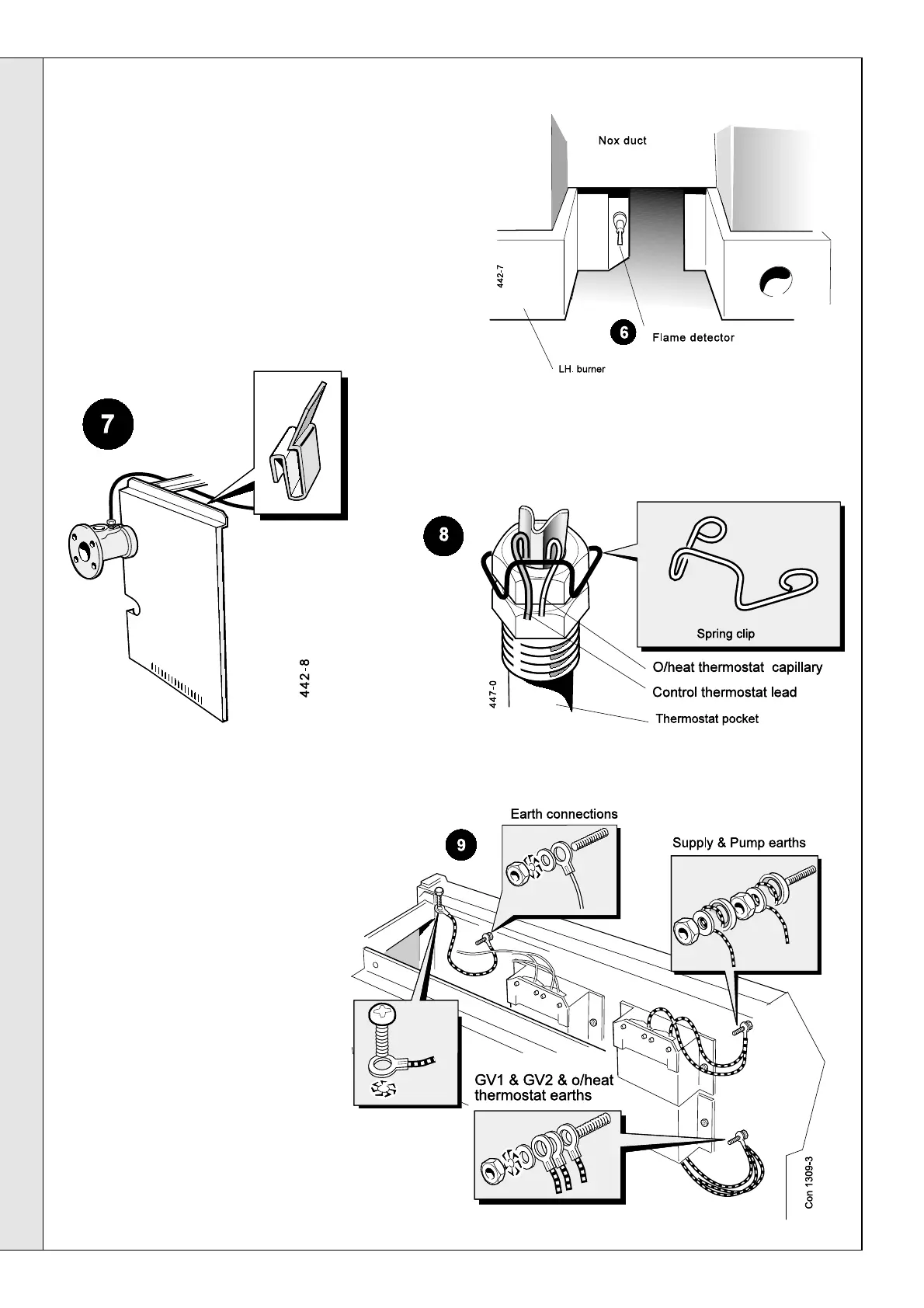

6. Run the flame detector lead through the clips on the
front of the combustion chamber base tray and plug it
into the flame detector electrode on the LH end burner.
Ensure that any slack is tucked neatly into the clips
then fasten the clips.
7. Unstrap the thermostat sensor lead and run both the
sensor and the overheat thermostat phial through the
clips on the appropriate casing side panel to the flow
header, ensuring that both leads run under the support
angle.
8. Secure both phials into the thermostat pocket in the
flow header, using the spring clip.
9. Fit the earths lead as shown in the
illustration.
10. Fit the casing upper front panel with
its location buttons in the slots and
push down to locate. Fasten at the
bottom, using the No.8 screws.
11. Fit the casing lower front panel by
locating its slots over the shoulder
screws in the side panels and
pushing down to locate.
