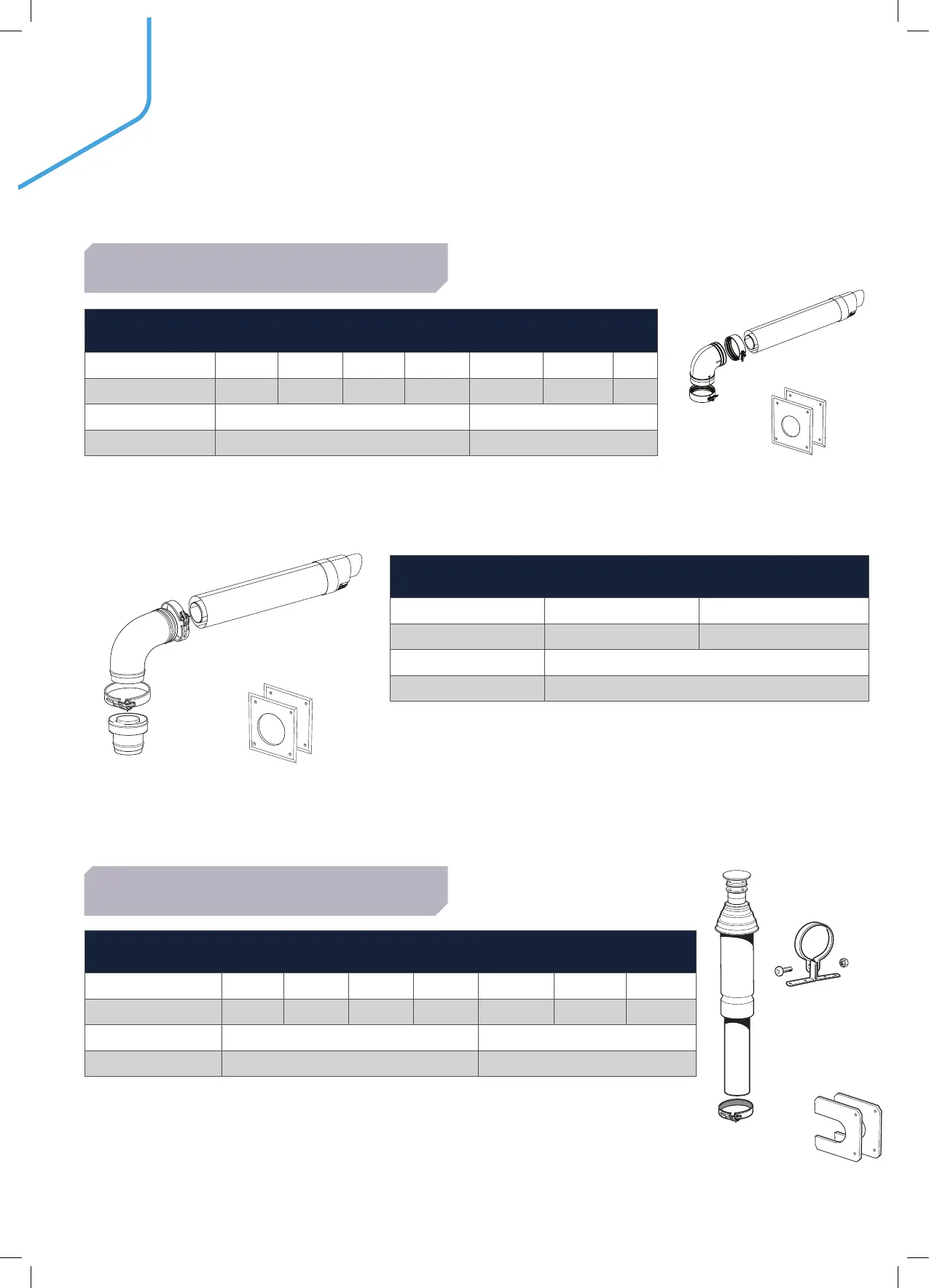

CONCENTRIC FLUE OPTIONS (C TYPE)
EVOMAX 2 HORIZONTAL CONCENTRIC FLUE APPLICATION ~ MAXIMUM LENGTHS
AND PRESSURE DIFFERENTIALS
Model 30/30P 40/40P 60/60P 80/80P 100/100P 120/120P 150
Max flue length (m) 33 30 17.5 10 10 9 6
Flue Size 80/125 100/150
Wall flue kit No 220919 220921
EVOMAX 2 VERTICAL CONCENTRIC FLUE APPLICATION ~ MAXIMUM LENGTHS AND
PRESSURE DIFFERENTIALS
Model 30/30P 40/40P 60/60P 80/80P 100/100P 120/120P 150
Max flue length (m) 33 30 17.5 10 10 9 6
Flue Size 80/125 100/150
Wall flue kit No 220915 220918
EVOMAX 2 60 & 80 HORIZONTAL CONCENTRIC FLUES
OF LONGER LENGTHS (LARGER FLUE DIAMETER)
Model 60/60P 80/80P
Max flue length (m) 28 18
Flue Size 100/150
Wall flue kit No 220920
CONTENTS
• 90° elbow
• Terminal
• Locking collars (x2)
• Wall plates (x2)
CONTENTS
• Increaser
• 90° elbow
• Terminal
• Locking collars (x2)
• Wall plates (x2)
CONTENTS
• Terminal
• Locking Collar
• Finishing plates (x2)
• Bracket
To comply with CE certification, Evomax boilers must be fitted with
Ideal concentric flues (when using concentric flue type).
HORIZONTAL WALL FLUE KIT
VERTICAL ROOF FLUE KIT
