IDEAL EVOMAX 2 100 Product & Flue Guide

32
*Appliance fan also downstream of draught diverter
Where 2 or more gas fired boilers are connected to a common natural draught flue, the boilers must be
installed in the same room and have the same type of burner system. A gas fired boiler and a solid fuel or
biomass boiler must not discharge into the same flue. A gas fired boiler and a liquid fired fuel boiler can
discharge into the same flue providing they are both installed in the same room and are force draught.
Appliance type Primary definition Natural draught or fan draught
C type
Room sealed
Natural draught
Fan down
stream of heat
exchanger
Fan upstream of
heat exchanger
C1- appliances with a horizontal balanced flue/
inlet air ducts to outside atmosphere.
C11* C12 C13*
C2 – appliance flue connects to a common duct
system for multi-appliance installations (the
common duct system is part of the building)
C21 C22 C23
C 3 - appliance with vertical balanced flue/inlet
air ducts to outside atmosphere.
C31 C32* C33*
C4 – appliance with flue system that connects to
a common duct system e.g. ‘U’ duct flue system.
C41 C42 C43
C5 – appliance with a non-balanced flue/inlet air
duct system.
C51 C52 C53
C6 – appliance sold without a flue system C61 C62 C63
C7 – appliance connected to a vertical flue to
outside atmosphere with the air ducts in the loft
(vertex)
C71 C72 C73
C8- appliance with a non-balanced flue system
with an air supply from outside atmosphere and
flued into a common duct system.
C81 C82 C83

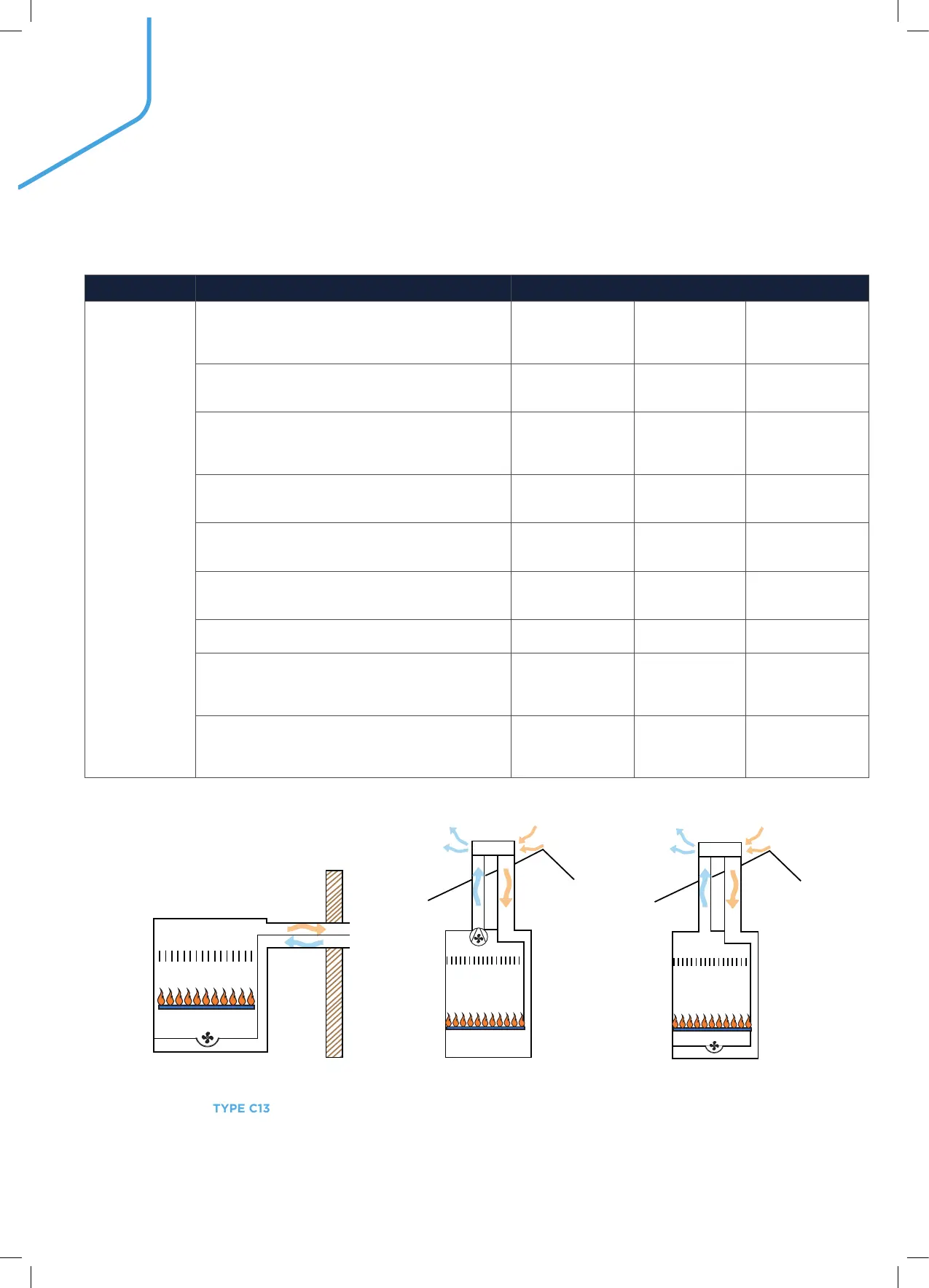

TYPE C13 TYPE C32
TYPE C33
TYPE C13 TYPE C32
TYPE C33
TYPE C13
TYPE C32
TYPE C33
TYPE C13
TYPE C32
TYPE C33
TYPE C13 TYPE C32
TYPE C33
