IDEAL EXALT Combi 199

12” Min. - 24” Max.
[ 30.5 cm - 61 cm]
From Wall To Vent
12" [30.5 cm] Min. Above Grade / Highest
Anticipated Snow Level
12" Max.
[30.5 cm]
12" Min.
[30.5 cm]
12" Min. 24
" Max.
[30.5 cm - 61 cm]
1" [2.5 cm]
From Wall To Edge
of Coupling - Air
Combustion Air
Termination
Vent Termination
Combustion Air
Termination
12" Min. - 24” Max.
[30.5 - 61 cm]
From Wall to Vent
1" [2.5 cm]
From Wall To Edge
of Coupling - Air
12" [30.5 cm] Min.
Above Grade / Highest
Anticipated Snow Level
12" Min.
[30.5 cm] Typ.
12" Min - 24” Max.
[30.5 cm - 61 cm]
Vent Termination
Combustion Air
Termination
Vent
Termination
12" Min.[30.5 cm]
Horizontally
from Vent to Air
1" [2.5 cm]
From Wall To Edge
of Coupling - Air
12” Min. - 24” Max.
[ 30.5 cm - 61 cm]
From Wall To Vent
12" Min.
[30.5 cm]
12" Min. [30.5 cm ]
Above Grade/Highest
Anticipated Snow Level
17
CHAPTER 2
CHAPTER 2 - DIRECT VENT INSTALLATION OF VENT/AIR PIPING

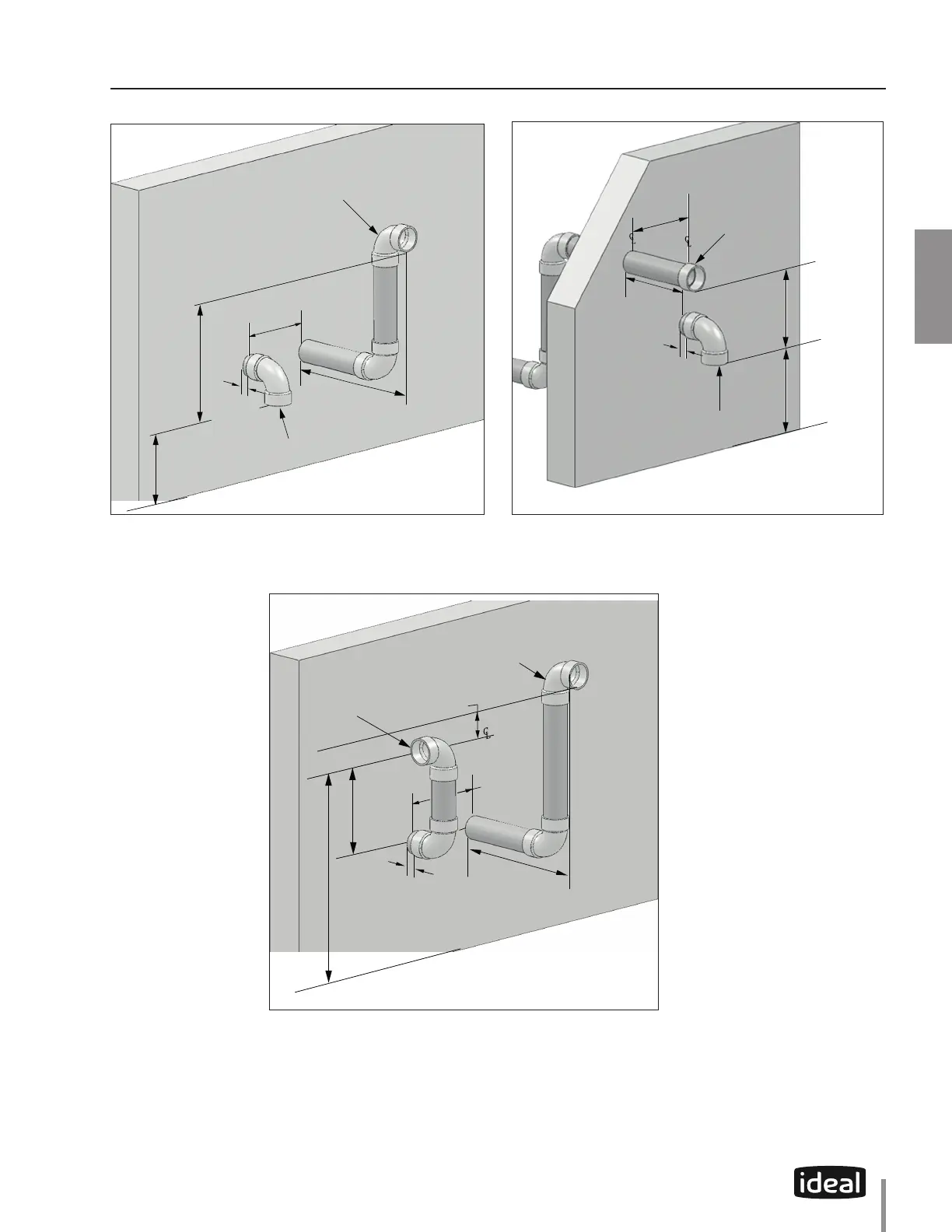

Fig. 6 - Direct Vent - Sidewall Termination of Vent and Combustion
Air Piping
Fig. 7 - Direct Vent - Alternate Sidewall Termination of Vent and
Combustion Air Piping
Fig. 8- Direct Vent - Sidewall Snorkel Termination of Vent and
Combustion Air Piping
