Servicing
1. Refer to Frame 51.
2. Remove the boiler front panels and inner sealing panel.
Refer to Frames 44 and 45.
3. 
4. Pull off the electrical connection.
5. Unscrew and withdraw the thermistor.
6. Fit the new thermistor, using the gasket supplied.
7. Reassemble in reverse order.
8. Check operation of the boiler. Refer to Frame 51.
1. Refer to Frame 51.
2. Remove the boiler front panels and inner sealing panel

3. Pull off the 2 electrical leads from the thermostat body.
4. Remove the 2 screws retaining the O/H thermostat.
5. Fit the new thermostat, and reconnect leads
6. Reassemble in reverse order.
7. Check operation of the boiler. Refer to Frame 51.

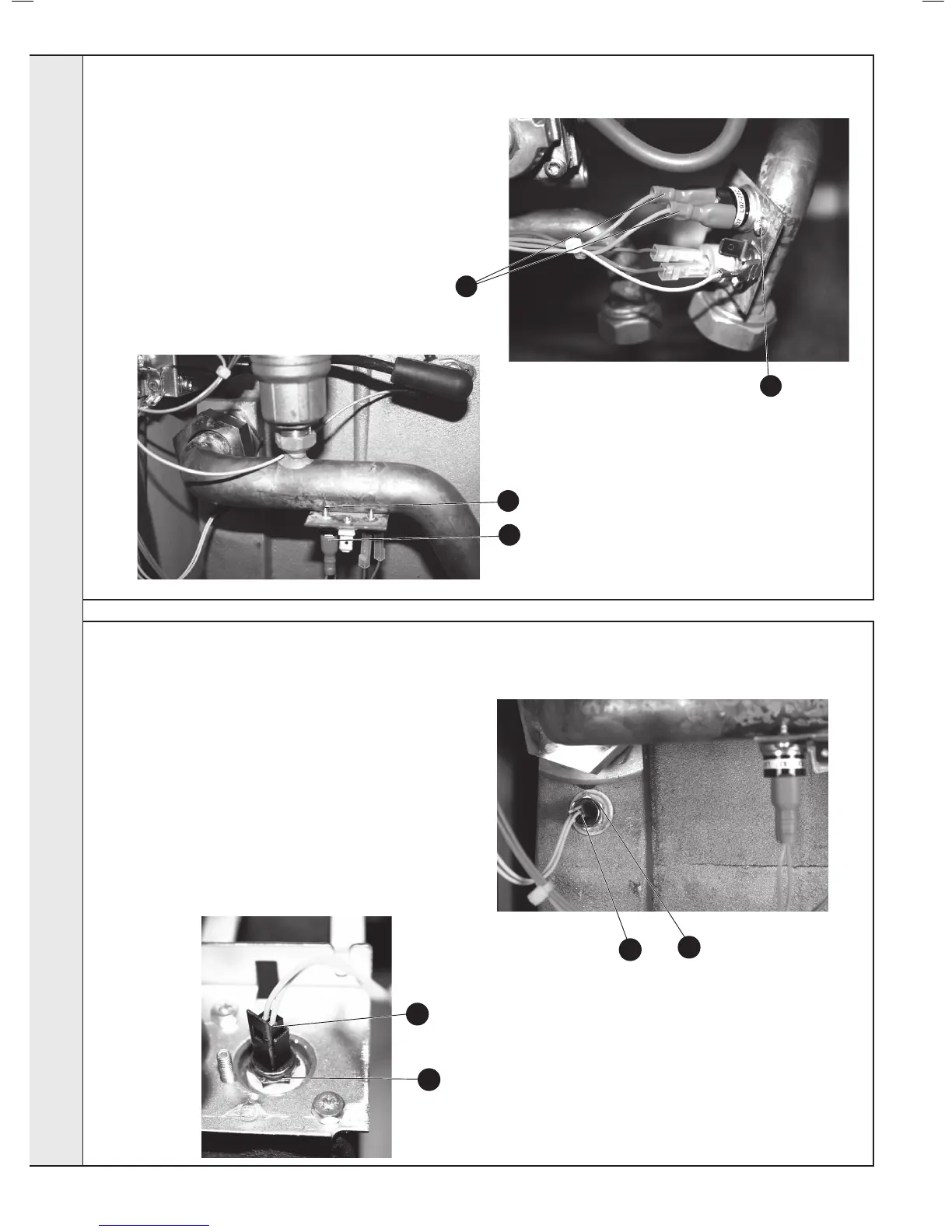

63 OVERHEAT THERMOSTAT REPLACEMENT
64 DRY FIRE THERMISTOR REPLACEMENT
