10
Esprit - Installation and Servicing
GENERAL
2

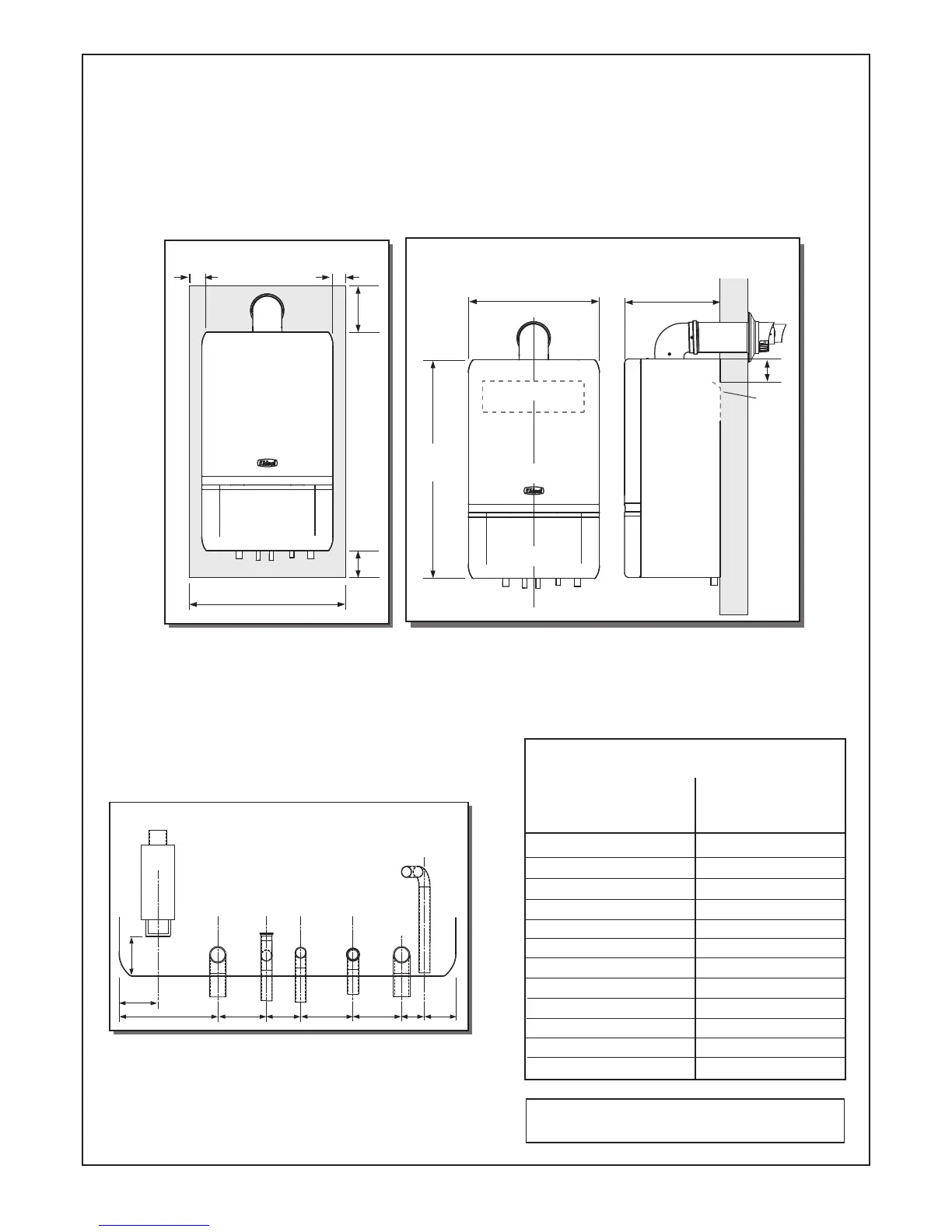

BOILER DIMENSIONS, SERVICES & CLEARANCES
all dimensions in mm
The boiler connections are made on the boiler. Refer to
Frames 30.
The following minimum clearances must be maintained for
operation and servicing.
Additional space will be required for installation, depending
upon site conditions.
Front clearance - The minimum front clearance when built in to a cupboard is 5mm from the cupboard door but 450mm
overall clearance is still required, with the cupboard door open, to allow for servicing.
* Bottom clearance - Bottom clearance after installation can be reduced to 5mm. However, 200mm must be available for
servicing.
REAR FLUE ONLY
MIN. Top clearance required = 160 mm
SIDE FLUE ONLY
Horizontal length of flue Top clearance
from centre line of boiler required (MIN.)
to outside wall Dim. A
HE24 HE30 HE35
0.5 m 0.5 m 0.5 m 160 mm
1.0 m 1.0 m 1.0 m 170 mm
1.5 m 1.5 m 1.5 m 185 mm
2.0 m 2.0 m 2.0 m 200 mm
2.5 m 2.5 m 2.5 m 210 mm
3.0 m 3.0 m 3.0 m 225 mm
3.5 m 3.5 m N/A 250 mm
4.0 m 4.0 m N/A 260 mm
4.5 m 4.5 m N/A 265 mm
5.0 m 5.0 m N/A 275 mm
5.5 m 5.5 m N/A 290 mm
6.0 m 6.0 m N/A 300 mm
Side and Rear Flue
Provided that the flue hole is cut accurately, e.g. with a core drill,
the flue can be installed from inside the building where wall
thicknesses do not exceed 600mm. Where the space into which
the boiler is going to be installed is less than the length of flue
required the flue must be fitted from the outside.
esp8820
PRV
CH Return
DHW In
Gas
DHW Out
CH Flow
Condensate
Drain
4465704665
49
53
129 31
WATER AND GAS CONNECTIONS
450
460
55
330
64mm
Wall
Mounting
Plate
750
BOILER DIMENSIONS
CLEARANCES
200*
160
