33
INSTALLATION
Esprit - Installation and Servicing
36

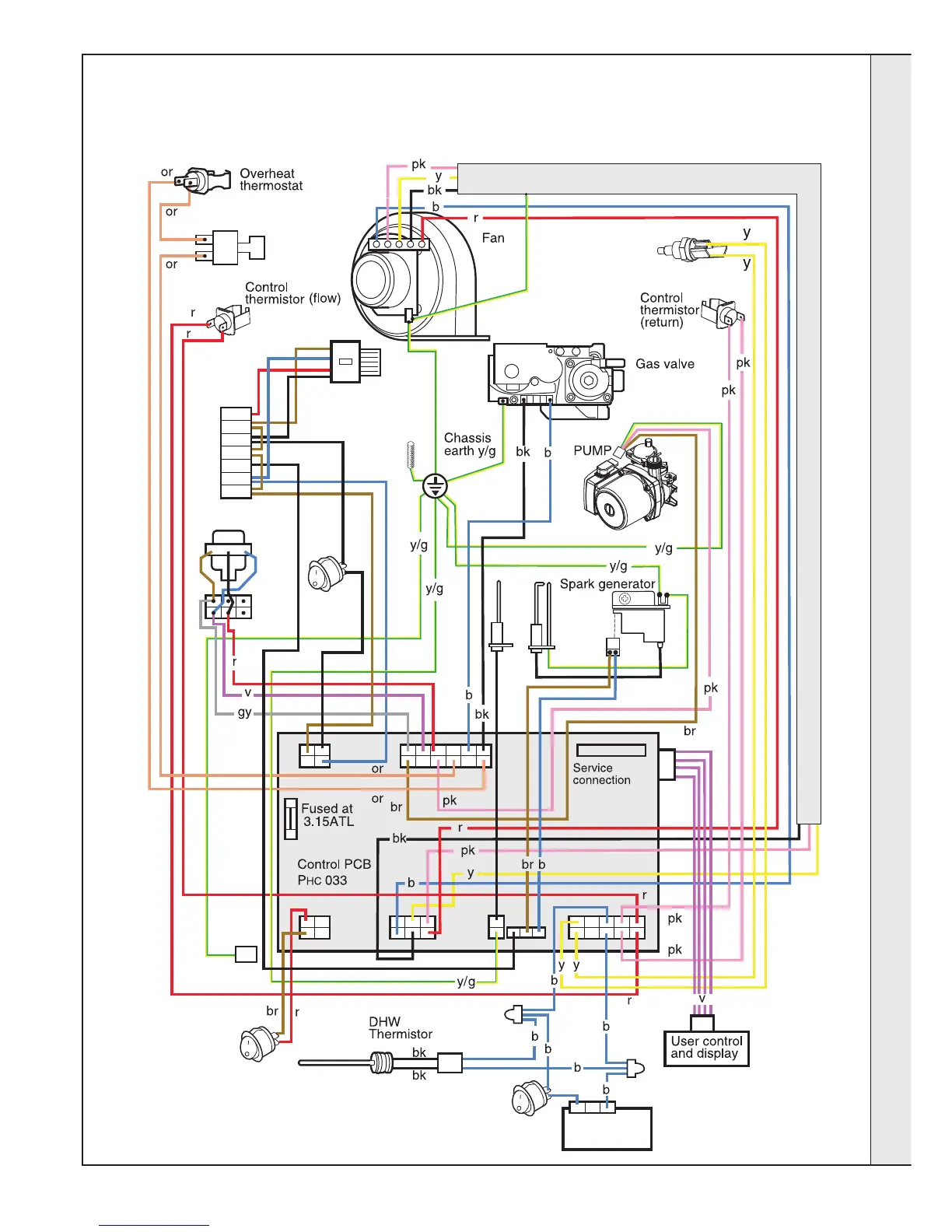

PICTORIAL WIRING DIAGRAM
LEGEND
b-blue
bk - black
br - brown
gy - grey
or - orange
pk - pink
r-red
DHW preheat
switch
DHW flow
switch
esp9267
Dry fire
thermistor
Diverter
Valve
br
b
b
bk
r
bk
123
br
w
y/g
y/g
ON/OFF
switch
EMI
screen
summer/
winter
switch
Prog. connection
(Optional)
Mains
Supply
Water pressure
switch
Supply earth
stud
(Ctrls. assy)
R3
R2
R1
F2
F1
N
L
v-violet
w-white
y-yellow
y/g - yellow/green
INSTALLATION
