INSTALLATION
Esprit - Installation and Servicing

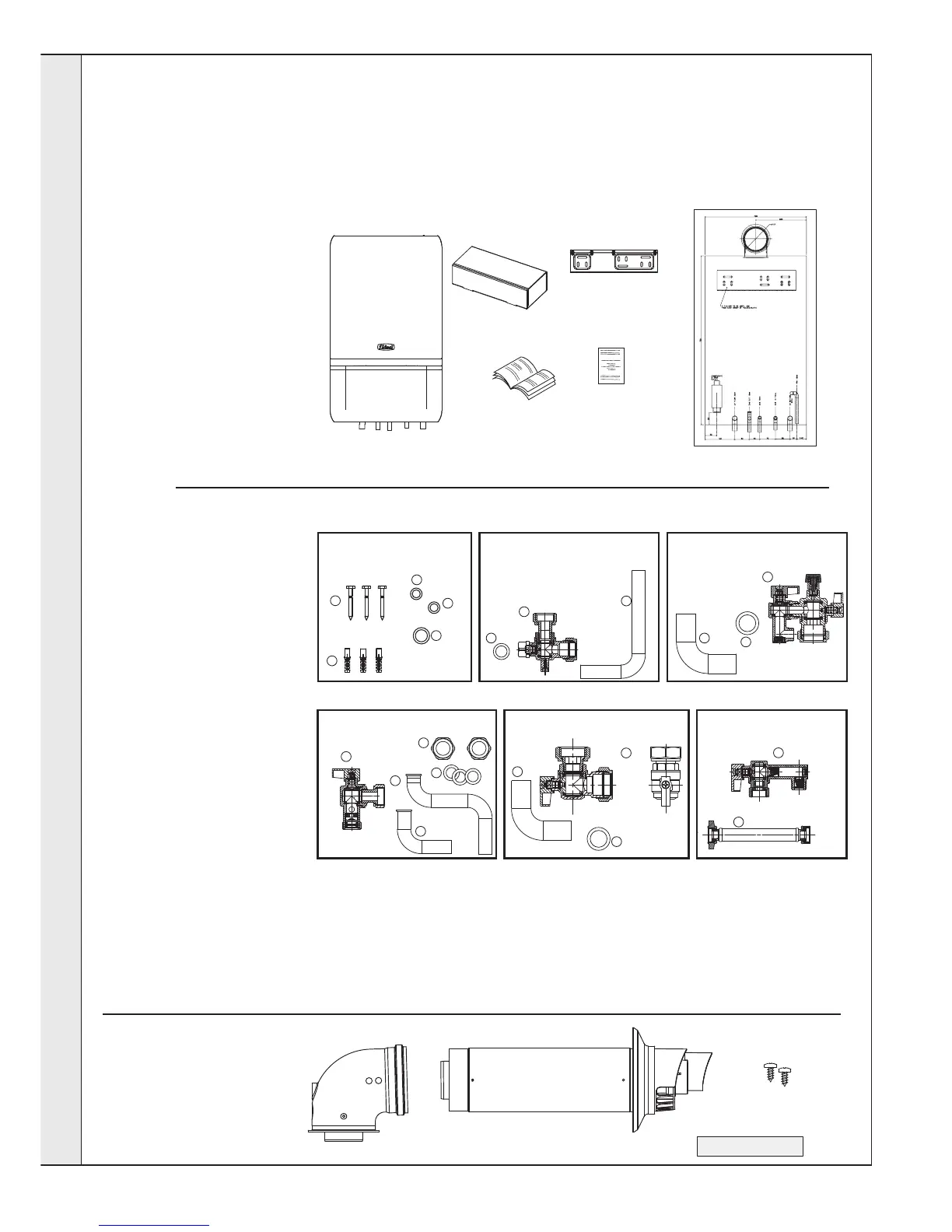

9 UNPACKING
The boiler is supplied fully assembled in one Pack A, together with a telescopic flue
assembly for lengths up to 595mm, rear or side flue outlet, in Pack B.
Unpack and check the contents.
Pack A Contents
A Boiler
B Hardware Pack Box
(positioned at bottom of boiler)
C Wall Mounting Bracket
(positioned at bottom of boiler)
D Installation/Users
Instructions
E Wall Mounting Template
F 2 Year Guarantee
PACK B CONTENTS
A Telescopic flue terminal
B Flue turret
C Screws
D Sealing tape
nm8751
A
B
C
D
B
C
E
A
D
F
esp8821
Flow Valve Pack Filling Loop PackDHW Pack
Accessory Pack
1. Screws x 3
2. Wall Plugs x3
3. 1/2" Fibre washer (spare) x 1
4. 1/2" Gas washer (blue) (spare) x 1
5. 3/4" Fibre washer (spare) x 1
Gas Pack
1. Gas Cock x 1
2. 1/2" Gas washer (blue) x 1
3. Gas Inlet Bend 15mm x 1
Return Valve Pack
1. Return Valve Assembly c/w drain
2. Outlet bend 22mm
3. Fibre Washer
Flow Valve Pack
1. Outlet bend 22mm x 1
2. 22mm CH valve,
nut & olive x 1
3. 3/4" Fibre washer x 1
DHW Pack
1. Pipe DHW outlet x 1
2. 15mm valve c/w nut & olive
& flow regulator x 1
3. Inlet bend 15mm x 1
4. Nut G1/2 x 2
5. 1/2" Fibre washer x 3
Filling Loop Pack
1. Isolating valve c/w double non return valve x 1
2. Flexible Hose x 1
1
3
2
1
3
1
1
3
2
2
2
4
1
3
2
4
5
1
2
3
5
Gas Pack Return Valve PackAccessory Pack
esp9262
HARDWARE PACK CONTENTS
INSTALLATION

IDEAL he30 Specifications

General

Height	700 mm
Output	30 kW
Warranty	2 years
Boiler type	Combi
Mounting	Wall-mounted
Fuel Type	Natural Gas
ErP Water Heating Efficiency	A
Type	Combi Boiler
Efficiency	89%
