SERVICING
Esprit - Installation and Servicing

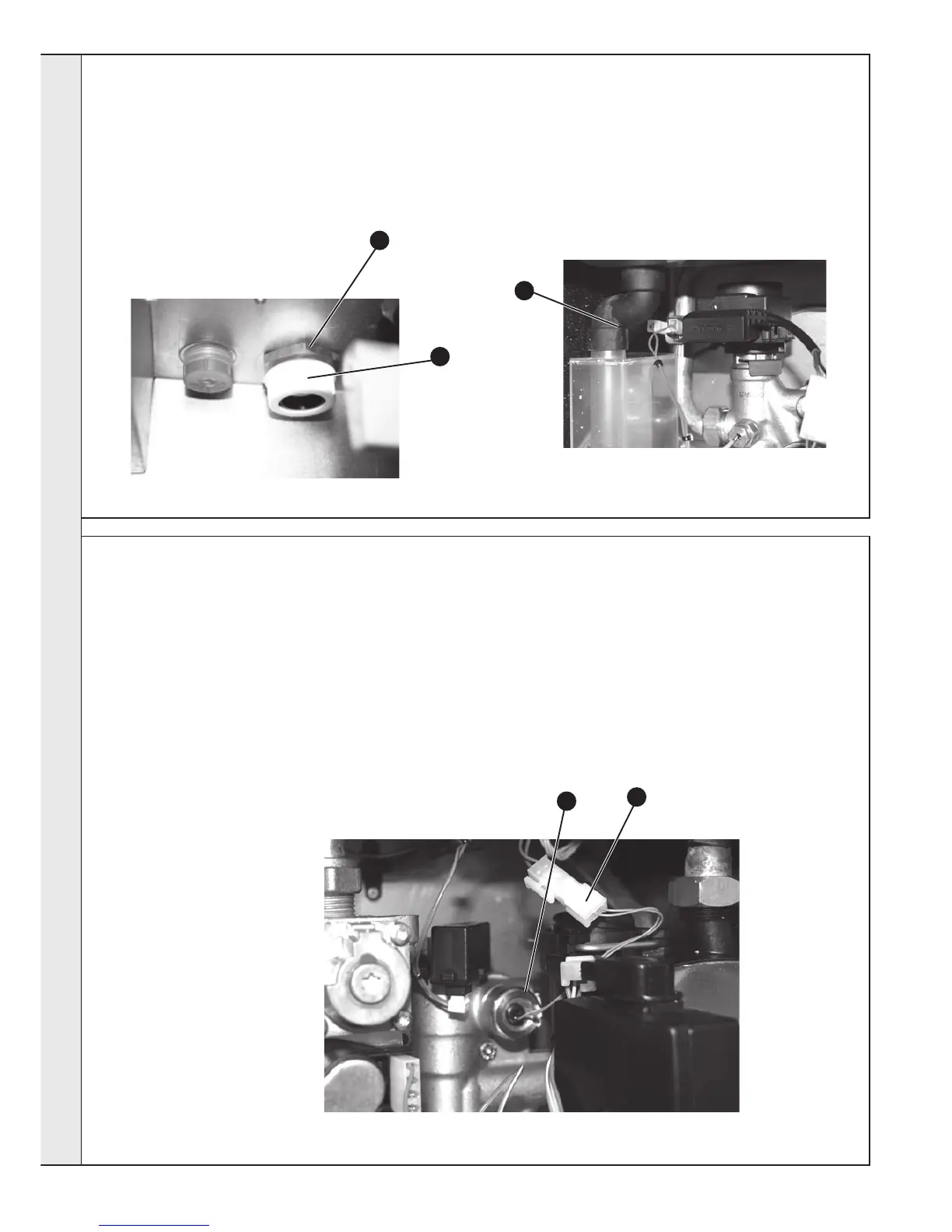

64 CONDENSATE TRAP/SIPHON REPLACEMENT
1. Refer to Frame 52.
2. Swing the control box down into the servicing position.
Refer to Frame 46.
3. Pull off the rubber top pipe.
4. Undo the siphon plastic union connection.
65 DHW THERMISTOR REPLACEMENT
1. Refer to Frames 52 & 72 for draining the appliance.
2. Swing the control box into the servicing position. Refer
to Frame 46.
3. Drain the DHW circuit. Refer to Frame 72.
4. Unscrew the knurled retaining nut.
3
5. Remove the backnut retaining the siphon to the bottom
panel.
6. Fit the new siphon in reverse order ensuring the siphon
is full of water.
7. Check operation of the boiler. Refer to Frame 52.
5
5. Disconnect the in line electrical connection and
withdraw the thermistor.
6. Reassemble in reverse order.
7. Check operation of the boiler. Refer to Frame 52.
