IDEAL HE9 Installation And Servicing Guide

14
classic HE P - Installation & Servicing
INSTALLATION
The boiler is supplied fully assembled in Pack A,
together with a standard flue assembly for lengths
from 75mm (3") up to 705mm (27
3/4") rear flue and
from 270mm (10 5/8") up to 775mm (30
1/2") side
flue in Pack B.
Note. For side flue applications the optional extra
side outlet kit is required.
Unpack and check the contents.
Pack B Contents
z Terminal grille assy. - 1 off.

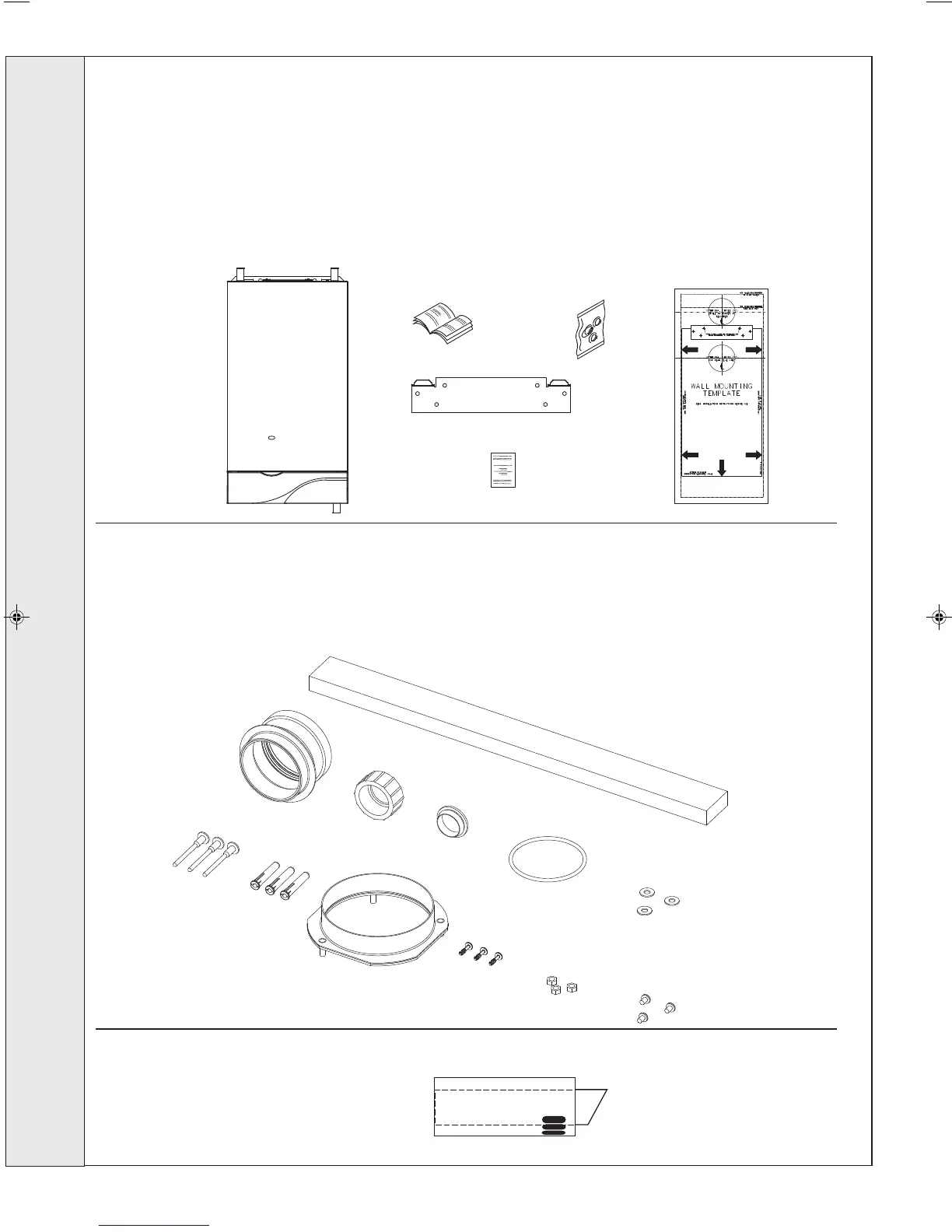

8 UNPACKING
Pack A Contents
A The complete boiler
B Installation & Servicing/
User's Instructions
C Hardware Pack (listed below)
Hardware Pack 1 Contents
A Pipe - Flue extension - 1 off
B Nut Siphon - 1 off
C Washer - siphon sealing - 1 off
D 'O' ring - 1 off
cla7643
C
E
D
A
B
F
D Wall mounting template
E Wall mounting plate
F 1 year guarantee form
E Washer M4 Form 'C' - 3 off
F No. 14x2" slotted woodscrew - 3 off
G Wallplug - 3 off
H Sealing ring - 1 off
ix7408
I Screw M4 x 8 PP Taptite - 3 off
J Nut M5 hex - 3 off
K Screw No. 8 x 8 PP S/tap - 3 off
L Polyurethane foam seal - 1 off
cla7673
A
L
B
C
D
K
E
J
I
H
G
F
INSTALLATION
202107-6.pmd 20/02/2008, 13:5714
