IDEAL icos system HE15

14
INSTALLATION
icos system - Installation and Servicing

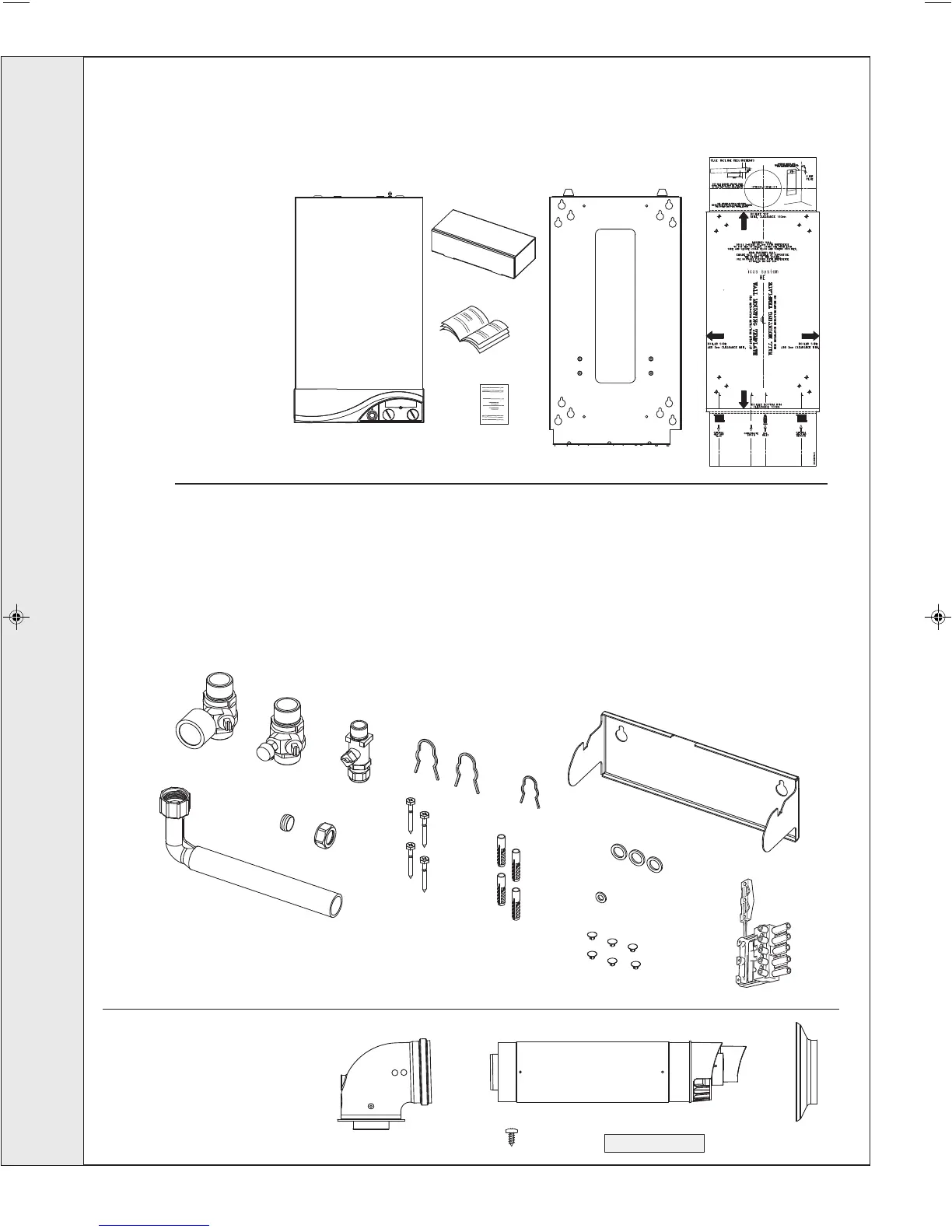

Hardware Pack Contents
A Isolation valve c/w pressure gauge - 1 off
B Isolation valve c/w drain - 1 off
C Compression gas cock - 1 off
D Valve securing clip 22mm - 2 off
E Valve securing clip 15mm - 1 off
F Pre-piping frame support bracket - 1 off
G S-trap hose - 1 off
H 15mm olive - 1 off
I Pressure relief valve nut - 1 off
J No. 14x2in woodscrew - 4 off
K Wallplug - 4 off
L Fibre washer 19 ID x 26 OD - 3 off
M Gas line sealing washer - 1 off
N Hole plug white - 6 off
P Mains connector - 1 off
nm8458
A
B
C
D
E
F
G
H
I
J
K
L
M
N
P
Pack B Contents
A Telescopic flue terminal
B Flue turret
C Rubber Terminal Wall Seal
D Screw
E Sealing tape
isfu8751d
D
C
B
A
E
9 UNPACKING
The boiler is supplied fully assembled in one Pack A, together with a telescopic flue
assembly for lengths up to 595mm, rear or side flue outlet, in Pack B.
Unpack and check the contents.
Pack A Contents
A Boiler
B Hardware Pack Box
C Pre-piping Frame
D These Installation/Users
Instructions
E Wall Mounting Template
(located on internal
protective packaging)
F 1 Year Guarantee
nm9241b
B
C
E
A
D
F
INSTALLATION
