26
INSTALLATION
icos system - Installation and Servicing
FLUE OUTLET
rf8394-1
690mm
Fixed
300mm
min
29

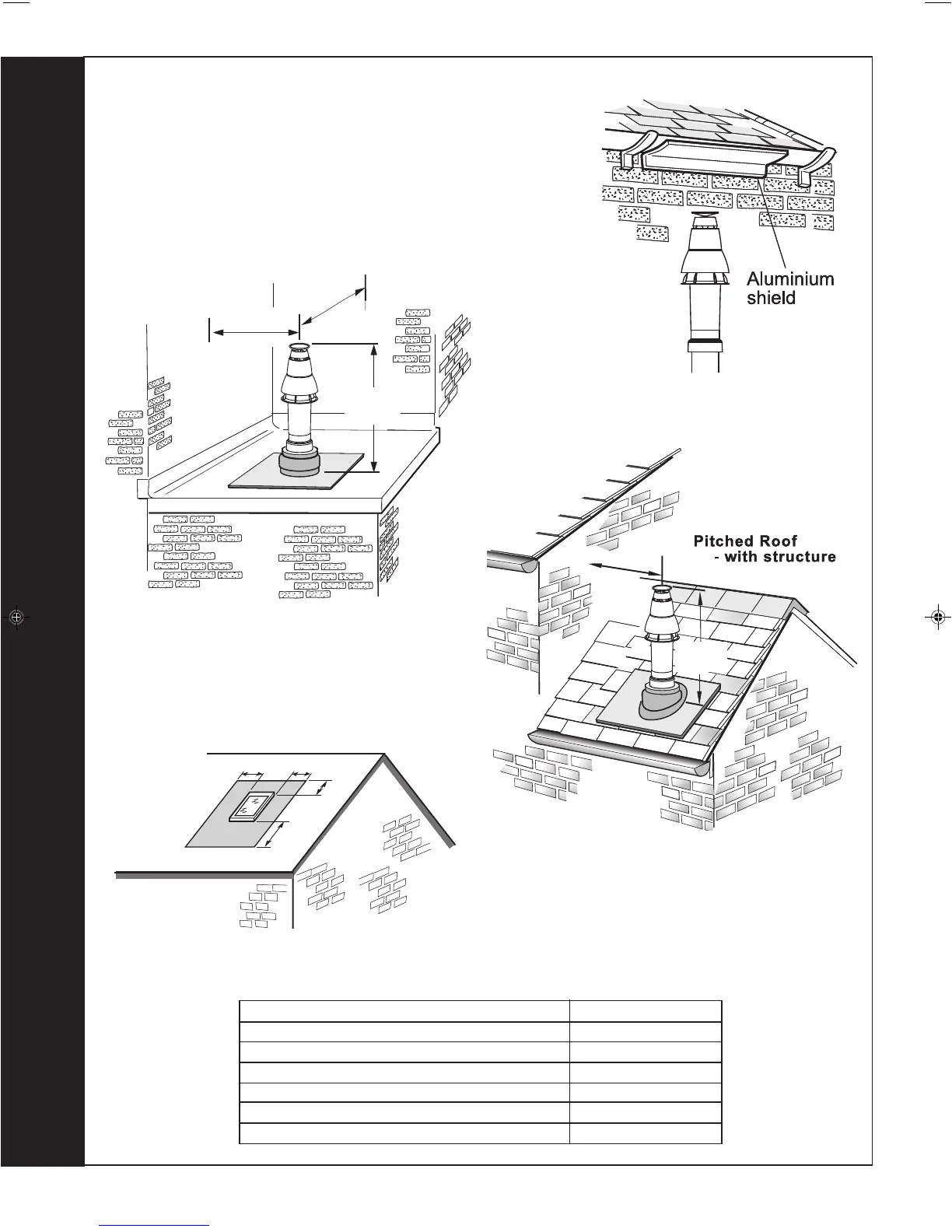

FLUE TERMINAL POSITION
rf8393-1
300mm
min
300mm
min
625mm
Fixed
Flat roof - with structure
The terminal should be positioned so that products of
combustion can safely disperse at all times.
Pluming may occur at the termination so, where
possible, terminal positions where this could cause
a nuisance should be avoided.
Minimum dimensions are shown below
rf8392
RF9807
A
A
B
A
A = 600mm
B = 2000mm
The flue terminal shall not penetrate the shaded area of the roo
Terminal Position Minimum Dimension
Directly below an opening, air brick, windows, etc. 300 mm
Below plastic / painted gutters 300 mm
Painted surface 300 mm
Below eaves or balcony 500 mm
Below velux window 2000 mm
Above or side of velux window 600 mm
