IDEAL Independent C24 Installation And Servicing


INSTALLATION
Independent - Installation and Servicing

FLUE KITS
Pack B
Pack D
Concentric Flue Retaining Kit - 

Finishing Kit 
Refer to ‘Flue Extension Ducts’
IMPORTANT. 
Dimension X  
Dimension L  
Dimension S  

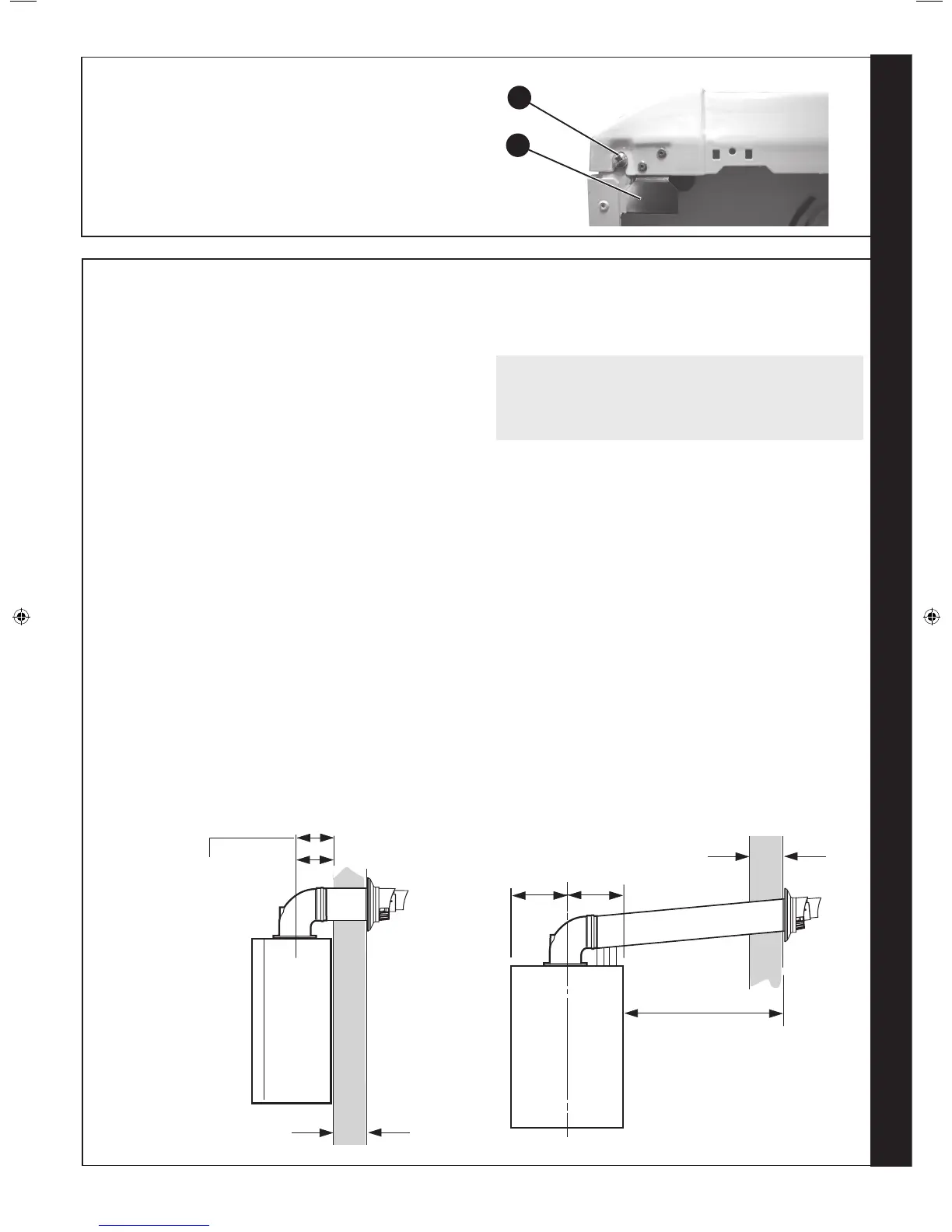

8 DETERMINING THE FLUE LENGTH AND FLUE PACKS REQUIRED
Note. MAXIMUM FLUE LENGTHS:
C24 - 9M (HORIZONTAL FLUE)
C30 - 8M (HORIZONTAL FLUE)
C35 - 6M (HORIZONTAL FLUE)
C24, C30, C35 - 7.5M (ROOF FLUE)
90
O
ELBOW KIT 60/100 (EQUIVALENT FLUE LENGTH RESISTANCE = 1M)
45
O
ELBOW KIT 60/100 (EQUIVALENT FLUE LENGTH RESISTANCE = 0.6M)
MINIMUM HORIZONTAL FLUE LENGTHS - TELESCOPIC TERMINAL = 350MM
(Centre Line of turret to outside of wall terminal) - ONE PIECE TERMINAL = 285MM
197mm
197mm
Wall Thickness X
Side flue length L
155 mm
155 + S = 200mm
3G9493
SIDE FLUE
REAR FLUE
197mm
197mm
Wall Thickness X
Side flue length L
155 mm
155 + S = 200mm
3G9493
continued . . . . .
7 FRONT PANEL REMOVAL
1. 
2. 
3. 
1
2
205367-3.indd 15 13/12/2010 16:21:03

IDEAL Independent C24 Specifications

General

Model	Independent C24
Category	Boiler
Type	Combi
Output	24 kW
Dimensions	700 x 395 x 278 mm
Mounting	Wall-mounted
ERP Rating	A
CH Output	24 kW
DHW Output	24 kW
Fuel	Natural Gas
Warranty	2 years
