IDEAL Independent C24 Installation And Servicing


INSTALLATION
Independent - Installation and Servicing

rf8394-1
690mm
Fixed
300mm
min
26 FLUE TERMINAL POSITION
rf8393-1
300mm
min
300mm
min
625mm
Fixed

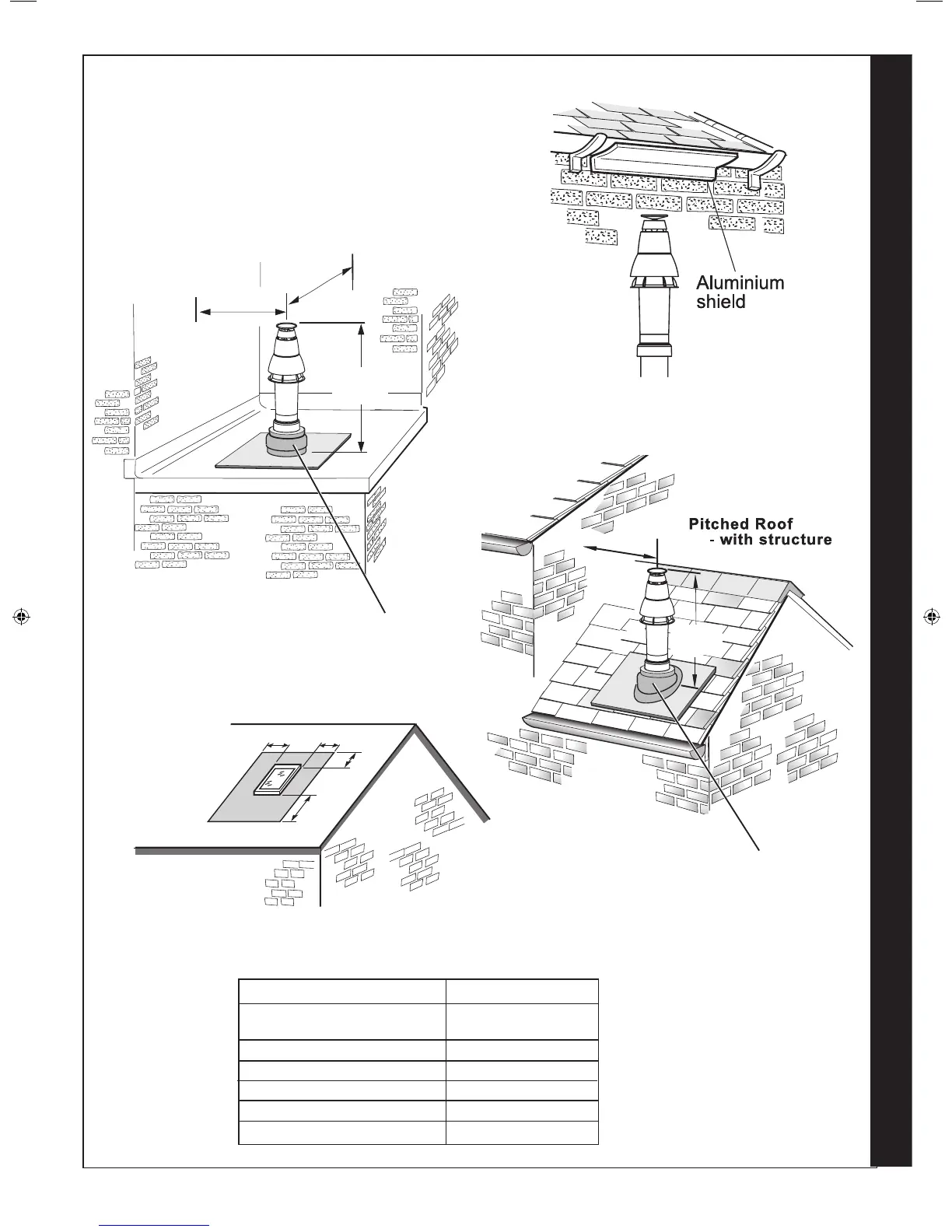

Flat roof - with structure


Pluming may occur at the termination so, where possible,
terminal positions where this could cause a nuisance
should be avoided.
Minimum dimensions are shown below
rf8392
Terminal Position Minimum Dimension
 
  
  
  
  
  
  
RF9807
A
A
B
A
A = 600mm
B = 2000mm
The flue terminal shall not penetrate the shaded area of the roo
f






Note.
The equivalent ue length resistance of
the elbow kits are:
90
o
elbow kit = 1m
45
o
elbow kit = 0.6m
205367-3.indd 25 13/12/2010 16:21:22

IDEAL Independent C24 Specifications

General

Model	Independent C24
Category	Boiler
Type	Combi
Output	24 kW
Dimensions	700 x 395 x 278 mm
Mounting	Wall-mounted
ERP Rating	A
CH Output	24 kW
DHW Output	24 kW
Fuel	Natural Gas
Warranty	2 years
