INSTALLATION
Independent - Installation and Servicing
14

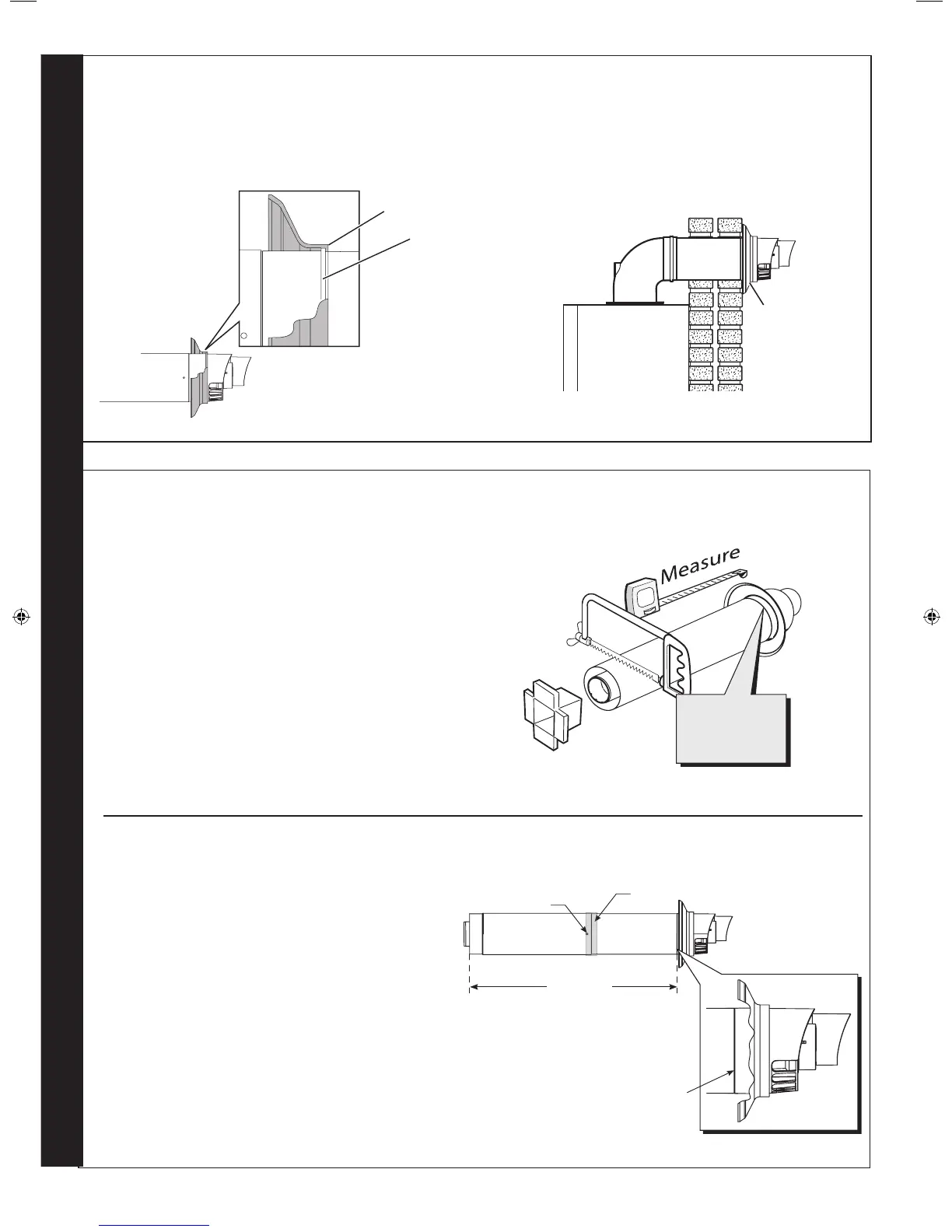

SETTING THE FLUE - REAR
Notes.
a. If using the extension ducts go to Frame 16.
b. For shorter ue requirements use non telescopic B
Pack.
c. If the stand-off frame is used it is essential to add 45mm
to ‘X’ the measured wall thickness when marking the
ue (this will allow for the tted frame).
1.
2.
3.
4.
5.
nm8944
X + 75
Drill hole
Adhere sealing tape
Measurement to be
taken from this point
NON TELESCOPIC FLUE - Wall thickness of 115mm to 485mm
TELESCOPIC FLUE - Wall thickness of 195mm to 420mm
Notes.
a. If using the extension ducts go to Frame 16.
b. If the stand-off frame is used it is essential to add 45mm
to ‘X’ the measured wall thickness when marking the ue
(this will allow for the tted frame).
1.
2.
3.
4.
Measure from
this
RING
3G9675
13
TERMINAL WALL SEAL ASSEMBLY / POSITIONING
Ensure lip of wall seal is positioned
over step on plastic nose of flue terminal
(note, seal is cut away for clarity)
Step
isfu9783
Wall Seal Lip
FIGURE 1 FIGURE 2
var9784
Rubber
Terminal
Wall Seal
205367-3.indd 18 13/12/2010 16:21:08
