User's
6 User Guide
6. BASIC LOGIC AIR CONTROLLER AND
DISPLAY FUNCTIONS

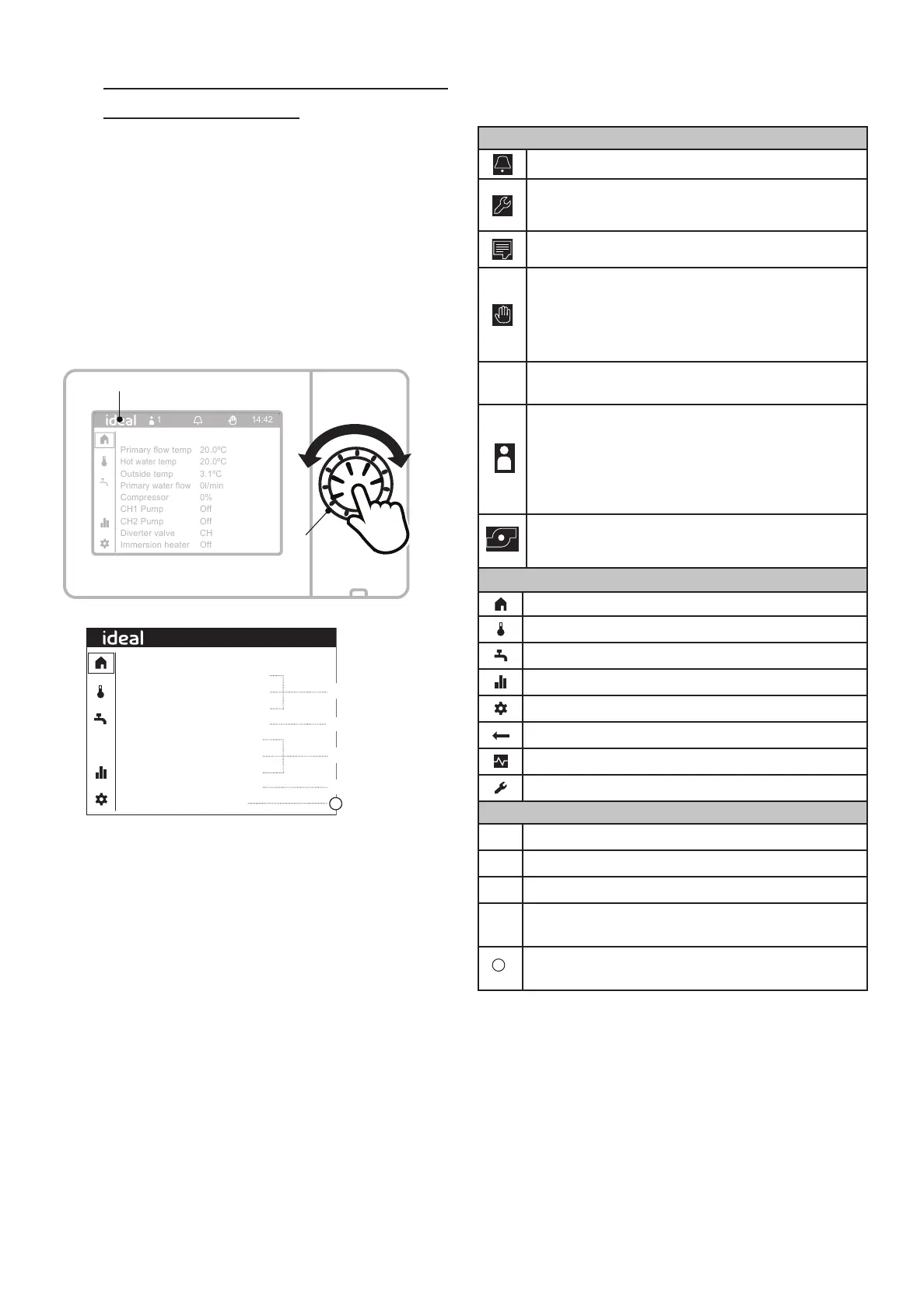

The Heat Pump controls are located on the front of the control
box. This is the centralised control for the full heating system.
ⓘ IMPORTANT: To use the control screen the dial can
be rotated clockwise to move selection downwards, anti-
clockwise to move selection upwards, and pressed to
select. When options are selected, the dial can be turned
to cycle through the setting options. To exit menus or
return to previous screens, a selectable option will be
displayed at the bottom of the screen.
STATUS SYMBOLS
1
Symbol 'Alarm' indicates a plant error.
1
Symbol 'Maintenance/Special operations' indicates
the presence of a maintenance message or special
operation feedback.
1
Symbol 'Event' indicates an event message from the
plant.
1
'Hand' symbol The 'Hand' symbol is displayed if the
plant/zone switch setting is changed by making an
adjustment on the topic pages.
Adjustments made on the topic pages can be reset at
the plant/zone switch.
12:00
The device clock is synchronized with the clock from
the connected controller.
Symbol 'User' and the number to the right (access
level 1 to 3) indicate which user level is currently
active.
• 1: Commissioning engineer
• 2: Heating engineer
• 3: OEM
1
Symbol 'Producer' indicates the main producer (e.g.
oil/gas boiler, heat pump) that is currently switched
on.
NAVIGATION SYMBOLS
Default Screen
Space Heating
Domestic Hot Water
System Information
Settings Menu
Return to Previous Screen
Test Function
Installer Functions
OPERATING MODES

Operating Temperatures

Water Flow from Heat Pump to Indoor Unit

Heat Pump Output

Hot Water and Central Heating System Control
Actuator Status
Details on Immersion Heater - On/O󰀨
20.0ºC
20.0ºC
3.1ºC
0l/min
0%
Off
Off
CH
Off
Primary flow temp
Hot water temp
Outside temp
Primary water flow
Compressor
CH1 Pump
CH2 Pump
Diverter valve
Immersion heater
1 14:42
• Rotate the dial clockwise for downwards selection
• Rotate the dial anti-clockwise for upwards selection
• Press the dial to make selection
Dial
Screen
5
20.0ºC
20.0ºC
3.1ºC
10l/min
100%
Off
Off
DHW
Off
Primary flow temp
Hot water temp
Outside temp
Primary water flow
Compressor
CH1 Pump
CH2 Pump
Diverter valve
Immersion heater
08:32




5
