INSTALLAT ION
Mini --- Installation & Servicing
14

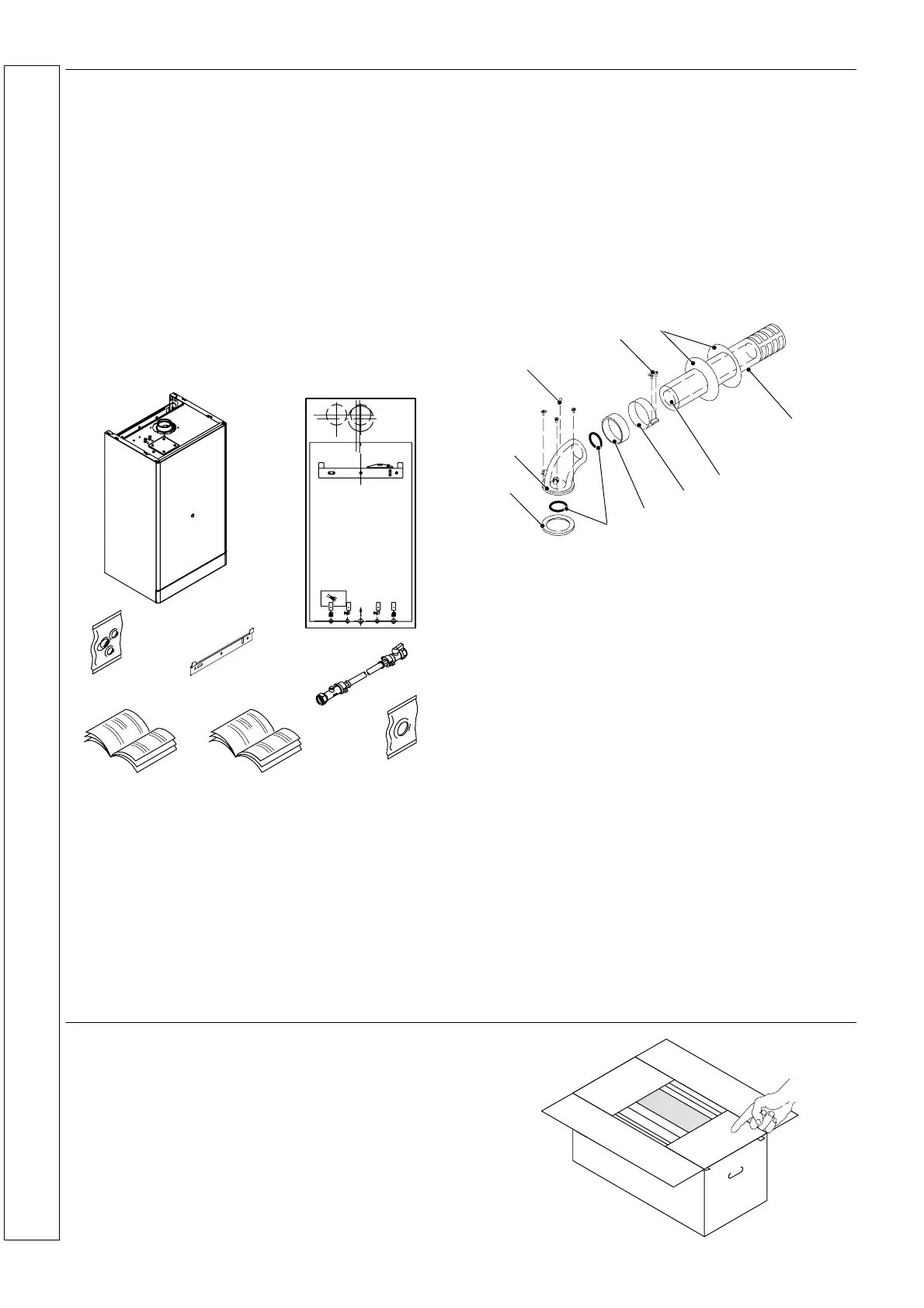

9 UNPACKING
The boiler is supplied fully assembled in one pack A, together
with a standard flue assembly for lengths up to 960 mm
(37” 3/4), rear or side flue outlet, in pack B.
Unpack and check the contents.
Pack A contents
ATheboiler.
B Hardware pack
C Wall mounting plate
D Wall mounting template
E Installation & Servicing instruct ions.
F The User’s Instructions.
G Filling loop assembly
H Restrictor pack
A
B
C
D
EF
G
H
Hardware pack contents
F 22 mm CH connection pipe --- 2 off.
F 22 mm Gas supply connection pipe --- 1 off.
F 15 mm DHW cold inlet connectio n pipe --- 1 off. *
F 15 mm DHW hot outlet connection pipe --- 1 off. *
F 1/2” connection nut --- 2 off. *
F 1/2” sealing washer --- 3 off. *
F 3/4” sealing washer --- 6 off.
F 3/4” Gas supply isolating valve --- 1 off.
F 3/4” CH circuit isolating valve --- 2 off.
F 1/2” DHW cold inlet isolating valve --- 1 off. *
* Mini C24, Mini C28 and Mini C32 only
Pack B contents
I Air intake pipe ø 100 mm (4”)
J Flue pipe ø 60 mm (2” 3/8) with terminal grille assembly
KBand
L Turret---air pipe gasket
M Fluepipegaskets ---2off
N Boiler ---turret gasket
O Flue turret
P Self tapping screws 4,8x13 --- 4 off
Q Self tapping screw 4,2x13 --- 2 off
R W all finishing gaskets --- 2 off
J
I
K
L
M
N
O
P
R
Q
Optional extras, if ordered, are available in separate boxes.
F Electronic programmer kit *
F Extension duct kit pack D (ø 60/100)
F Flue suppor t kit
F V ertical outlet flue kit with elbow (ø 60/100)
F 90˚ Elbow kit (ø 60/100)
F 45˚ Elbow kit (ø 60/100)
F Roof flue kit (ø 80/125)
F Pitched roof tile (for roof flue kit)
F Flat roof tile (for roof flue kit)
F Extension duct kit (ø 80/125)
F 90˚ Elbow kit (ø 80/125)
F 45˚ Elbow kit (ø 80/125)
F Condense drain (ø 80/125)
F Twin pipe kit (ø 80) with air and flue terminals
F Extension duct kit (ø 80)
F 90˚ Elbow kit (ø 80) female --- female
F 90˚ Elbow kit (ø 80) male---female
F 45˚ Elbow kit (ø 80) male---female
F Condense drain (ø 80)
F Condense trap
F Stand---off bracket
F Pre--- piping frame
F Natural gas to LPG conversion kit
F LPG to natural gas conversion kit
10 PACKAGING
To unpack the boiler refer to the instruc tions on carton end
flap.
INSTALLATION
