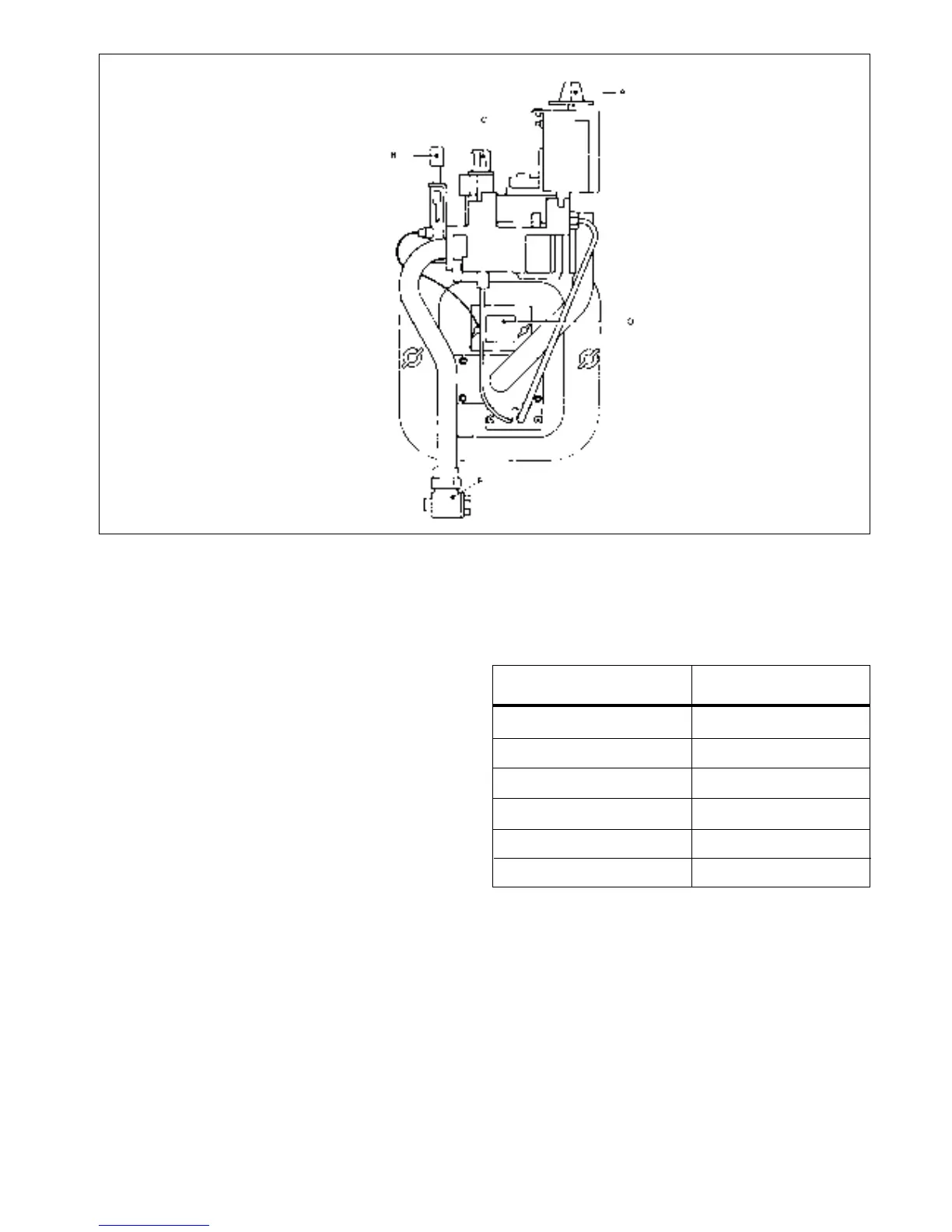

BOILER FITTINGS
RS illustrated
TO SHUT DOWN THE BOILER
1. For short periods:
Turn the boiler thermostat to OFF. When heating is again
required, restore the knob to its original setting.
2. For longer periods:
Turn the boiler thermostat knob to OFF and the gas
control knob clockwise until resistance is felt and then
release it to extinguish the pilot burner.
Switch the electricity OFF.
TO LIGHT THE BOILER
1. Check that the main gas cock (F) is open.
2. Ensure the boiler thermostat knob (A) is at OFF.
Turn the gas control knob (C) clockwise until
resistance is felt and then release it. Wait for 3
minutes.
3. Push in the gas control knob (C) and hold it
depressed. Push in and release the igniter button
(B) repeatedly until the pilot flame can be seen
through the sightglass (D). When the pilot has lit
continue to press the control knob (C) for a further
20 seconds.
4. Should the pilot go out at this, or any other stage,
turn the gas control knob (C) clockwise and release
it. Wait for 3 minutes. Repeat instruction 3 but wait
longer than 20 seconds before releasing the gas
control knob (C).
5. Check that the electricity supply and all external
controls are ON.
6. Turn the boiler thermostat knob (A) to position 6 and
the boiler will light. Set the boiler thermostat to the
desired setting.
Winter conditions (i.e. central heating and domestic
hot water)
The thermostat should be positioned at setting 5 or 6.
Summer conditions (i.e. domestic hot water only )
The thermostat should be positioned at setting 1 or 2.
However, these settings are offered for general
guidance only and other settings may be found preferable,
dependent upon the type of system installed or as
recommended by the installer.
Approximate flow temperatures for the boiler thermostat
settings are:
Boiler Thermostat Setting Flow Temperature
O
C
O
F
1 54 130
2 60 140
3 66 150
4 71 160
5 77 170
6 82 180
