Solar Thermal - Installation and Servicing
INSTALLATION
8 MOUNTING SYSTEM, PARALLEL
General Note:
Points 8-11, 16 and 17 of these instructions only apply when mounting more than two collectors.

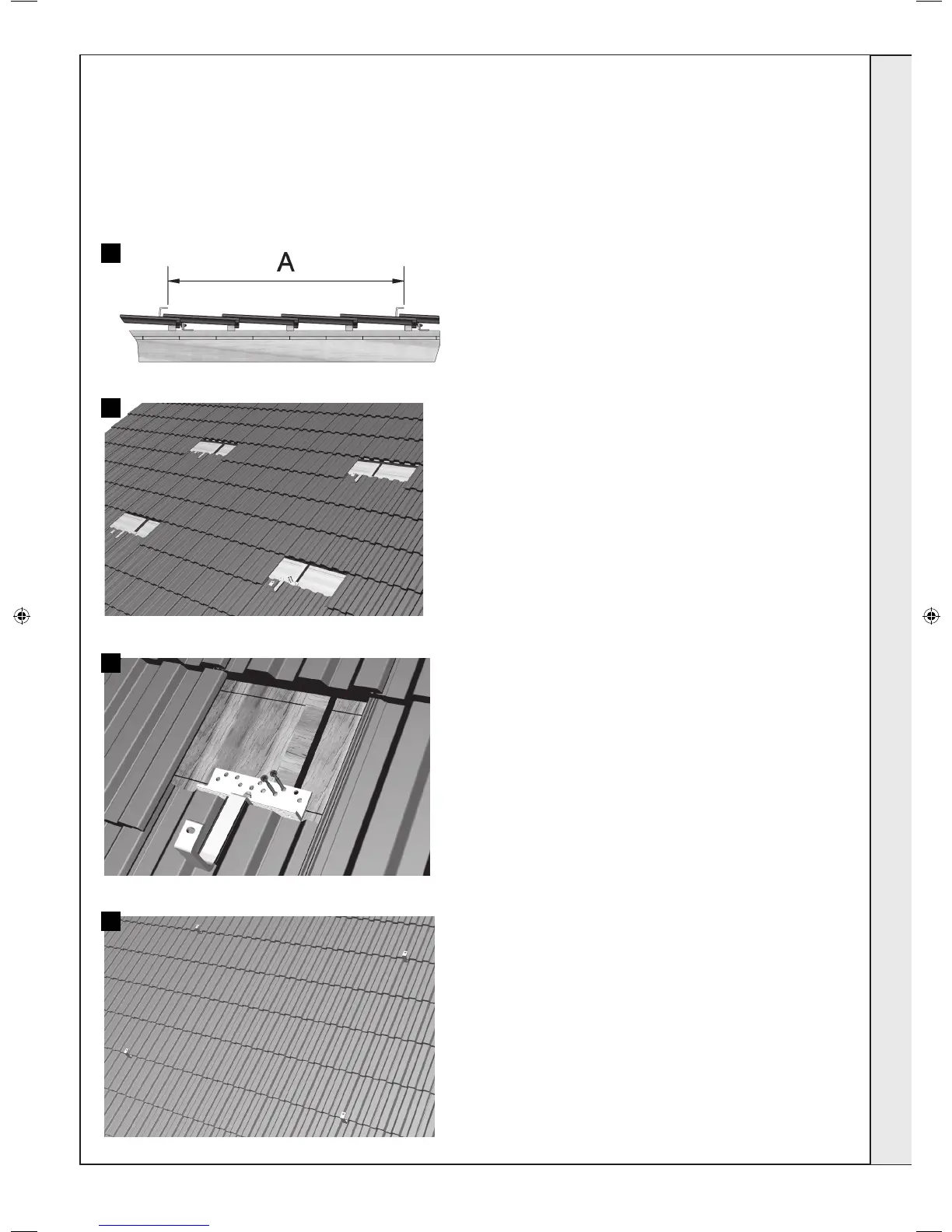

1. Measure distance between mounting bracket.
Distance should be between (125 - 155cm).
Remove appropriate roof tiles to t roof bracket
console.
2. A = 125 - 155cm - Distance between brackets
3. Fasten roof bracket console to rafters with provided self
tapping screws 6 x 60
4. Replace roof tile, cut tile to ensure correct t if necessary.
1
2
3
4
