IDEAL Solar Thermal

14
INSTALLATION
Solar Thermal - Installation and Servicing
9 MOUNTING SYSTEM, PARALLEL
INSTALLATION

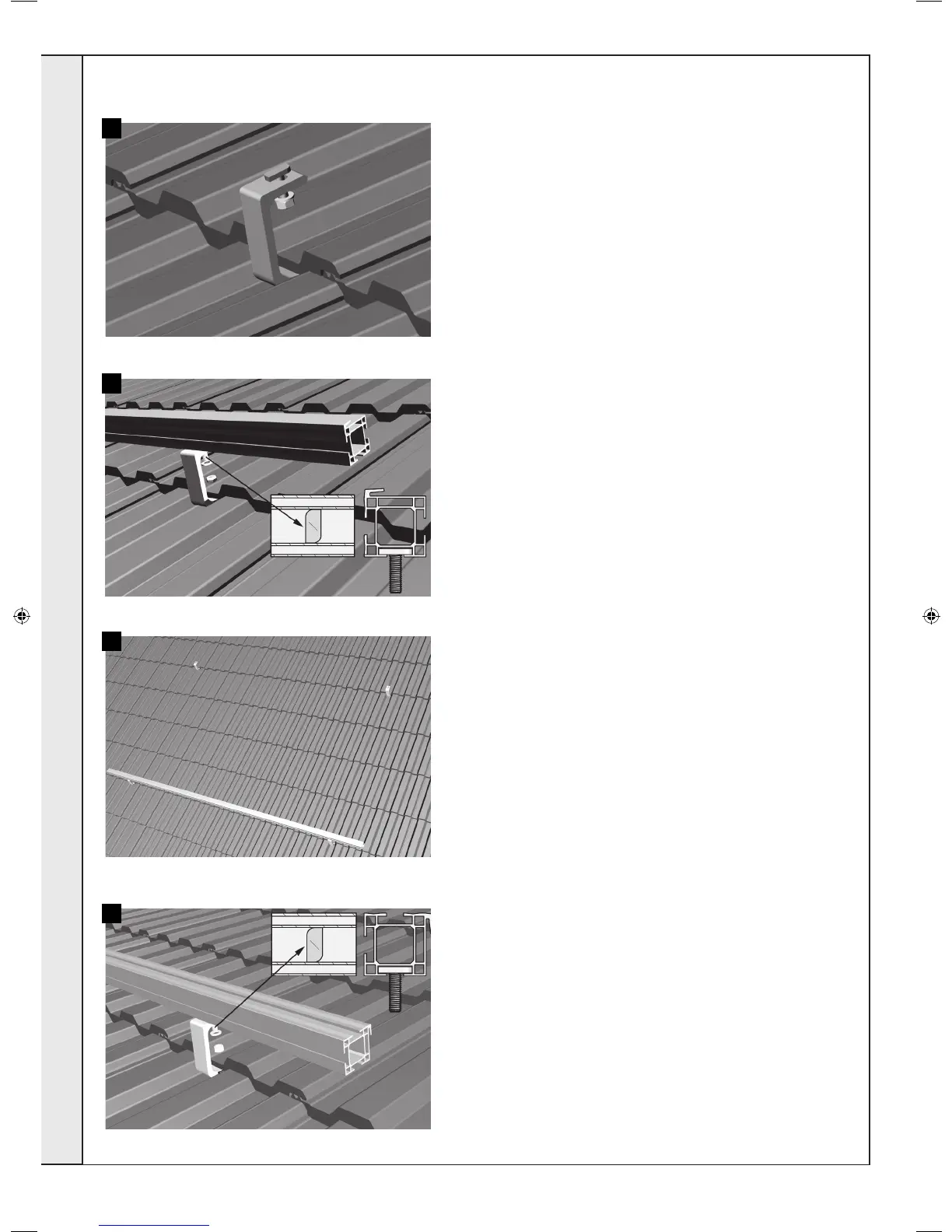

5. Insert the hammer-head bolt into the roof bracket and hand tighten
for now
Order:
hammer-head bolt - mounting bracket - washer - nut
6. Attach lower mounting rails (6a, 6b)
Order:
mounting rail - hammer-head bolt - roof bracket - washer - nut
7. Attach upper mounting rail (7a, 7b)
Order:
mounting rail - hammer-head bolt - roof bracket - washer - nut
5
6a
6b
7a
