IDEAL Solar Thermal

15
INSTALLATION
Solar Thermal - Installation and Servicing
INSTALLATION

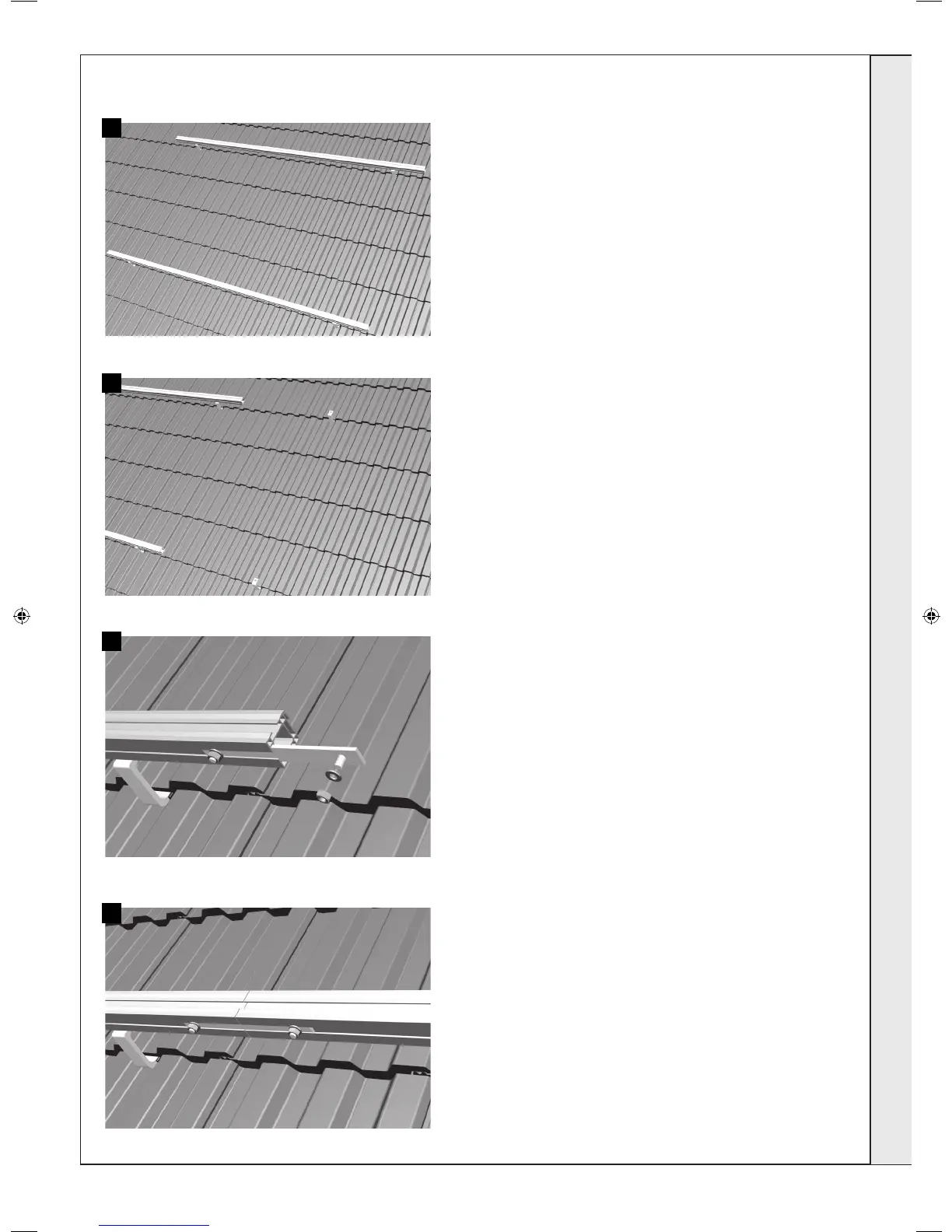

10 MOUNTING SYSTEM, PARALLEL
WARNING: Upper and lower mounting rails must be mounted
perfectly straight and parallel to one another!
8. Set addition mounting points as described in Points 1-4 if
additional collectors are to be tted.
9. Push the clamping piece extension halfway into the inner
groove of the mounting rails (upper and lower) and tighten
Order: mounting rail - clamping piece extension - washer - nut
10. insert the following mounting rails (upper and lower) and attach
them using the clamping piece extension
Order: mounting rail - clamping piece extension - washer - nut
7b
8
9
10
