INSTALLATION
Solar Thermal - Installation and Servicing
11
MOUNTING SYSTEM, PARALLEL
INSTALLATION
Solar Collector
Mounting Rail

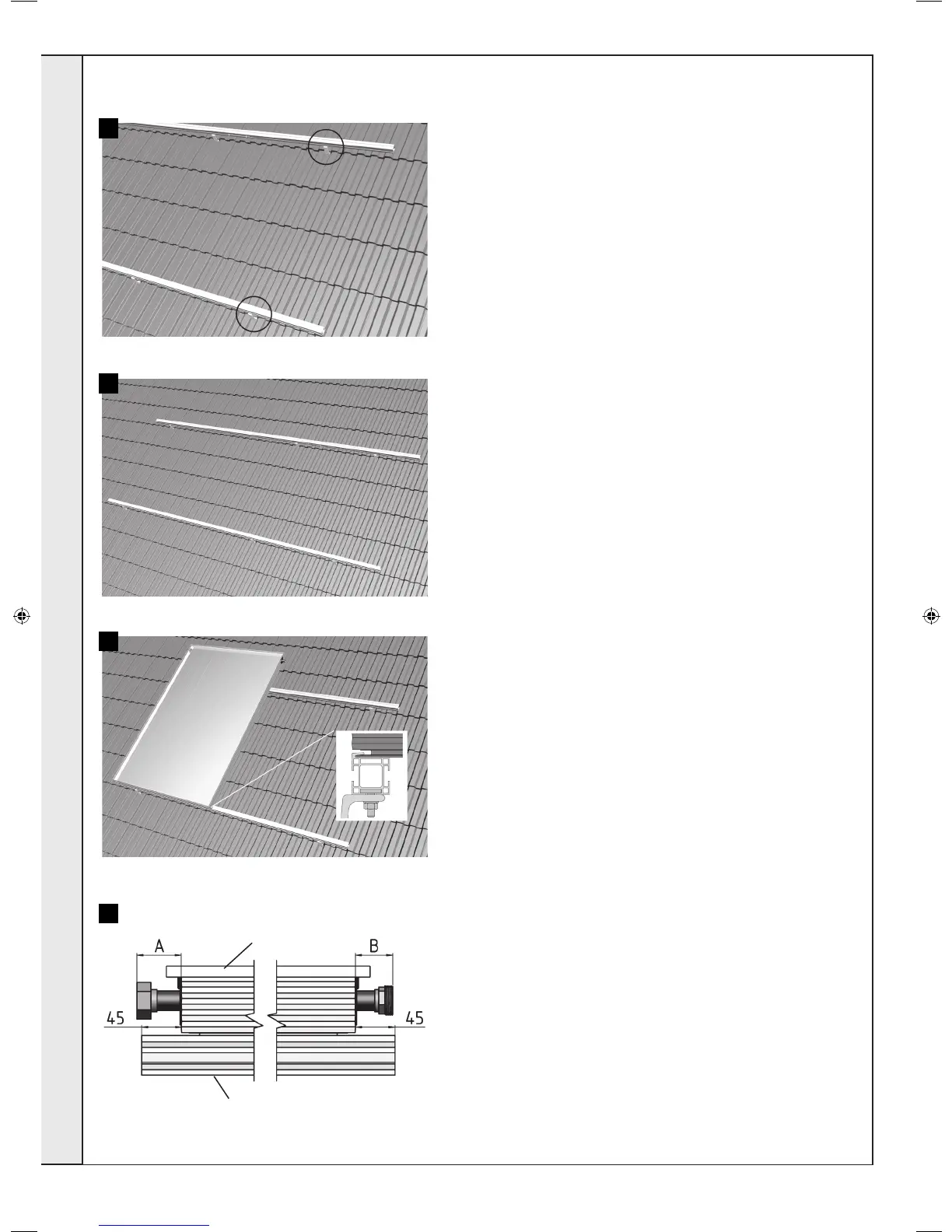

11. Attache the mounting rails (upper and lower) using the roof
bracket / clamping piece extension
Order:
mounting rail - hammer-head bolt - roof bracket - washer -nut
12. Hang the rst collector in the lower mounting rail and adjust
(12a + 12b)
Note: Distance between collector and end of moutning rails =
45mm. Measurement A = mesurement B.
11a
11b
12a
12b
