INSTALLATION
Solar Thermal - Installation and Servicing
13
MOUNTING SYSTEM, PARALLEL
INSTALLATION

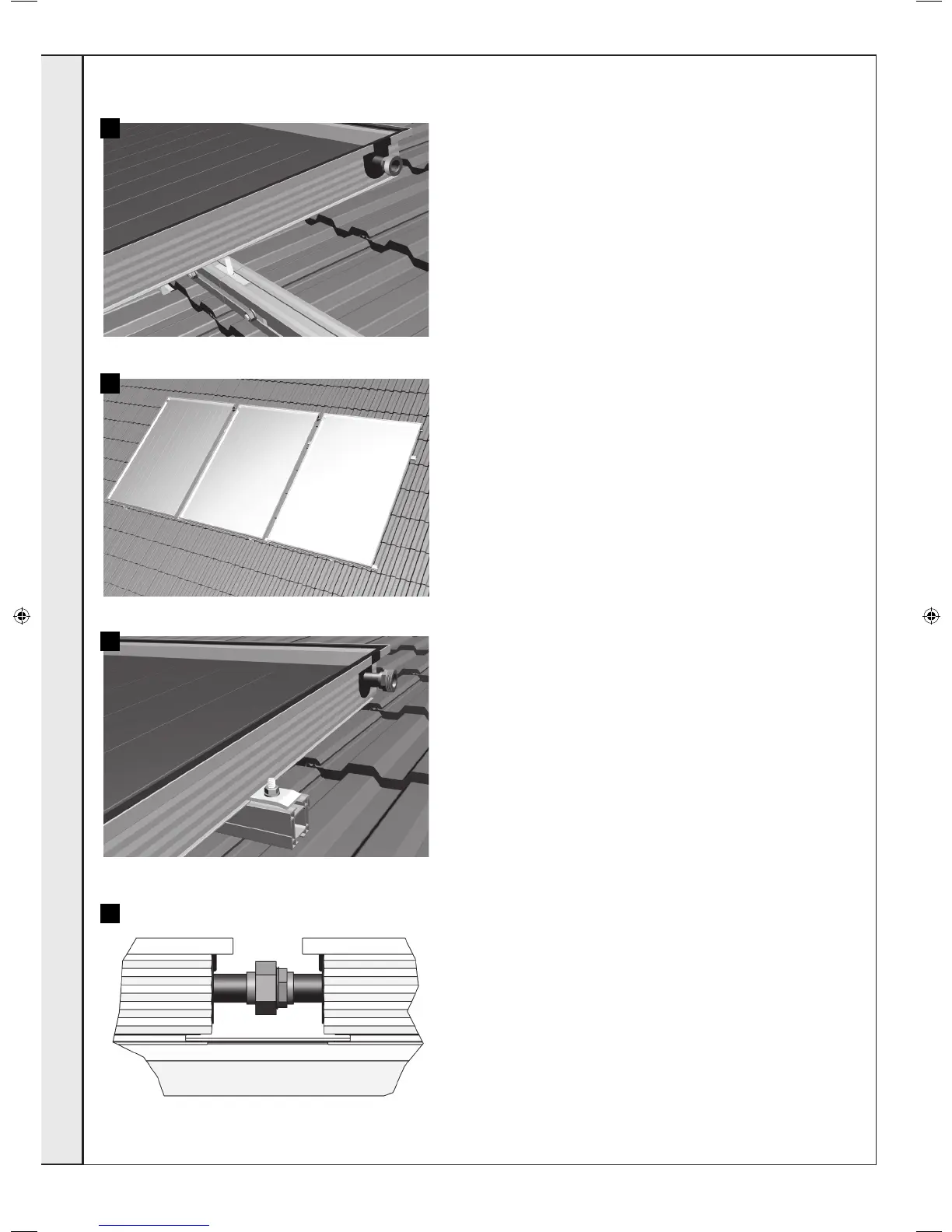

16. With clashing mounting rails, insert and position the mounting part
in the upper moutning rail
17. Attach additional clamping pieces / collectors as described in
Points 12-16.
18. Attach the mounting part on the upper left and right end of the
collector eld
Order:
mounting rail - hammer-head bolt - mounting part - washer - nut
19. Screw the collectors into place.
16
17
18
19
