INSTALLATION
Solar Thermal - Installation and Servicing
17

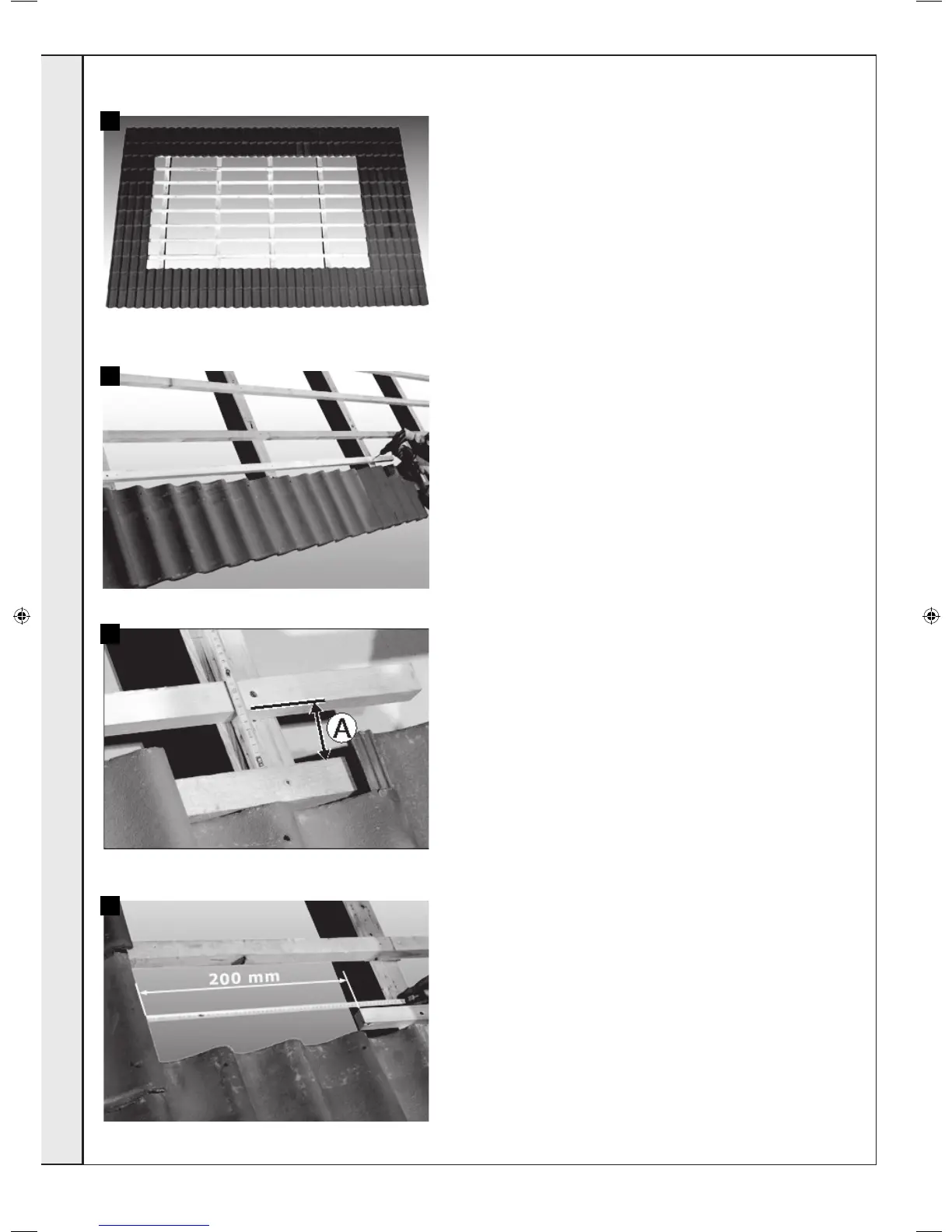

IN ROOF MOUNTING (TS 8001)
1. Uncover the roof according to the collector surface area
Width: approx. 1.25m per collector + 1.5m
Height: approx. 3.0m for single row installation
Height: approx. 5.0 - 6.0m for double row installation
2a. Attach the installation batten below, self-taping screws 5*60
2b. Measurement A = 80mm for tile sheet metal edging
Measurement A = 50mm for shingle and crown tile sheet metal
edging
2c. Measurement B = 200mm or tile width + 50mm
1
2a
2b
2c
INSTALLATION
