Solar Thermal - Installation and Servicing
18 IN ROOF MOUNTING (TS 8001)
INSTALLATION

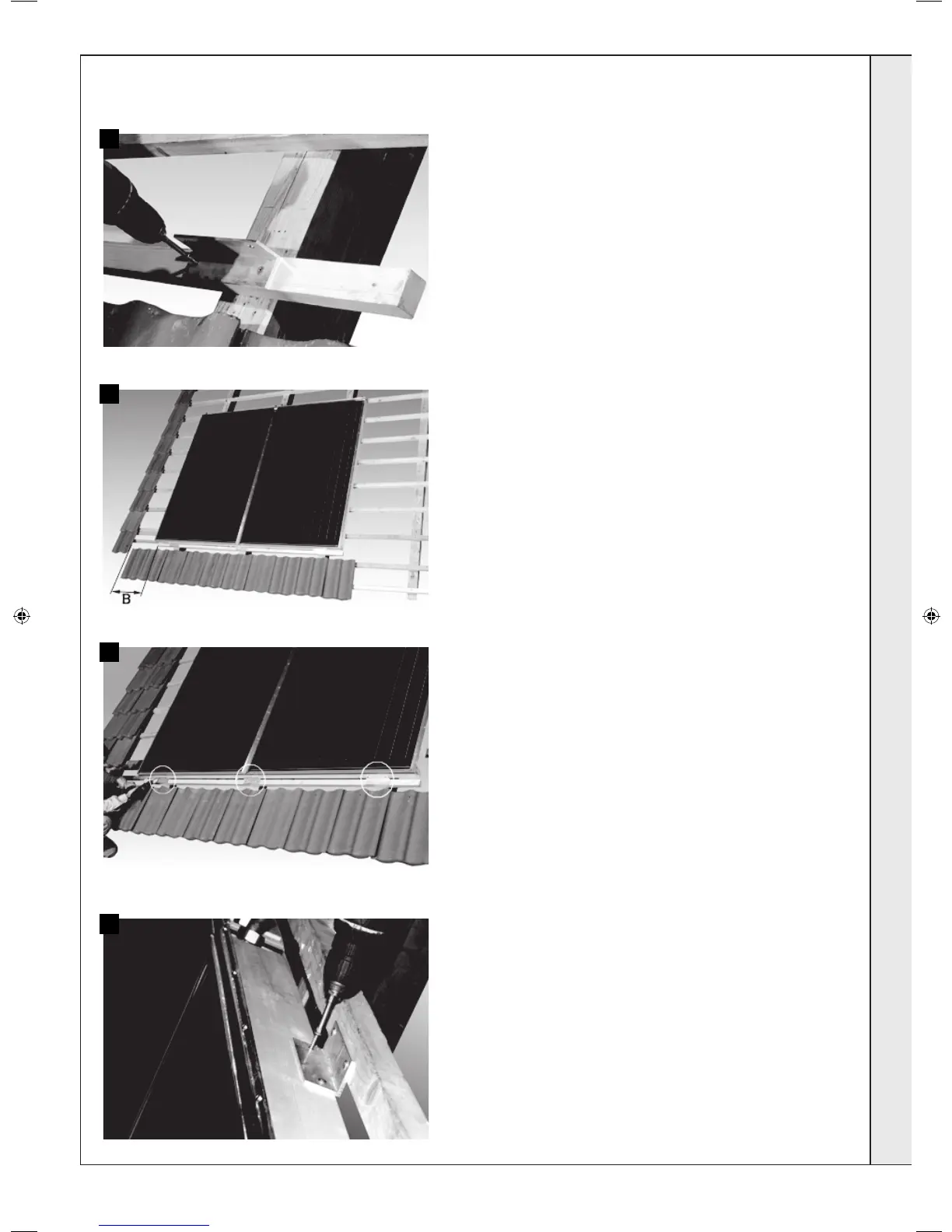

3. Fasten the attachment bracket on the installation batten as shown
on the attachment diagram (see Frame 28), self-tapping screws
5*40.
4. Set and align collectors on the roof.
5. Fasten the collectors to the attachment bracket, self-tapping
screws 5*40.
6. Secure the collectors to the upper attachment bracket,
1 bracket in the centre of each collector glass, self-tapping
screws 5*40.If necessary, install upper installation batten, self-
tapping screws 5*60.
3
4
5
6
