INSTALLATION
Solar Thermal - Installation and Servicing
19
IN ROOF MOUNTING (TS 8001)
INSTALLATION

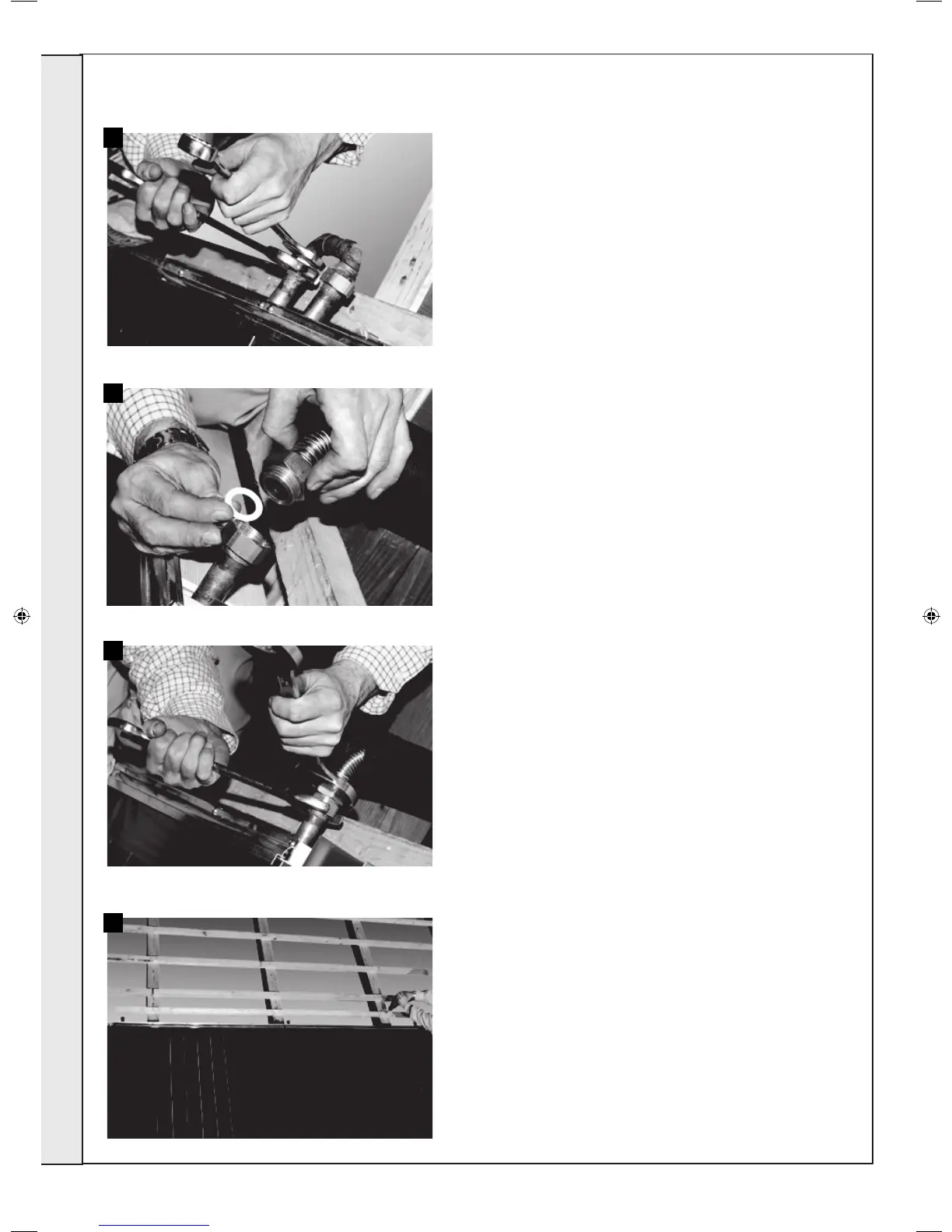

7. Hydraulically connect the collectors using short connecting bends.
8. Connect the roof-integrated connection set (8a/8b). Alternative:
Create a CU connection using a soldered connection. Install the
sensor with the sensor tube extension at the forward ow.
9. If installing a second row install the installtion batton for the
second row of collectors using the provided 5 x 60 self tapping
screws. The distance between the upper and lower rows
should be 200mm.
7
8a
8b
9
