IN ROOF MOUNTING (TS 8001)
Warning: The collector array must be checked for leaks before
installing the metal casing!

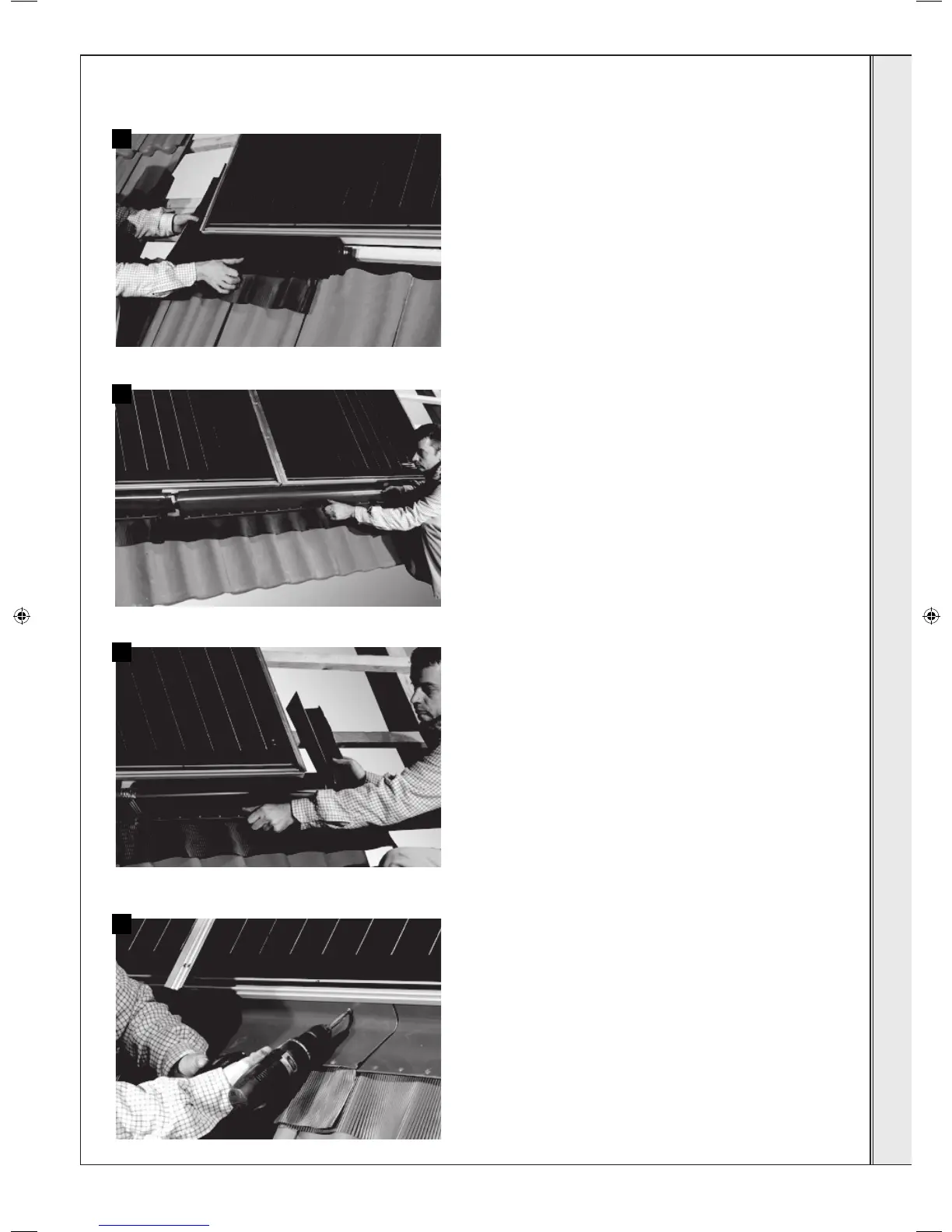

10. Slide the front corner section to the left into the required nut of the
glass lower bar. Note: Before installing the underside of the metal
casing, remove the collectors’ lower protection piece!
11. Slide the front section into the middle.
13. Secure the front section on the required positions (stampings)
using sealed plumbing screws 4.5*35.
12. Slide the front corner section to the right.
10
11
12
13
