27
INSTALLATION
Solar Thermal - Installation and Servicing
22
IN ROOF MOUNTING (TS 8001)

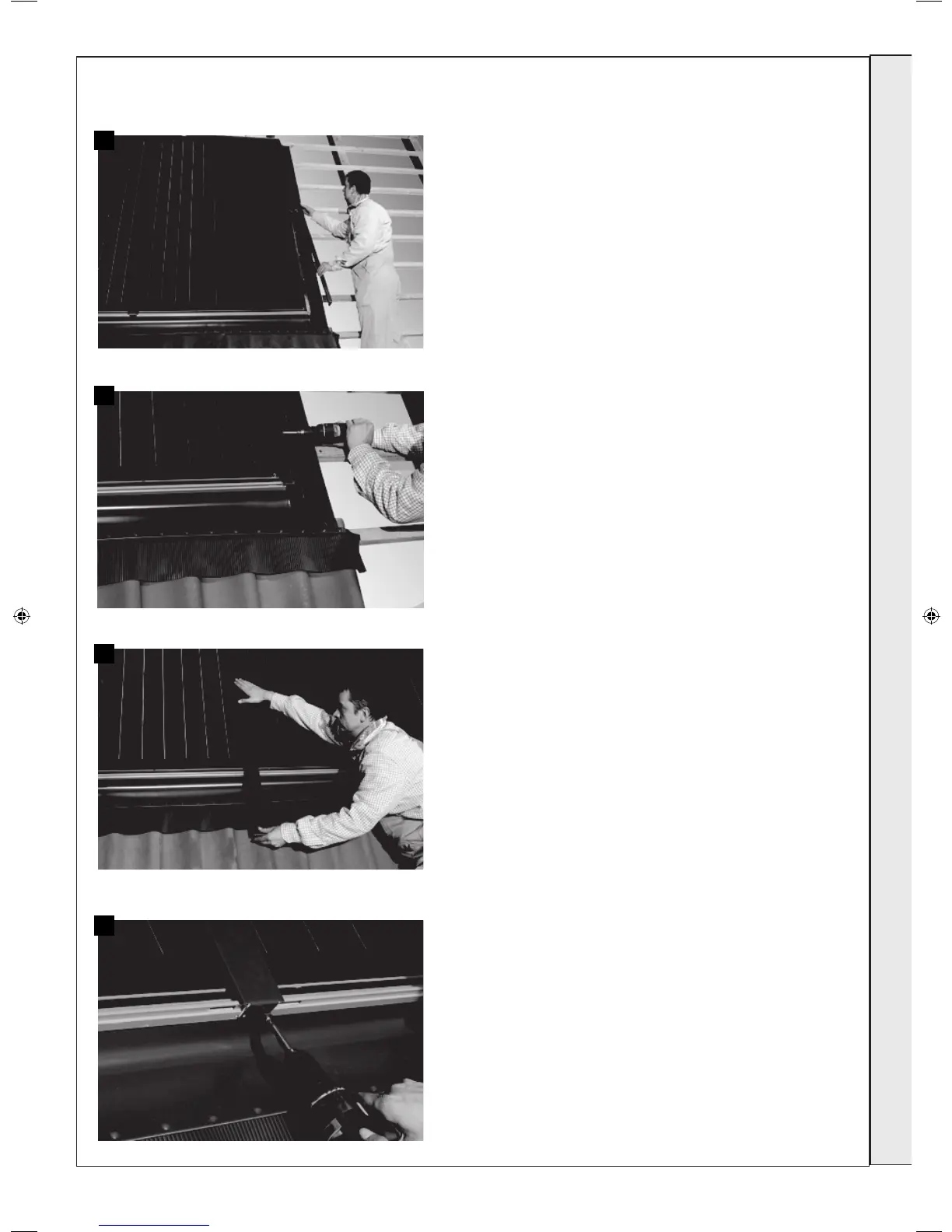

17. Attach the lateral cover strip on the right and left.
18. Attach the side tin cover strip to the front corner section on the
right and left at the collector using sealed plumbing screws 4.5*35.
20. Tighten the middle cover strips using two self-drilling sealed
plumbing screws and the lateral tin cover strip using one self-
drilling sealed plumbing screw 3.9*13.
19. Push the middle cover strip (between adjacent collectors) from
the bottom as far as it can go.
17
18
19
20
INSTALLATION
207786-2.indd 27 16/02/2012 11:26:09
