IDEAL Solar Thermal

31
INSTALLATION
Solar Thermal - Installation and Servicing
INSTALLATION
26 IN ROOF MOUNTING (TS 8001)

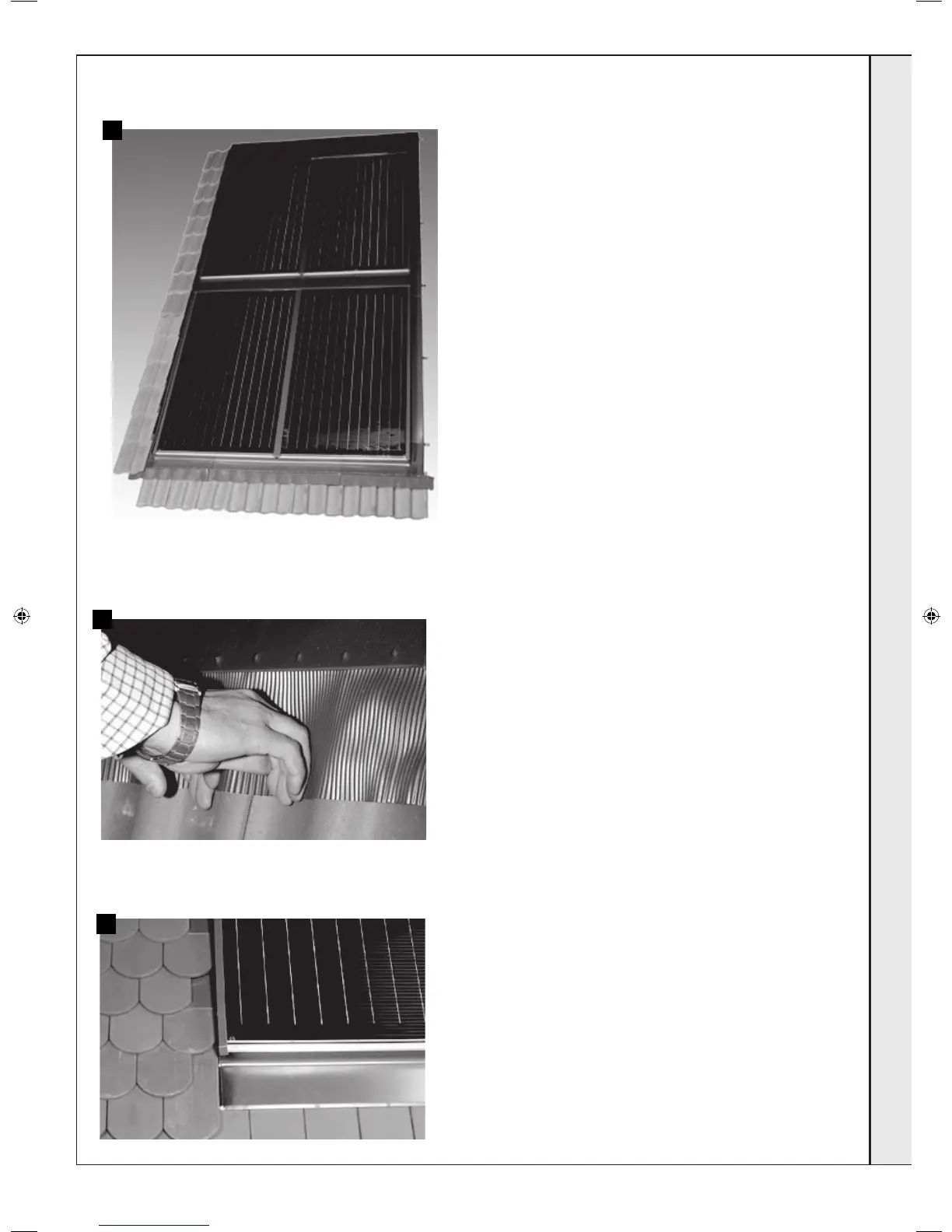

34. Note: When installing the side sections of the plain-tile metal
casing, the tiles and metal parts must always be alternately
co-vered!
32. Cover the collector eld. If necessary, the tile must be cut to
the appropriate size using an angle grinder. The top projecting
end of the tile must be 80 and 140mm over the metal edge.
33. Finally, adjust the lead skirting (for sheet metal edging with tile
roofs only) to the contour of the tile.
32
33
34
