41
INSTALLATION
Solar Thermal - Installation and Servicing
36
IN ROOF MOUNTING (TS 8001) - MOUNTING SYSTEM 45
O
ELEVATION
INSTALLATION

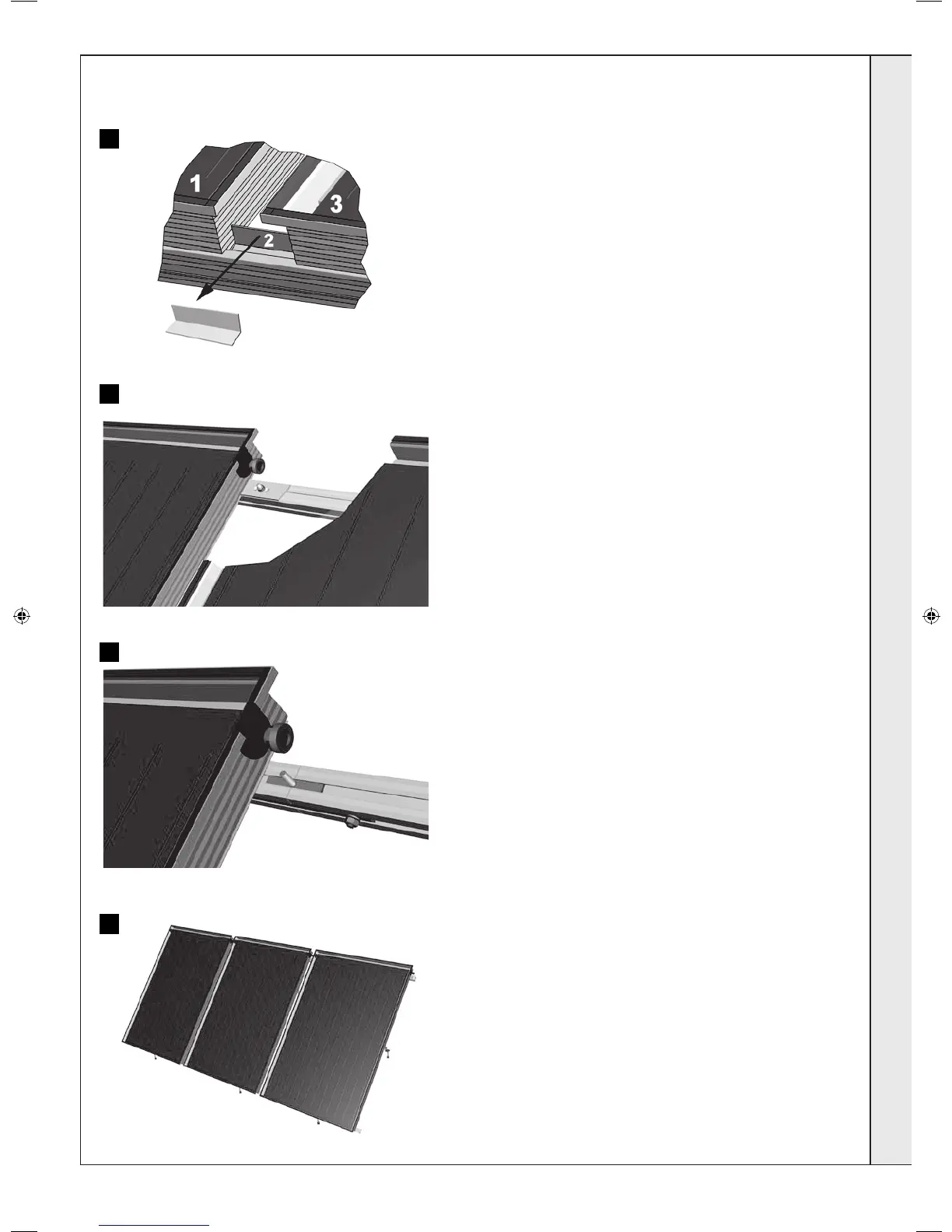

15. Rotate the clamping piece by 90° (see gure 13) and screw it tight
using a long socket wrench
16. With clashing mounting rails, insert and position the mounting
part in the upper mounting rail
17. Attach additional clamping pieces / collectors as described in Points
12–16
14b
15
16
17
207786-2.indd 41 16/02/2012 11:26:21
