IN ROOF MOUNTING (TS 8001) - MOUNTING SYSTEM 45
O
ELEVATION

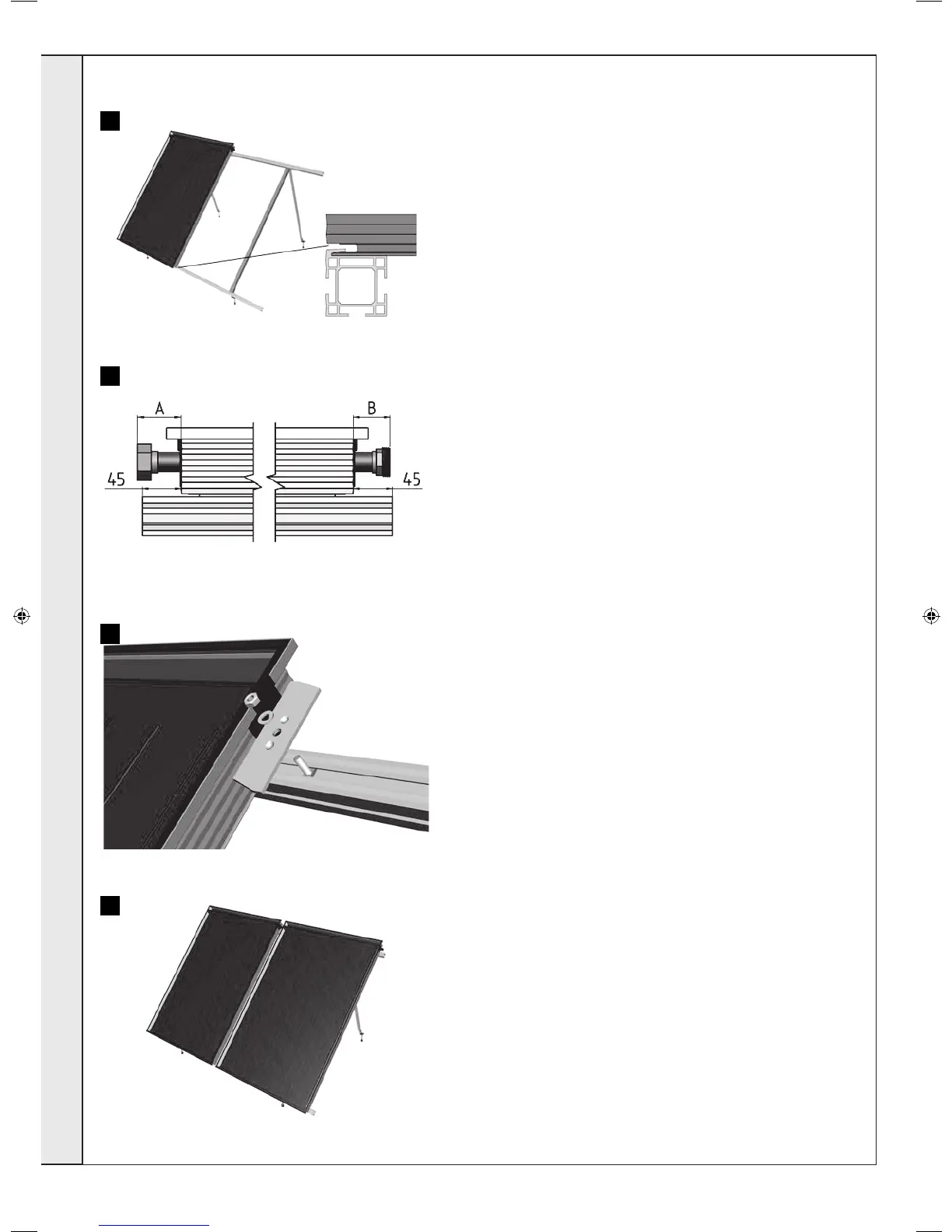

12. Hang the rst collector in the lower mounting rail and adjust (12a +
12b!)
Note: Distance between collector and end of mounting rails = 45mm
13. Place the clamping piece on the upper mounting rail and hand
tighten for now
Order:
upper mounting rail – hammer-head bolt – clamp – washer – nut
14. Attach the second collector.
(measurement A = measurement B as shown in Figure 12b)
Please use the mounting jig (14b).
