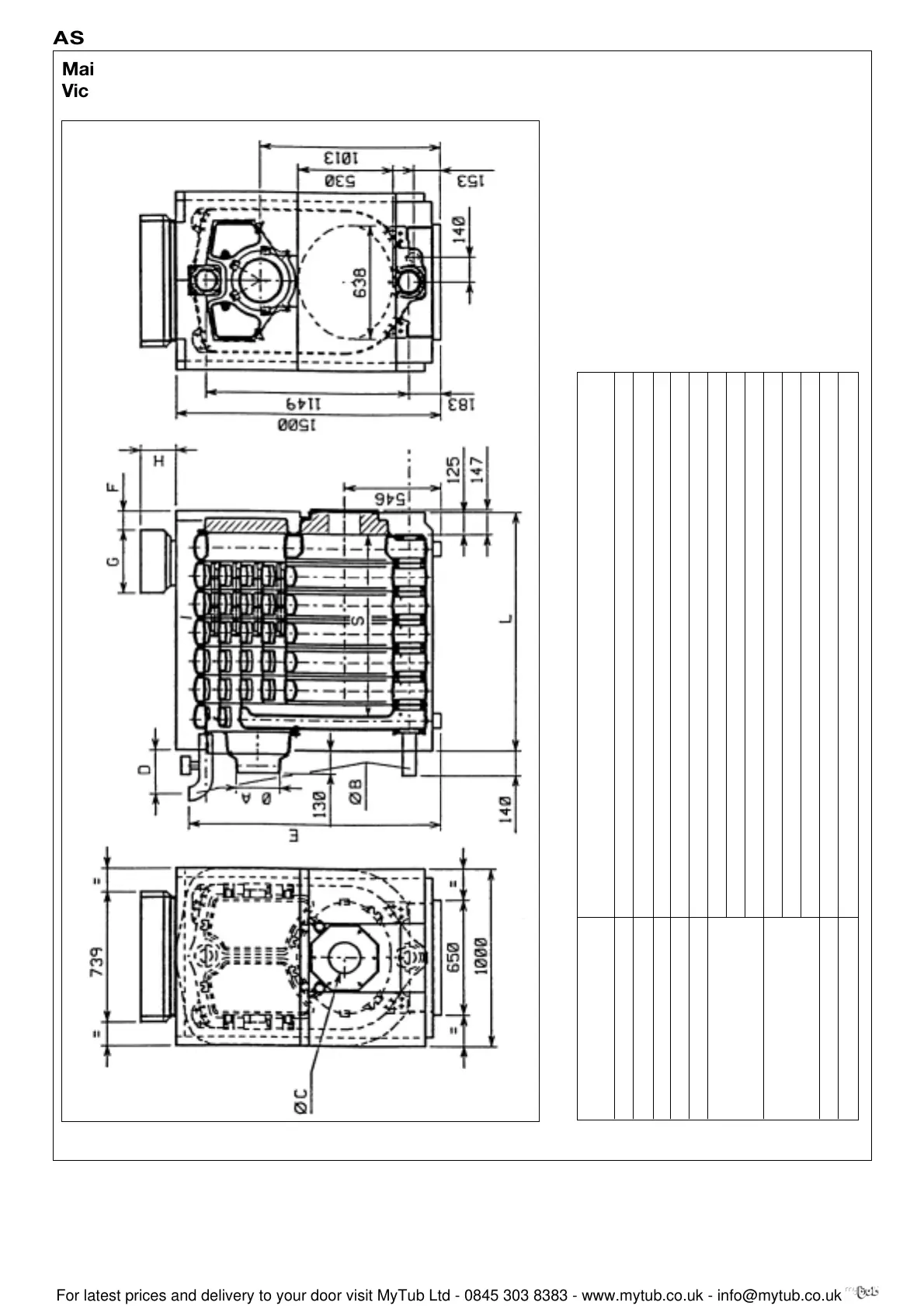

Main dimensions
Viceroy GT
22 Viceroy GT Range - Installation
ASSEMBLY
Effective Ø combustion chamber:
- Front section: 445mm
- Interm section: 530mm
Boiler Size Viceroy Viceroy Viceroy Viceroy Viceroy Viceroy Viceroy
8 9 10 11 12 13 14
Ø A out. 250 250 250 300 300 300 300
Ø B2
1
/
2
” 2
1
/
2
” 2
1
/
2
” 3” 3” 3” 3”
Ø C Ø 135, 175, 190, 240, 250, 290 * ou plaque pleine
D 235 235 235 254 254 254 254
E 1427 1427 1427 1447 1447 1447 1447
E Control Panel F 107,5 107,5 107,5 107,5 107,5 107,5 107,5
+ Diematic G 355 355 355 355 355 355 355
H 195 195 195 195 195 195 195
Standard Control Panel F 127,5 127,5 127,5 127,5 127,5 127,5 127,5
G 130 130 130 130 130 130 130
H 105 105 105 105 105 105 105
L 1505 1665 1825 1985 2145 2305 2465
S 1183 1343 1503 1663 1823 1983 2143
