Tools necessary:
- 1 12mm Allen key
- 1 cross head screw driver
- 1 13, 19 and 24mm flat spanner
- 1 22mm tubular hexagon box spanner
- 1 stanley knife
-1 “JD-TE” assembly tool
For boilers delivered with the body assembled begin at
figure
15.
To fit the sections, proceed in the following order:
- fit the rear section
- fit the special intermediate section
- fit all of the normal intermediate sections
- fit the front section
ASSEMBLY VICEROY GT
Viceroy GT Range - Installation 23

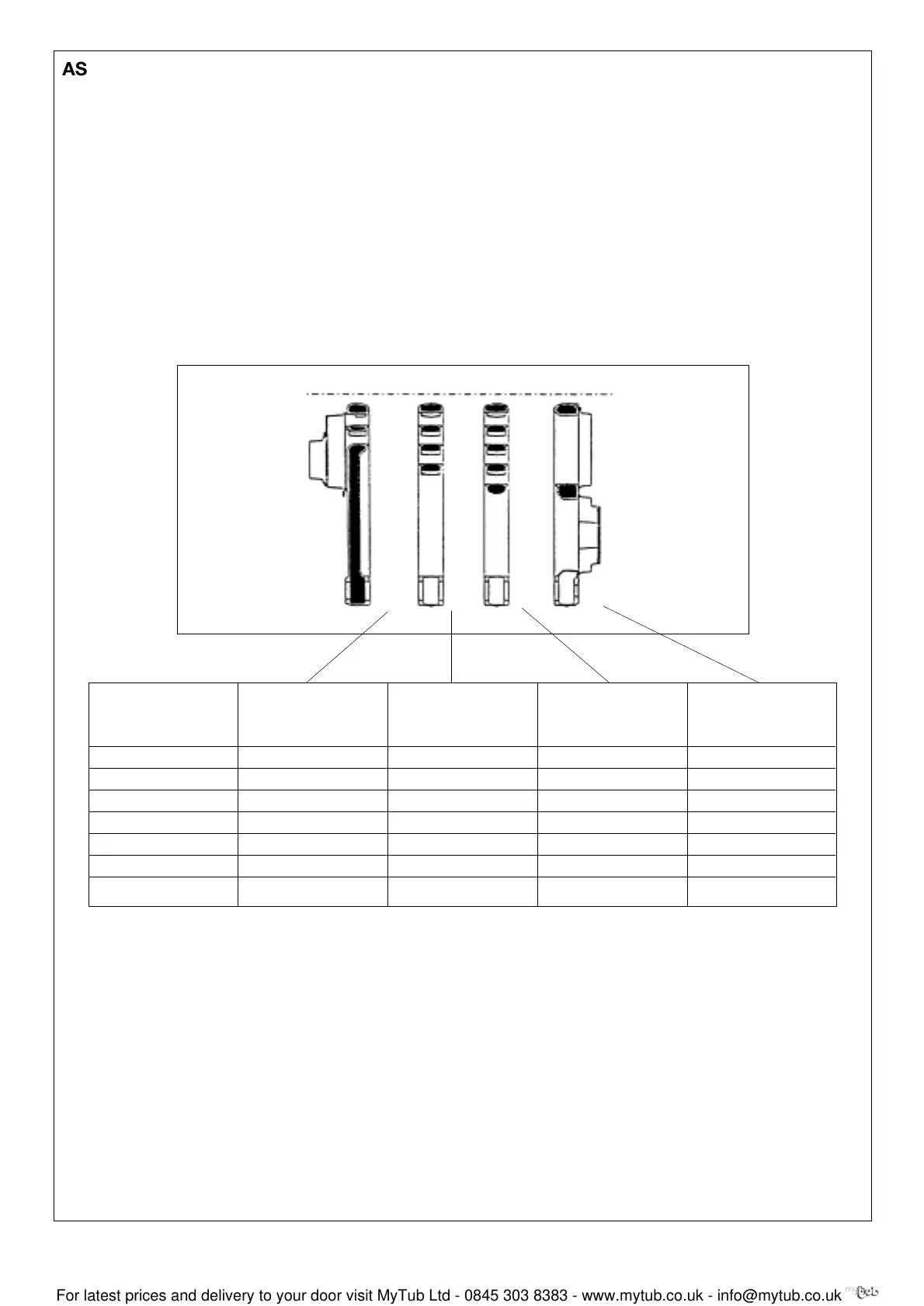

ASSEMBLY
FRONTREAR
Boiler Rear Section Special Normal Front Section
Intermediate Section Intermediate Section
n° 8229-0003 8229-0005 8229-0001 8229-0002
GT 8 1 1 5 1
GT 9 1 1 6 1
GT 10 1 1 7 1
GT 11 1 1 8 1
GT 12 1 1 9 1
GT 13 1 1 10 1
GT 14 1 1 11 1
