34
24
25

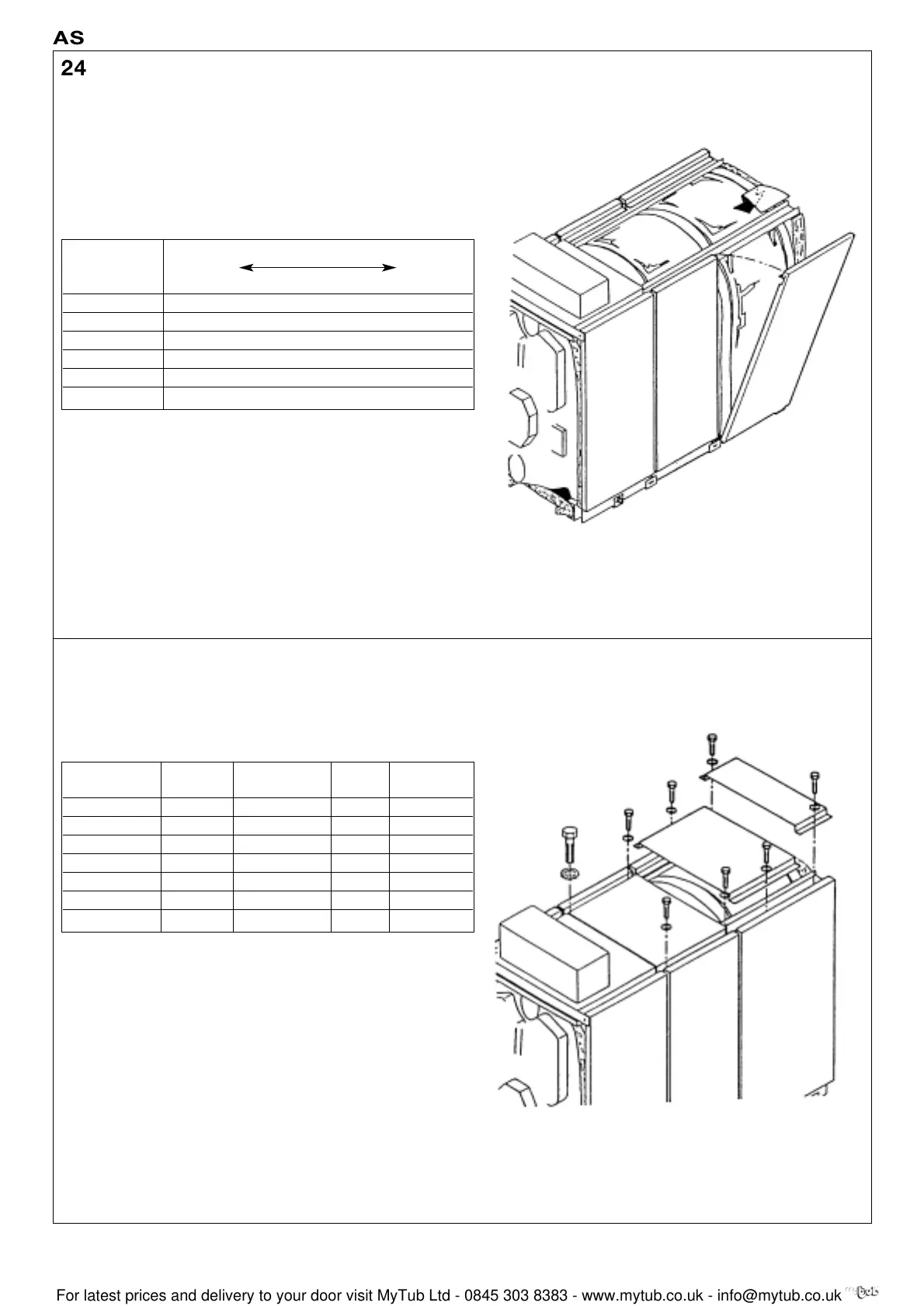

Fit the remaining side panels in the order given in the table:
position each panel in the lower casing supports then attach
it in the wiring duct.
8229-EN-36
Fix the top covers from front to rear in the order given in the
table.
Fix the first intermediate top cover (length 480) onto the
wiring duct using 4 bolts HM 5x12 + lock washers.
Fix the remaining top covers onto the wiring duct using 2
bolts 5x12 + lock washers.
8229-EN-37
Viceroy GT Range - Installation
ASSEMBLY
Boiler Body insulation width
Front Rear
Viceroy GT 8 520(IE10) 930(IE12)
Viceroy GT 9 520(IE10) 480(IE13) 610(IE14)
Viceroy GT 10 520(IE10) 480(IE13) 770(IE11)
Viceroy GT 11 520(IE10) 480(IE13) 930(IE12)
Viceroy GT 12 520(IE10) 480(IE13) 480(IE13) 610(IE14)
Viceroy GT 13 520(IE10) 480(IE13) 480(IE13) 770(IE11)
Viceroy GT 14 520(IE10) 480(IE13) 480(IE13) 930(IE12)
Boiler Front Top
Intermediate Rear
Pack
Panel
Top Panel Top Panel
Viceroy GT 8 480(IE10) 480 490 IE12
Viceroy GT 9 480(IE10) 480 480 170 IE13 + IE14
Viceroy GT 10 480(IE10) 480 480 330 IE11 + IE13
Viceroy GT 11 480(IE10) 480 480 490 IE12 + IE13
Viceroy GT 12 480(IE10) 480 480 480 170 IE14 + IE13
Viceroy GT 13 480(IE10) 480 480 480 330 IE11 + IE13
Viceroy GT 14 480(IE10) 480 480 480 490 IE12 + IE13
