37Viceroy GT Range - Installation

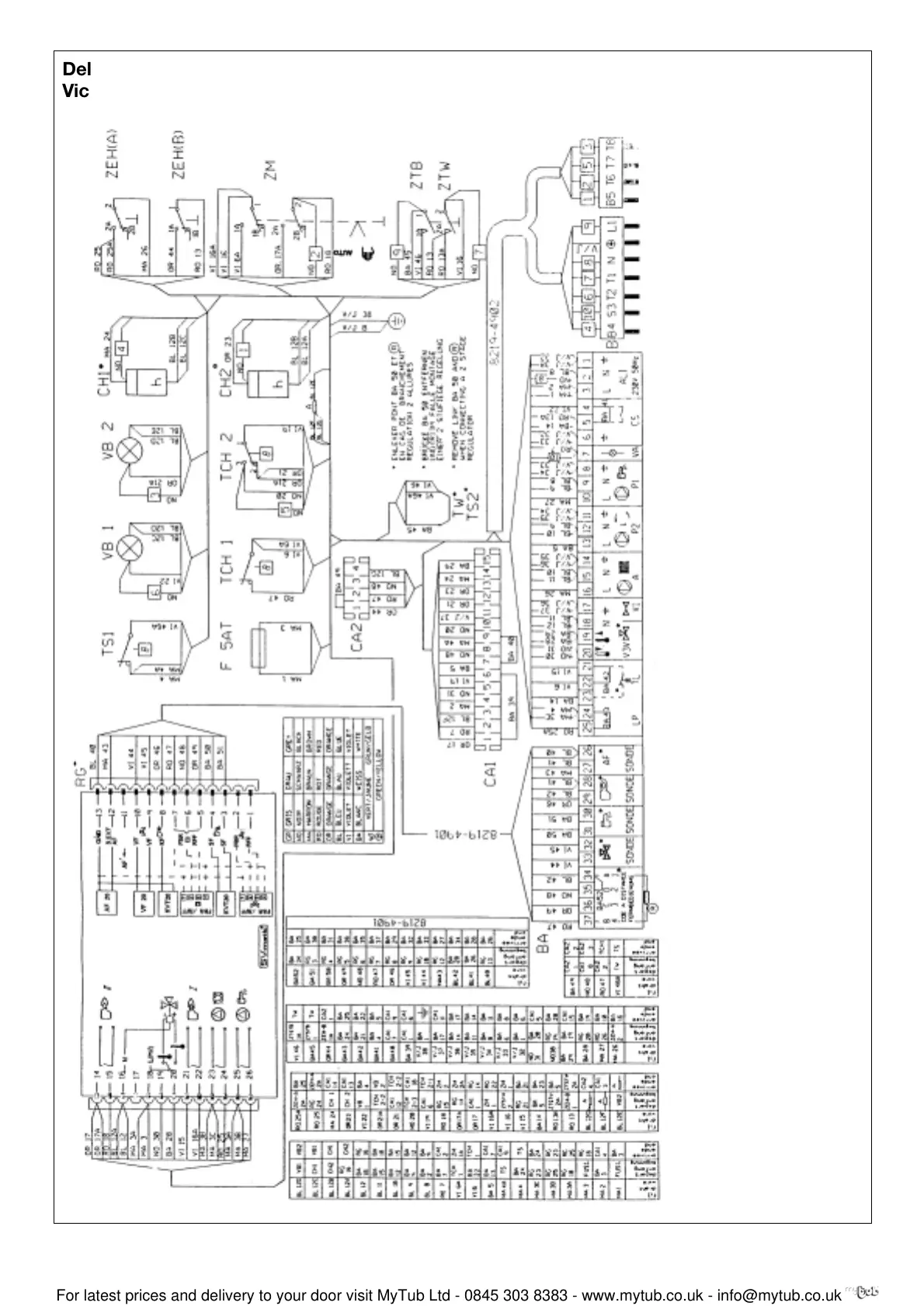

ASSEMBLY
Deluxe Control Panel
Viceroy GT
A Heating Pump
ALI Main Supply
BA Connecting Board
B Burner
CA1 Cascade connection 1
CA2 Cascade connection 2
CH1 Hour run meter 1st stage
CH2 Hour run meter 2nd stage
CS Safety Contact
DE Decoupling
ECS Domestic hot water
F5AT Fuse 5A Delayed
L Phase
LP Pump Logic
N Neutral
P1 Load Pump
P2 Shunt Pump
R Resistance 1430
RG Regulator
TCH1 Boiler Thermostat 1st Stage
TCH2 Boiler Thermostat 2nd Stage
TL Limiter Thermostat
TS1 Safety Thermostat
TS2 Condensor Thermostat
VA Alarm Indicator
VB1 On/off indicator 1st Stage
VB2 On/off indicator 2nd Stage
V3V Three Way Valve
V1 Gate Valve
ZEH(A) Summer-Winter Switch
Heating Pump
ZEH(B) Summer-Winter Switch Burner
Heating Pump
ZM Manual Mode Switch
ZTB Test Switch STB
ZTW Test Switch TW
?Earth
? Optional Delivered
To Next Page
