2: MODULE SPECIFICATIONS
2-8 « FC4A MICROSMART USER’S MANUAL »

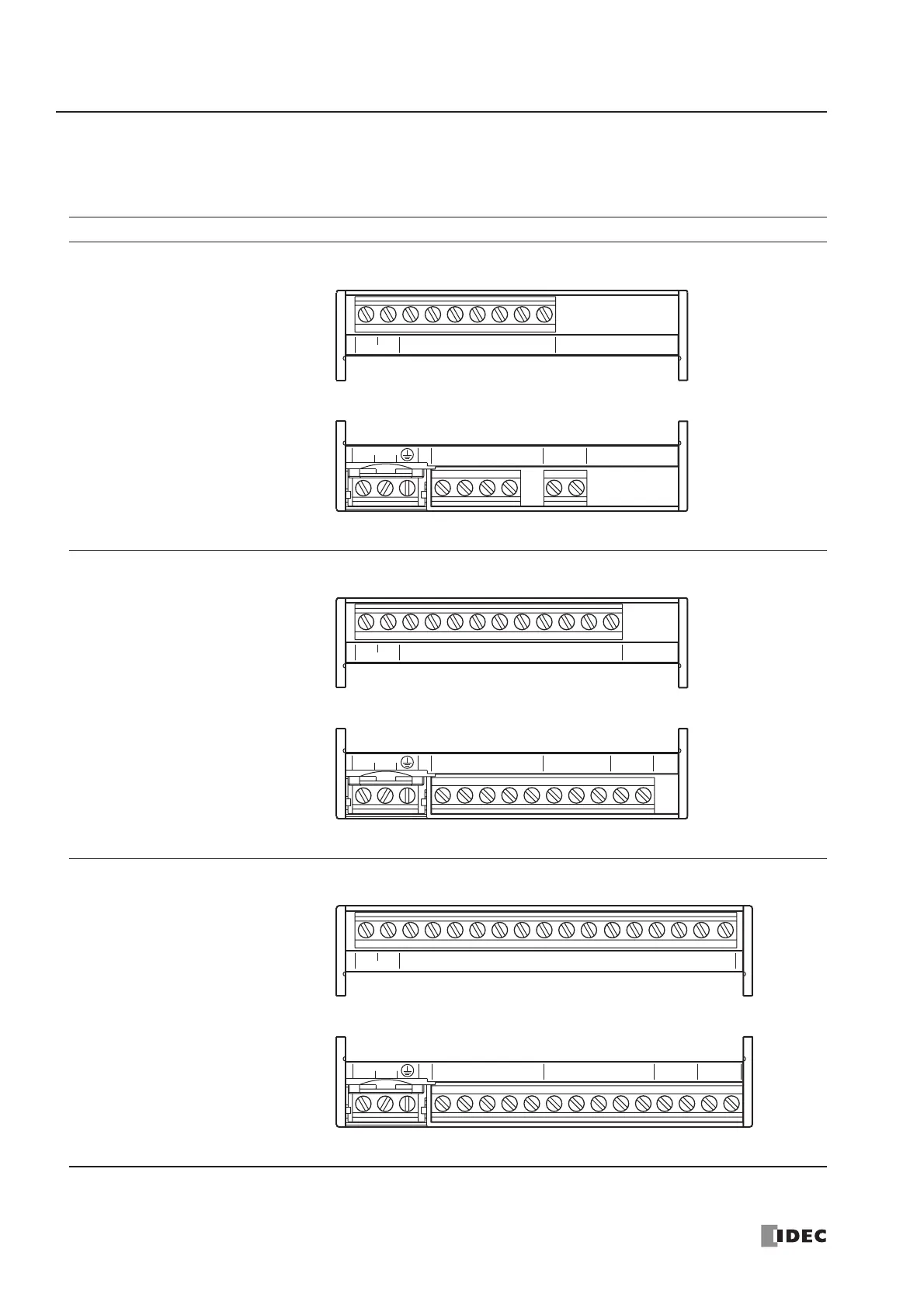

CPU Module Terminal Arrangement (All-in-One Type)
The input and output terminal arrangements of the all-in-one type CPU modules are shown below.
AC Power Type CPU Module
FC4A-C10R2
FC4A-C16R2
FC4A-C24R2
LN
100-240VAC Ry.OUT Ry.OUT
COM0 COM1 30 1 2
+24V 0V
DC OUT COM
DC IN 0 1 2 3 4 5
Sensor Power Terminals
Input Terminals
AC Power Terminals
Output Terminals
+24V 0V 10
DC OUT COM
DC IN 0 1 2 3 4 5 6 7
LN
100-240VAC Ry.OUT
COM0
Ry.OUT
COM1 4 5
Ry.OUT
COM2 60 1 2 3
Sensor Power Terminals
Input Terminals
AC Power Terminals
Output Terminals
+24V 0V 10 11 12 13 14 15
DC OUT COM
DC IN 0 1 2 3 4 5 6 7
LN
100-240VAC Ry.OUT
COM0
Ry.OUT
COM1
Ry.OUT
COM3 11
Ry.OUT
COM2 100 1 2 3 4 5 6 7
Sensor Power Terminals
Input Terminals
AC Power Terminals
Output Terminals
