Chapter 3 Screen Creation
www.IDEC.com/software
Screen Creation

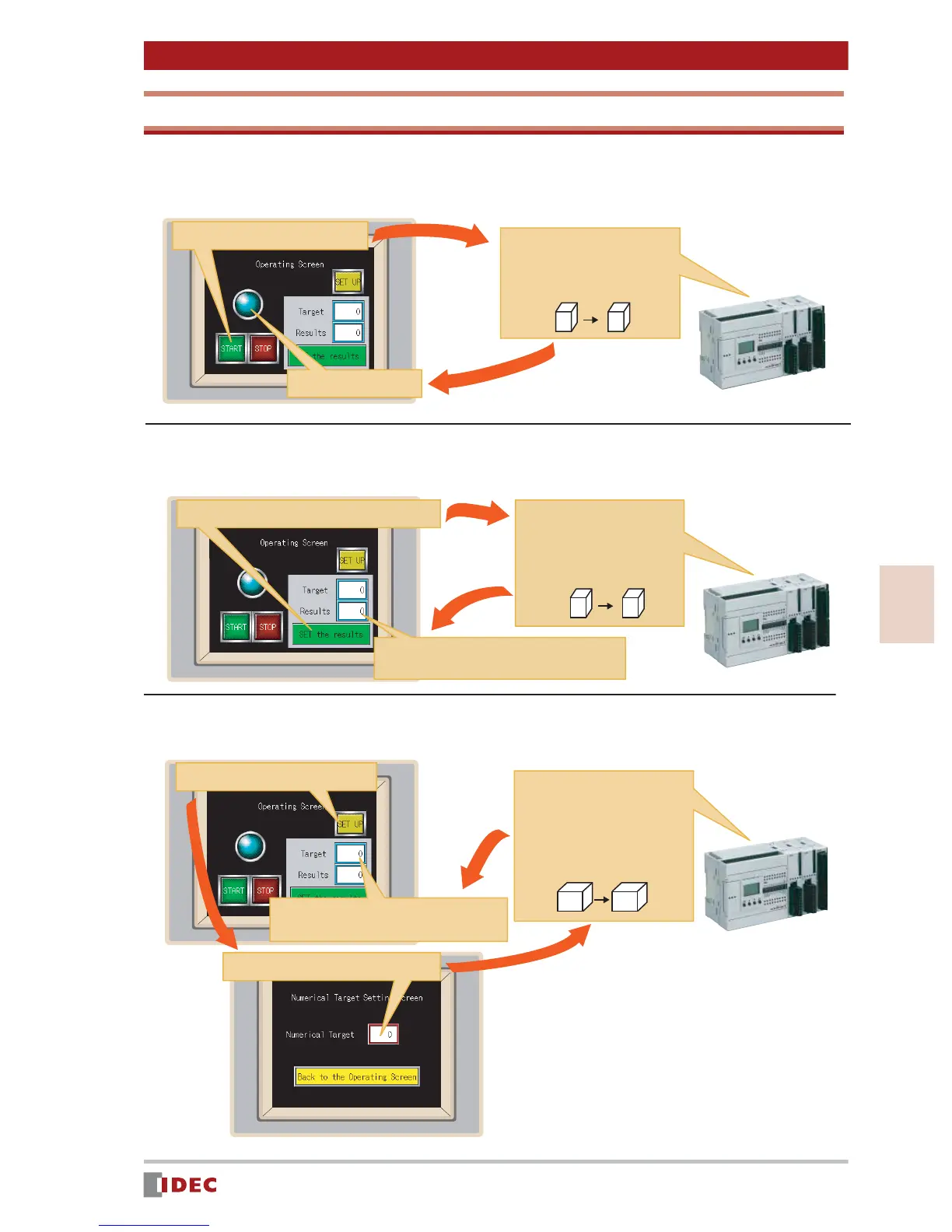

Available Devices and Parts Operation
Each part will be operated with the following devices:
[Q 0]: [START (or [STOP]) button and pilot lamp operation
[D 10]: [INC the results] button and [Results] display
[D 20]: Numerical input field and [Target] display
0 1
1. Press the [START] button.
2. Bit 1 is written in device
[Q 0].
Device
[Q 0]
Device
[Q 0]
3. Pilot Lamp lights up.
0 1
2. The value of device [D 10]
is incremented by one.
Device
[D 10]
Device
[D 10]
1. Press the [SET the results] button.
3. The value of device [D 10] is displayed.
0
10
1. Press the [SET UP] button.
2. Enter a numerical value.
3. The entered
value is written in
device [D 20].
Device
[D 20]
Device
[D 20]
4. The value of device [D 20] is dis-
played.
