Chapter 5 Verify Operation
Verify Operation
www.IDEC.com/software
Verify Operation with the Screen Monitor
The screen monitor allows you to verify actual screen operation and automatically display
all devices being used for the target screen. You can also view the data values or change
the data value of each device used.
If the screen monitor is not dis-
played, click the (Screen
Monitor) icon.

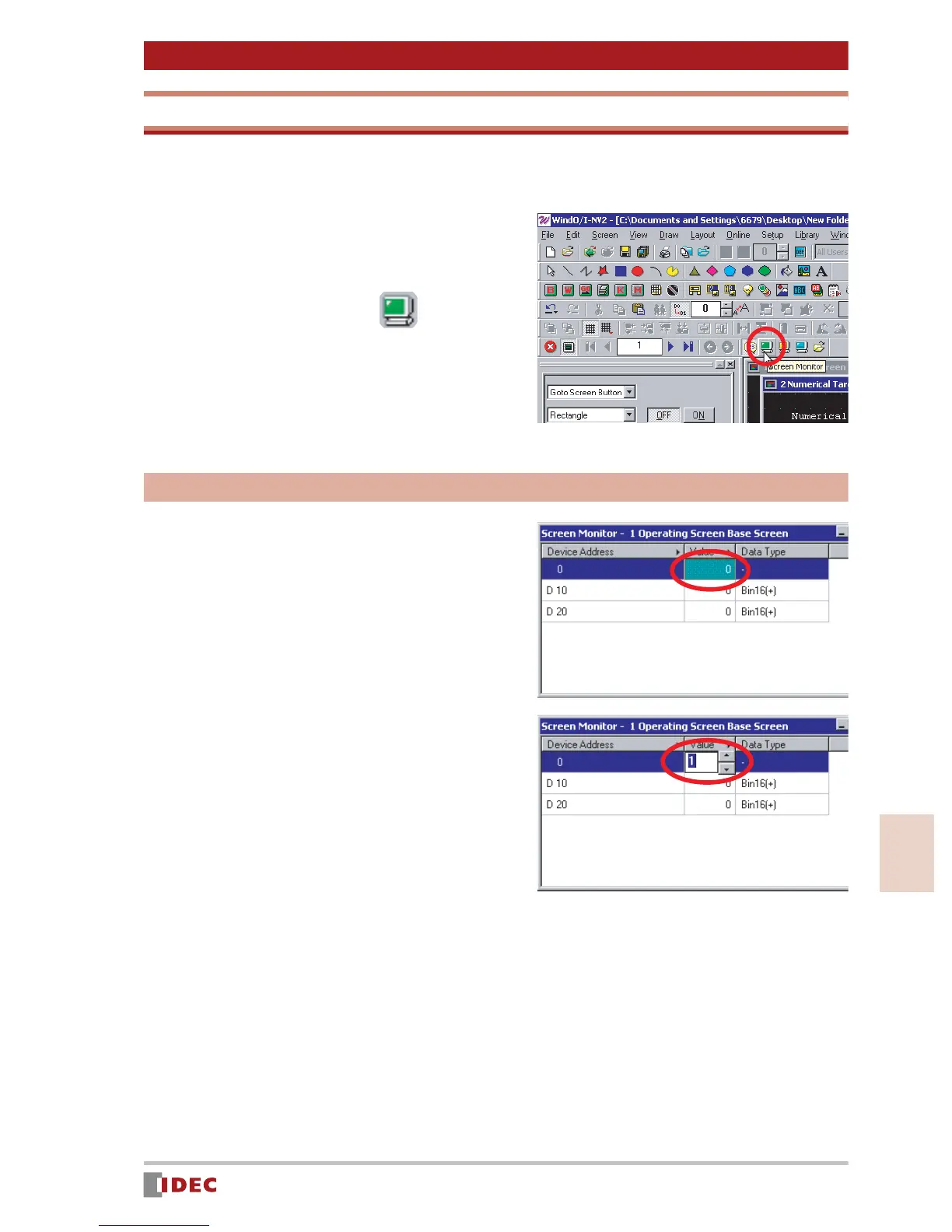

Checking pilot lamp operation on [Operating Screen]
1. Double-click Value for device
address Q 0 .
Up and down buttons are displayed.
2. Click [ ] to set the value to 1 ,
and press [Enter].
The pilot lamp on the Operator Interface
will turn on.
If the pilot lamp does not turn on,
check the device for the lamp.
(Refer to "Pilot Lamp" on page 18.)
Q
Q
