Chapter 5 Verify Operation
40
www.IDEC.com/software
Verifying [Target] and [Results] Values on [Operating Screen]

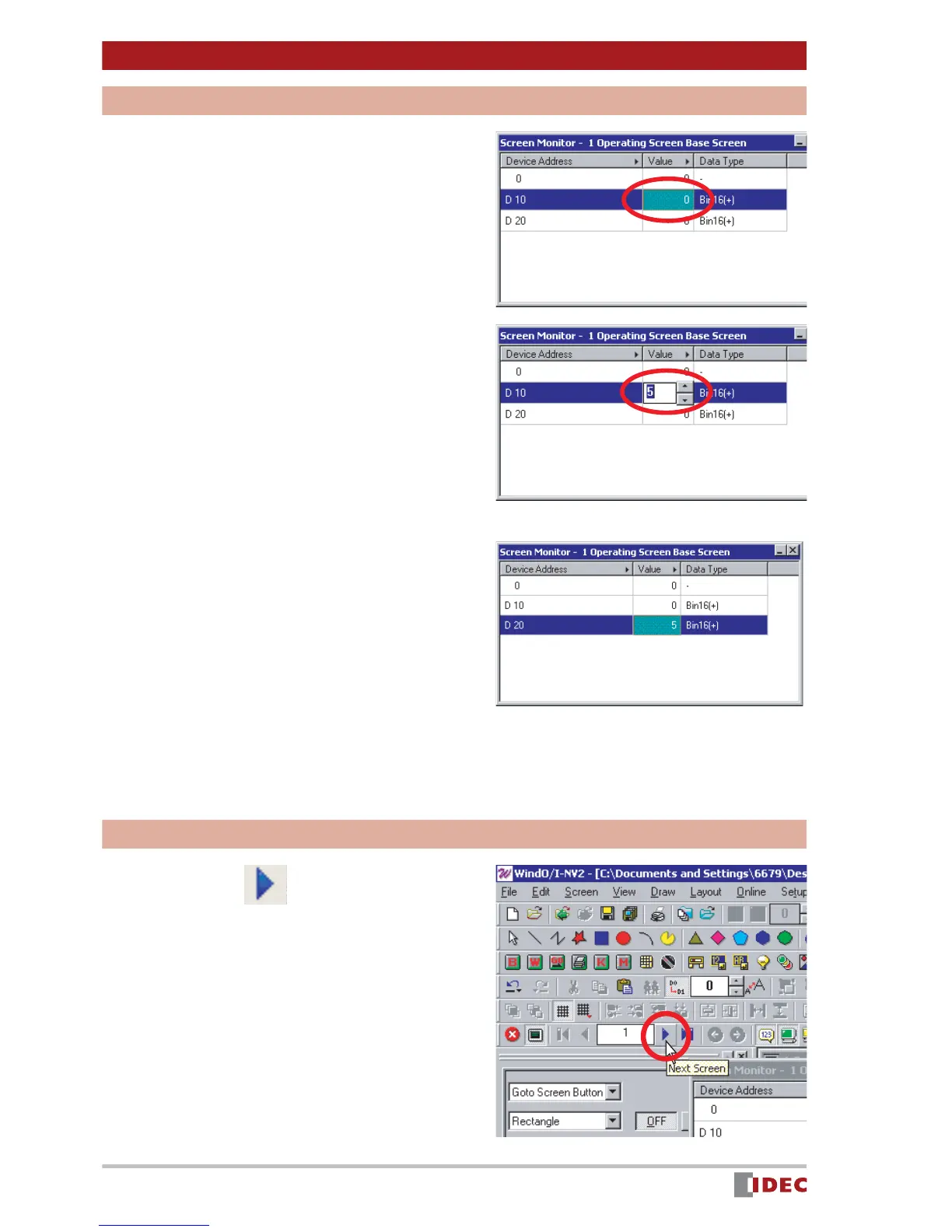

1. Double-click the Value cell for
device address D 10 .
Up and down buttons are displayed.
2. Click [ ] to set the value and
press [Enter].
In this example, the value is set to 5 .
The value will be displayed in the [Tar-
get] numerical display on the Operator
Interface.
3. Repeat Steps 1 and 2 to check
device address D 20 .
The value will be displayed in the
[Results] display on the Operator Inter-
face.
If the value is not shown in each numerical display, check the device for
the numerical display [Target] or [Results] .
(Refer to "[Target] & [Results] Displays" on page 22.)
Verifying [Numerical Target] on [Numerical Target Setting Screen]
1. Click (Next Screen) button.
[Screen Monitor - 2 Numerical Target
Setting Screen Base Screen] appears.
The [Numerical Target Setting Screen] is
displayed on the Operator Interface.
