Installation

HR9Z-B2192 8/2020

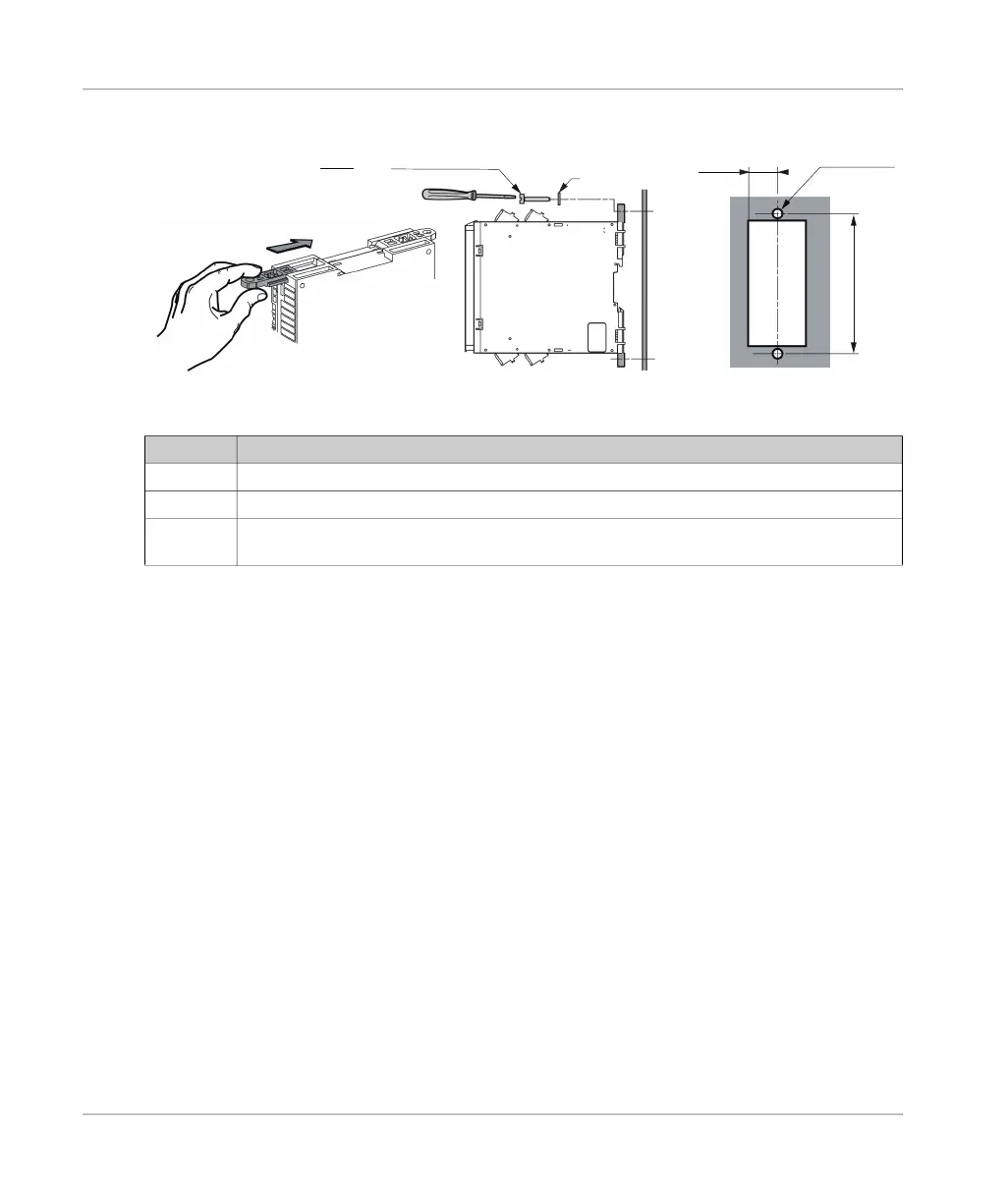

Screw-Mounting

Mounting procedure:

Step Action

1 Push the additional fastener into the grooves at the device.

2 Prepare the holes on the mounting surface.

3 Screw the device to the mounting surface using the specified screws and a washer M4 as per

ISO 7093 for each screw.

113

4 45

11.25

0.44

2 x Φ 4.3

2 x Φ 0.17

in.

M4 (ISO 7093)

M4 x 12 / 16

M4 x 0.47 / 0.63
