IDEC HR6S-AF - Mechanical Characteristics

Technical Data
24
HR9Z-B2192 8/2020

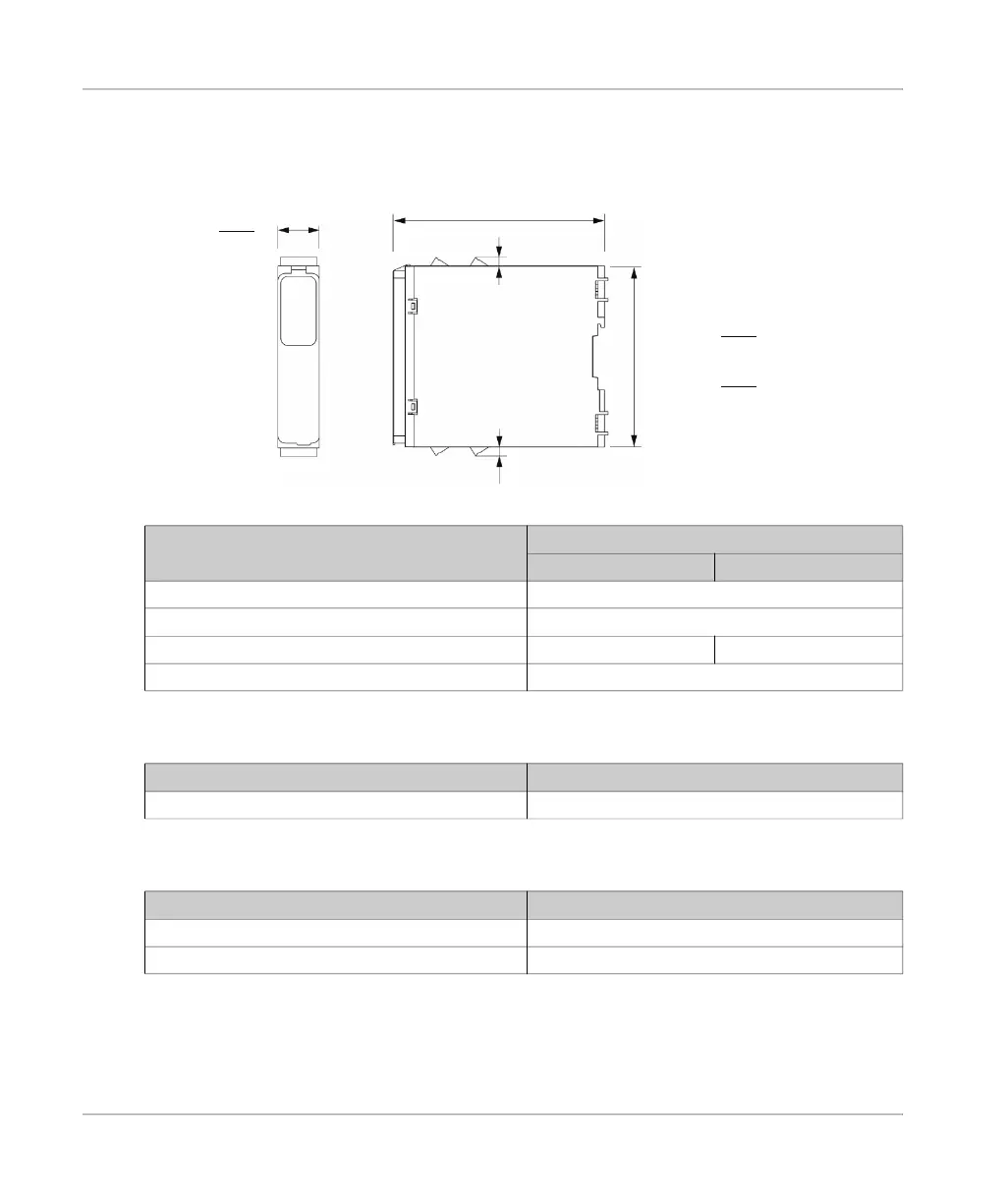

Mechanical Characteristics
Dimensions
Weight
Degree Of Protection
Characteristic Value
HR6S-AF1C HR6S-AF1P
Width 22.5 mm (0.89 in)
Height without terminals 99 mm (3.9 in)
Height with terminals 119 mm (4.7 in) 109 mm (4.3 in)
Depth 117 mm (4.61 in)
mm
in.
22.5
0.89
117
4.61
a: *C max.
10
0.39
a: *P max.
5
0.2
99
3.9
a a
Characteristic Value
Weight 0.2 kg (0.44 lbs)
Characteristic Value
Housing IP40
Terminals IP20
