IDEC MICROSmart FC6A-C24R1CE Ladder Programming Manual

FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726 8-1

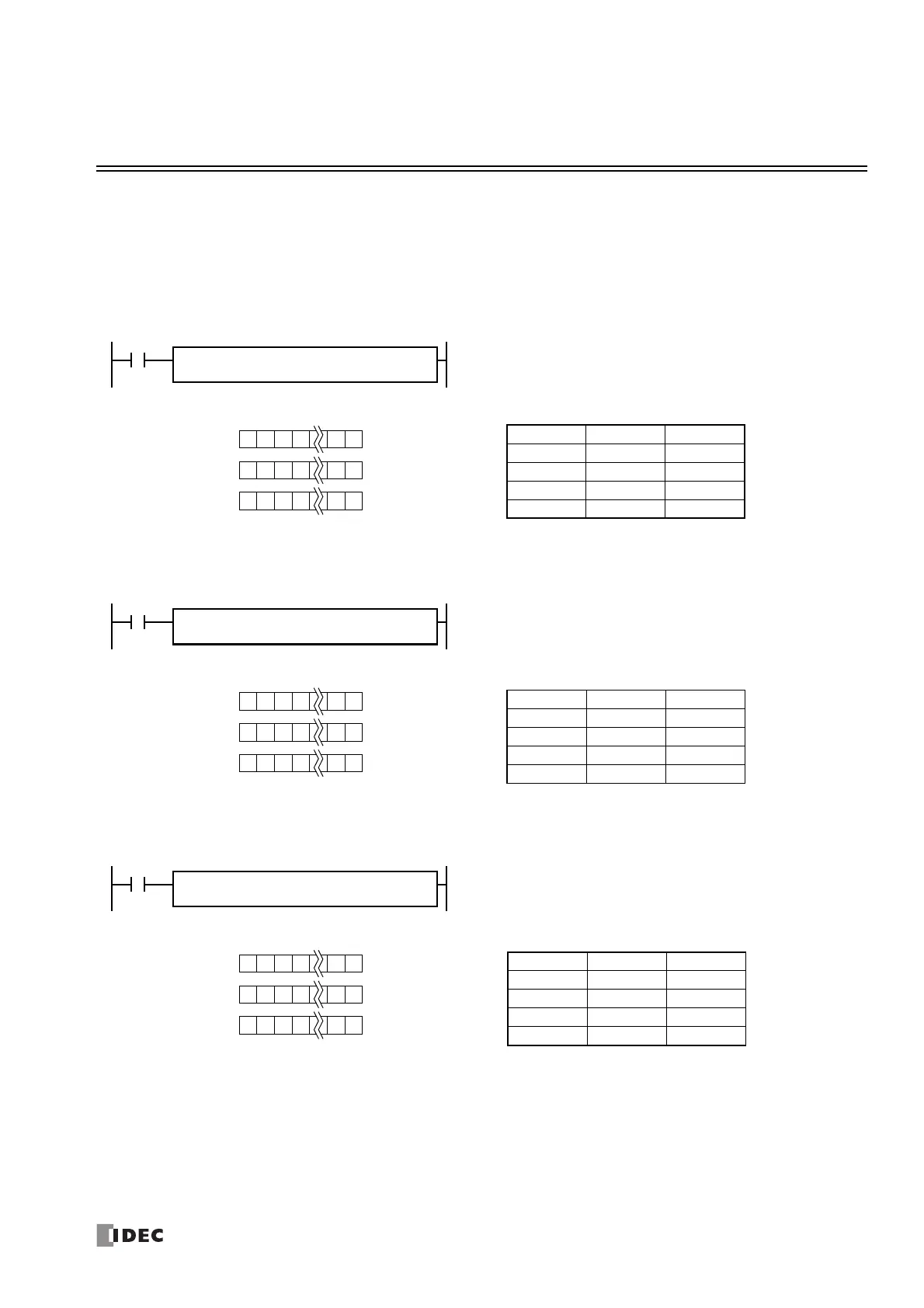

8: BOOLEAN COMPUTATION INSTRUCTIONS
Introduction
Boolean computations use the AND, OR, and exclusive OR statements as carried out by the ANDW, ORW, and XORW instructions in
the word or double-word data, respectively.
ANDW (AND Word)
ORW (OR Word)
XORW (Exclusive OR Word)
S1
·
S2 → D1
When input is on, 16- or 32-bit data assigned by source devices S1 and S2
are ANDed, bit by bit. The result is set to destination device D1.
S1 = 1 1 1001
S2 =
1 0 1100
D1 =
1 0 1000
REP
**
S1(R)
*****
D1(R)
*****
ANDW(*) S2(R)
*****
AND Truth Table
S1 S2 D1
000
010
100
111
S1 + S2 → D1
When input is on, 16- or 32-bit data assigned by source devices S1 and S2
are ORed, bit by bit. The result is set to destination device D1.
S1 = 1 1 1001
S2 =
1 0 1100
D1 =
1 1 1101
REP
**
S1(R)
*****
D1(R)
*****
ORW(*) S2(R)
*****
AND Truth Table
S1 S2 D1
000
011
101
111
S1 S2 → D1
When input is on, 16- or 32-bit data assigned by source devices S1 and S2
are exclusive ORed, bit by bit. The result is set to destination device D1.
⊕
S1 = 1 1 1001
S2 =
1 0 1100
D1 =
0 1 0101
REP
**
S1(R)
*****
D1(R)
*****
XORW(*) S2(R)
*****
AND Truth Table
S1 S2 D1
000
011
101
110
