FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726 11-11

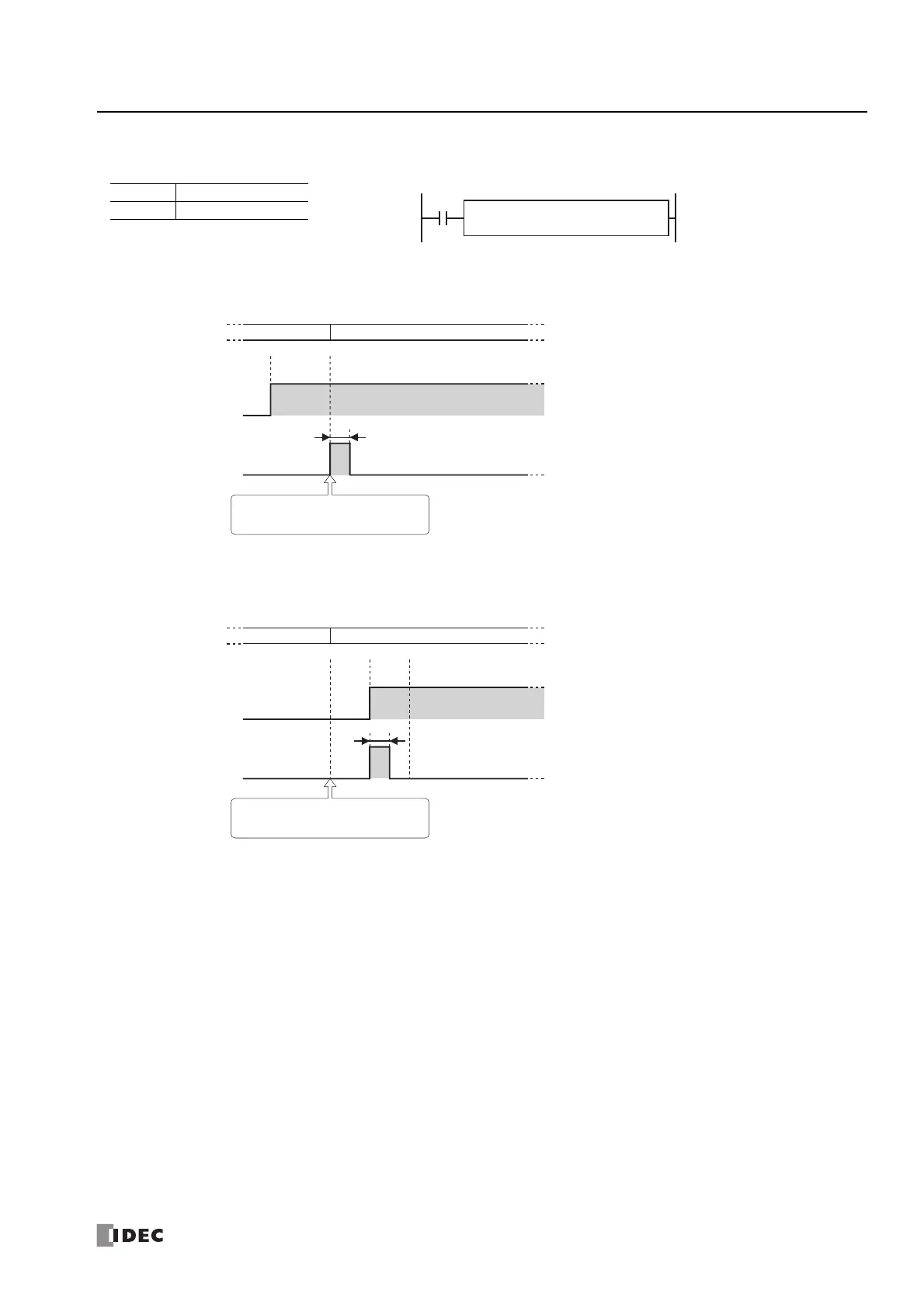

11: W EEK P ROGRAMMER I NSTRUCTIONS
■ When pulse output is enabled
[When the input turns on before the day of the week and time specified by the ON settings]
On Sunday at 0:00, input M0000 is on, so output Q0 turns on for one scan only on Sunday at 0:00.
[When the input turns on during the day of the week and time specified by the ON settings]
On Sunday at 0:00:30 (between Sunday 0:00:00 and 0:00:59), when input M0000 changes from off to on, output Q1 turns on
for one scan only.
Setting details
ON settings Sunday 0:00
Output Q0
D1
Q0000
S2WEEK S1 S3
1
M0000
1 scan
ON
OFF
ON
OFF
0:006:00
Saturday Sunday
Output Q0
Day of the week
Time
ON settings Day of the week : Sunday
Time : 0:00
Input M0000
1 scan
Saturday Sunday
ON
OFF
Output Q0
Day of the week
Time
ON settings Day of the week : Sunday
Time : 0:00
ON
OFF
Input M0000
0:00:590:00:300:00:00
