IDEC MICROSmart FC6A-C24R1CE - Page 244

11: W EEK P ROGRAMMER I NSTRUCTIONS
11-28 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726

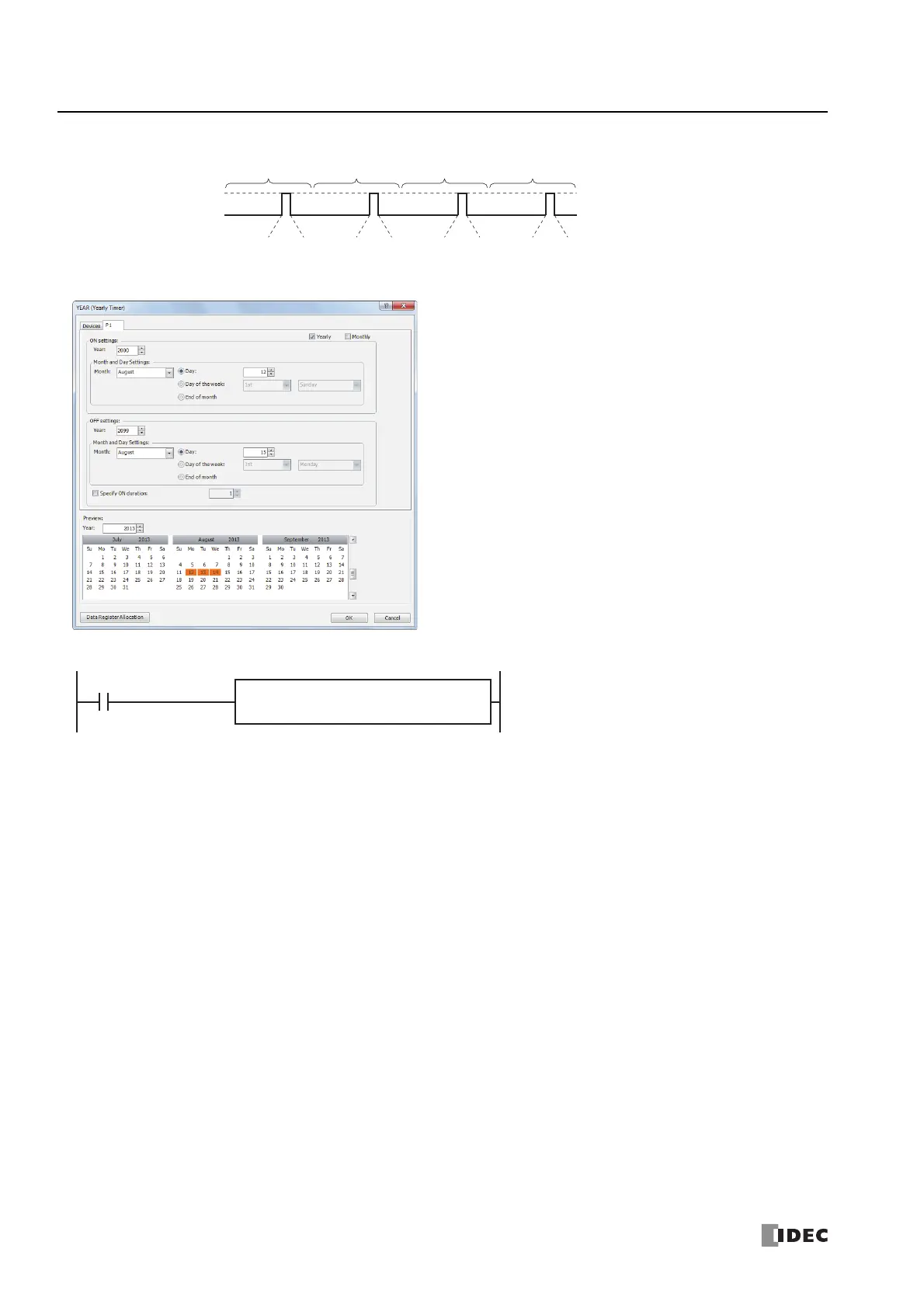

[To turn on output Q0 from 0:00 on August 12 to 0:00 on August 15 every year]
Parameter tab
Configure the tab as shown above and set D1 to Q0.
ON
OFF
***
2009 2010 2011 2012
***
8/12 8/15
8/12 8/15 8/12 8/15 8/12 8/15
ON date : 2000/08/12
OFF date : 2099/08/15
Yearly : ON
Monthly : OFF
D1
Q0
S2YEAR S1 S3
1
M8125
