12: D ISPLAY I NSTRUCTIONS
12-6 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726

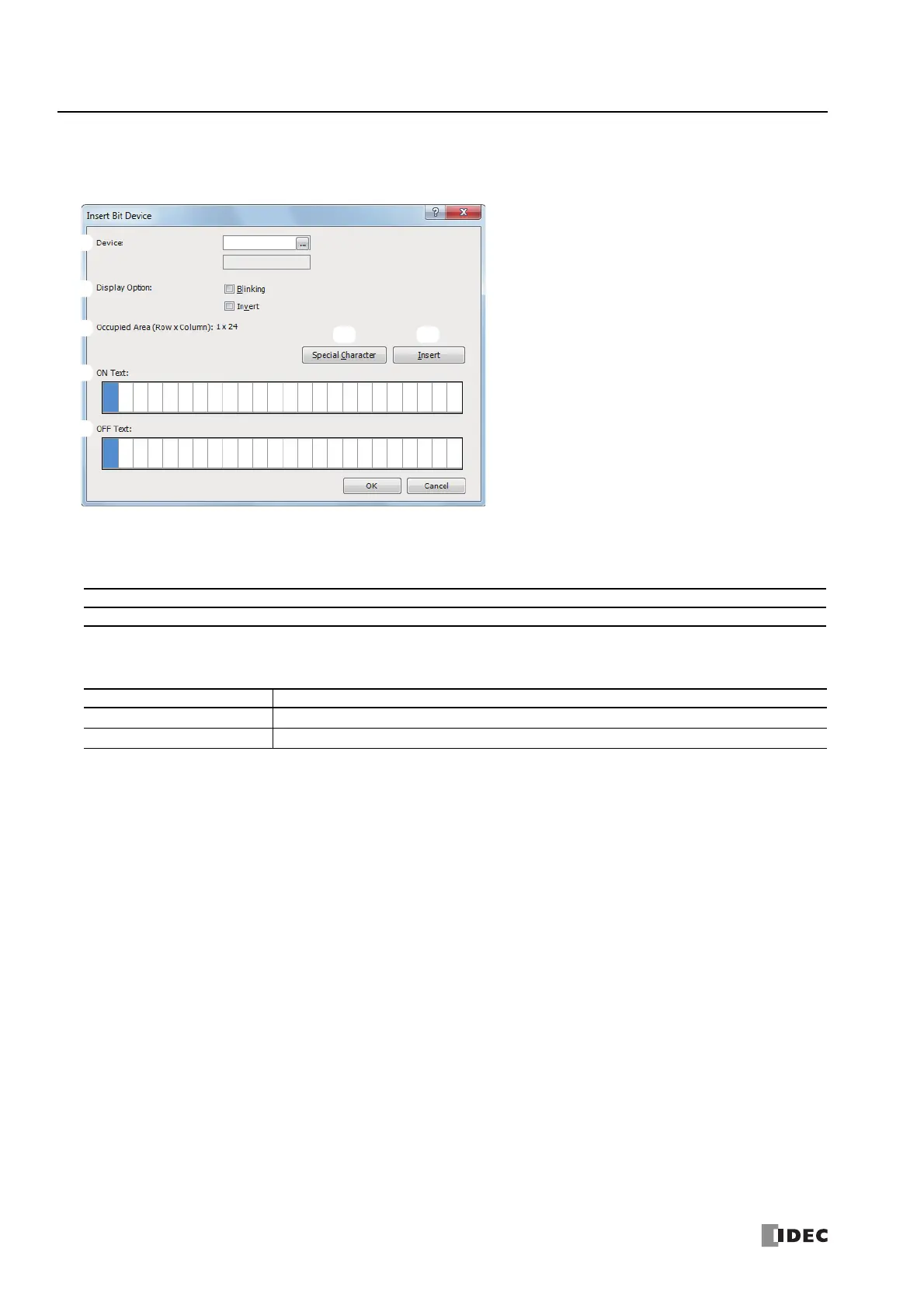

Insert Bit Device
Two different items of text can be switched between and displayed on the HMI module LCD according to the value of the specified
bit device (when on/when off).
1. Device
Enter the device to display.
Valid Devices
2. Display Option
Configure the options to blink or invert the text. For the blinking speed, see "MSG Instruction Common Settings" on page 12-9.
3. Occupied Area
Shows the size of the area to be used on the LCD display (rows: 1, columns: 1 to 24). The display size is determined by the
selected range on the LCD display area (or work area). If multiple rows are selected, the area at the top line in the selected
range is used.
4. ON Text
Enter the text to display when the specified device is on. Up to 24 single-byte characters can be entered. A space is also counted
as one character.
5. OFF Text
Enter the text to display when the specified device is off. Up to 24 single-byte characters can be entered. A space is also counted
as one character.
6. Special Character
Enters a special character at the cursor position. Select the character to enter on the special characters list window popped up
when Special Character is pressed. For the special characters, see "8. Special Character" on page 12-3.
7. Insert/Overwrite
Selects whether to insert or overwrite characters when entering new characters.
IQMRTCDP
XXXXXX——
Display Option Description
Blinking
Blinks the specified text.
Invert
Inverts the display of the specified text.
