Configuring the bar graph

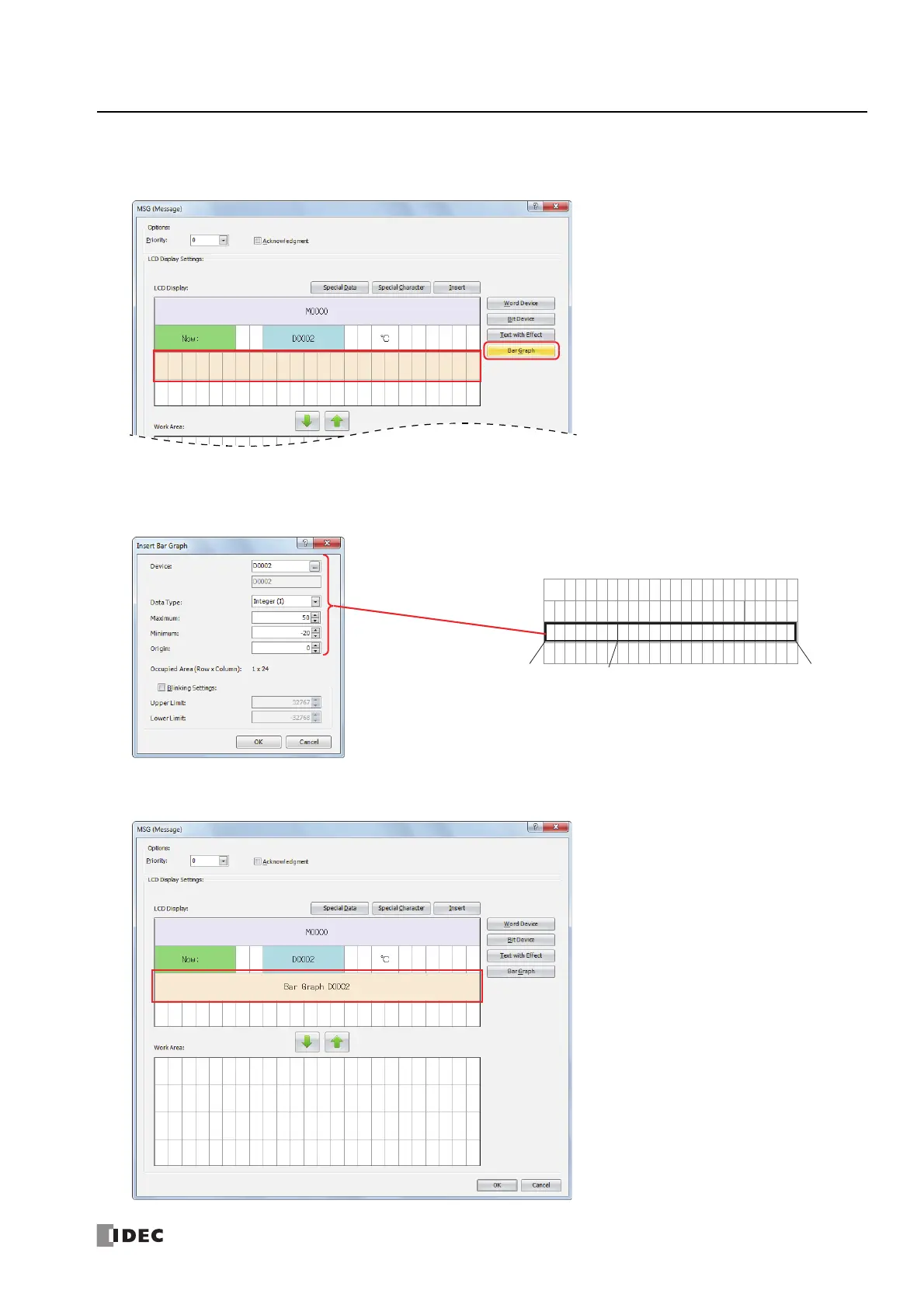

13. Select the entire area on the third line and click Bar Graph.
The Insert Bar Graph popup window is displayed.
14. Set Device to "D0002", Data Type to "Integer (I)", Max to "50", Min to "-20", and Origin to "0".
Disable the blinking settings.
15. After the settings are configured, click OK.
The configured content is displayed on the LCD screen area.
IDEC room temp is
Now:
28°C
Min
Origin
Max
