12: D ISPLAY I NSTRUCTIONS
[Character Set: European, Scroll speed: 500 ms, Scroll unit: 1-dot]

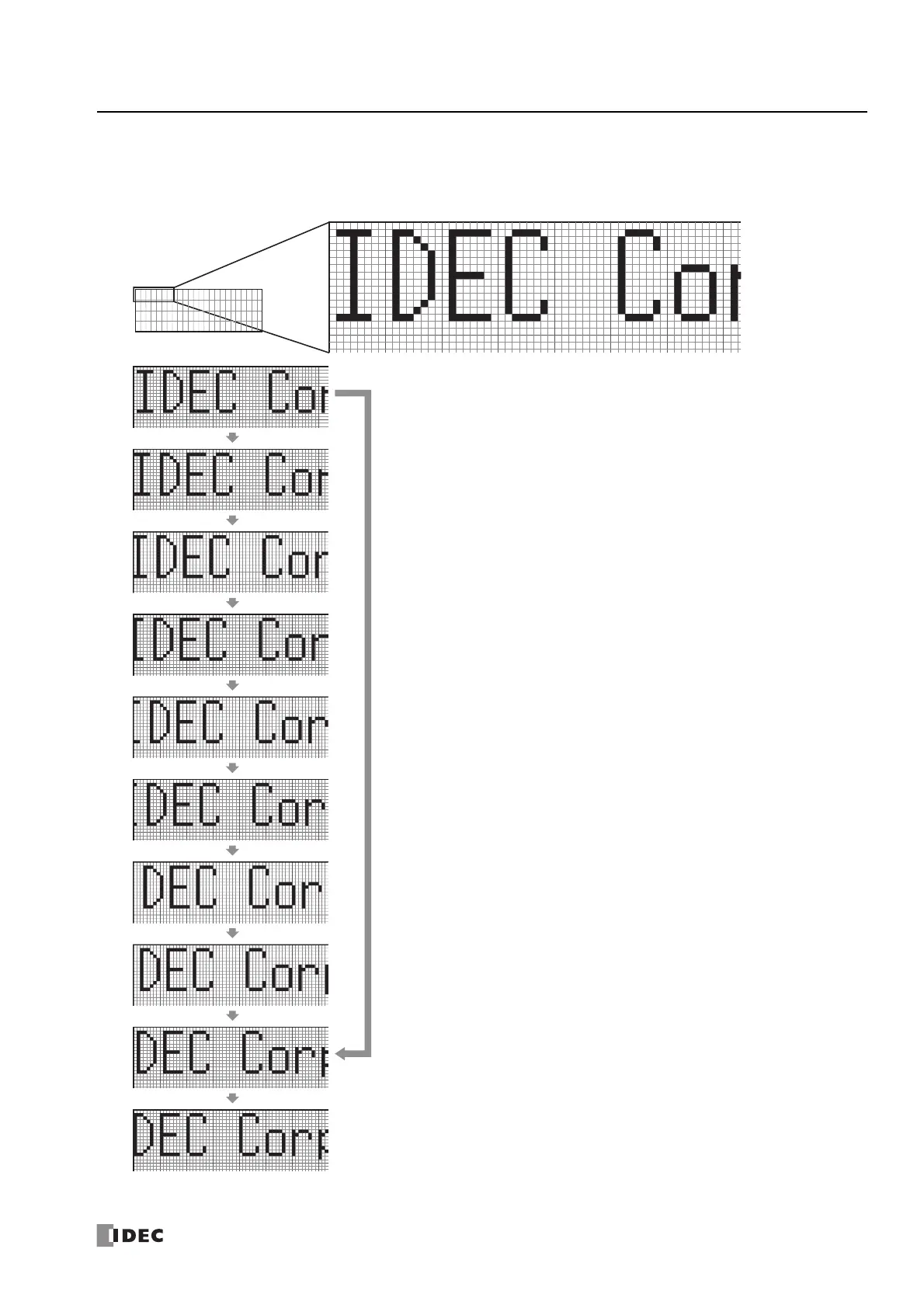

When a text with effect is set to scroll, the text is displayed on the LCD of the HMI module as follows.
Text : "IDE C Cor porat ion"
62.5 msec
62.5 msec
62.5 msec
62.5 msec
62.5 msec
62.5 msec
62.5 msec
62.5 msec
1 character (8 dots) is scrolled in 500 ms
