12: D ISPLAY I NSTRUCTIONS
Operation Example
The following example demonstrates a program where digital switches (IDEC DFBN-031D-B) have been connected to the 16-I/O
type transistor sink output module and those setting values are read into D0010.

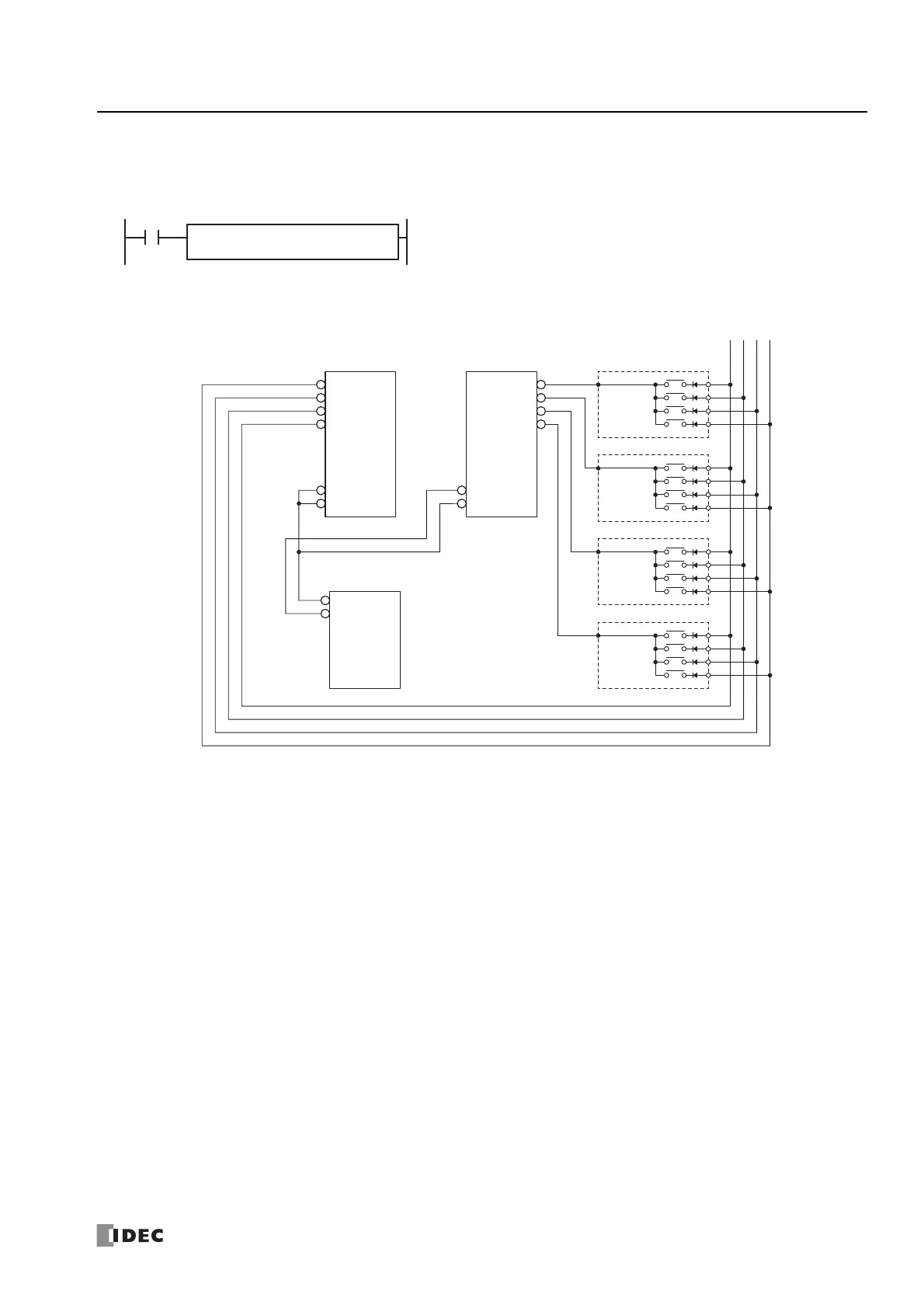

I/O Wiring Diagram
When input I5 is on, the 4-digit value from BCD digital switches is read to
data register D10.
I
I30
Q
Q30
D1
D10
DGRD
BCD4
Q30
Q31
Q32
Q33
Q34
Q35
Q36
Q37
16-point Transistor
Sink Output
(FC6A-T16K3)
I30
I31
I32
I33
I34
I35
I36
I37
COM
COM
8-point DC Input
(FC6A-N08B1)
COM(–)
+
V
(+)
(–)
24V DC
Power
Supply
10
0
Digital Switches
10
1
10
2
10
3
8
4
2
1
8
4
2
1
8
4
2
1
8
4
2
1
C
C
C
C
